STC52A-24HN - Scag Tiger Cub 52" Zero-Turn Mower, 24hp Honda (SN: 9300001 - 9309999) Hydraulic Pump Assembly Parts Diagram

Tiger Cub 52" Zero-Turn Mower, 24hp Honda

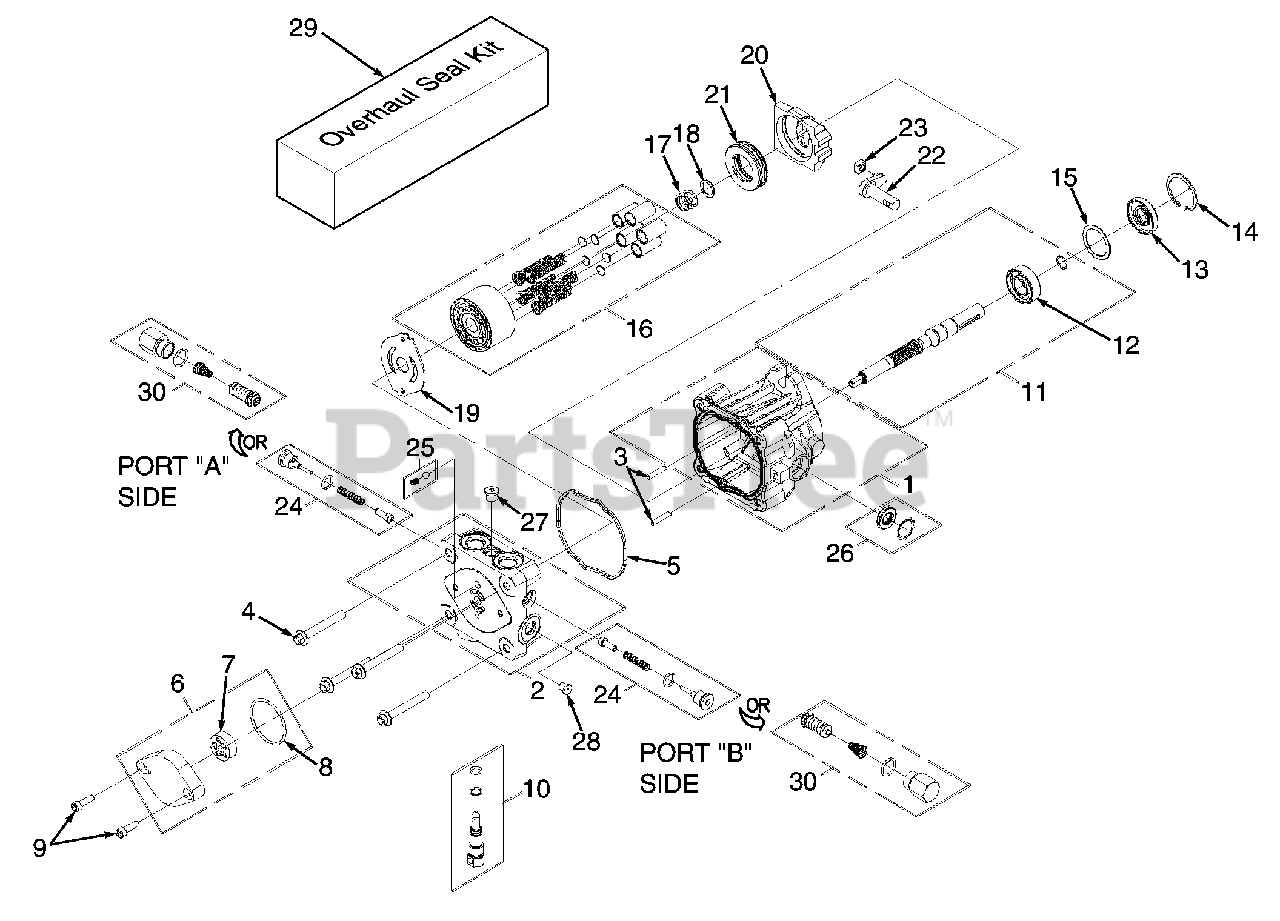

Hydraulic Pump Assembly Parts Diagram

  • Title

1

Scag HG70516

Housing Kit

$151.99

$

Usually ships in 2-12 days

0

2

Scag HG70573

End Cap Kit
(Superseded to HG70517)

$300.99

$

In Stock, only 1 left!

0

3

Scag HG50641

Straight Headless Pin

$

$

Not available

4

Scag HG50969

Hex Flange Bolt, M8-1.25 x 60mm

$5.49

$

Usually ships in 2-12 days

0

5

Scag HG51232

Housing O-Ring
(Superseded to HG54022)

$8.99

$

In Stock, only 2 left!

0

6

Scag HG2513027

Charge Pump Kit

$159.99

$

Usually ships in 2-12 days

0

7

Scag HG50273

Gerotor Assembly

$

$

Not available

8

Scag HG9004101-1340

O-Ring

$2.49

$

In Stock, only 2 left!

0

9

Scag HG50095

Socket Head Screw, M6 x 1.0-20mm

$

$

Not available

10

Scag HG2513030

Bypass Valve Kit

$43.99

$

Usually ships in 2-12 days

0

11

Scag HG70521

Pumpshaft Kit

$184.99

$

In Stock, only 1 left!

0

12

Scag HG50315

Ball Bearing, 17 x 40 x 12
(Superseded to 483948)

$24.99

$

In Stock, only 1 left!

0

13

Scag HG51161

Lip Seal

$9.99

$

Usually ships in 2-12 days

0

14

Scag HG50329

Retaining Ring

$5.49

$

Usually ships in 2-12 days

0

15

Scag HG50951

Spacer

$3.99

$

Usually ships in 2-12 days

0

16

Scag HG70331

Cylinder Block Kit

$108.99

$

Usually ships in 2-12 days

0

17

Scag HG2003014

Block Spring

$

$

Not available

18

Scag HG2003017

Block Thrust Washer

$

$

Not available

19

Scag HG51444

Valve Plate

$55.99

$

Usually ships in 2-12 days

0

20

Scag HG2003087

Swash Plate

$

$

Not available

21

Scag HG50551

Ball Thrust Bearing

$24.99

$

Usually ships in 2-12 days

0

22

Scag HG2003005

Trunnion Arm

$

$

Not available

23

Scag HG2000015

Slot Guide

$7.49

$

Usually ships in 2-12 days

0

24

Scag HG2510062

Check Valve Kit (.024" Orfice) port "A" on Left Hand Pump, port "B" on Right Hand Pump

$38.99

$

In Stock, only 2 left!

0

25

Scag HG70403

Charge Relief Kit

$8.99

$

Usually ships in 2-12 days

0

26

Scag HG2513043

Trunnion Seal with Retainer

$12.99

$

In Stock, only 1 left!

0

27

Scag HG9005110-4400

Straight Thread Plug

$

$

Not available

28

Scag HG50408

Straight Headless Pin

$

$

Not available

29

Scag HG70525

Overhaul Seal Kit

$67.99

$

Usually ships in 2-12 days

0

30

Scag HG70589

System Check Relief Kit, port "B" on Left Hand Pump, port "A" on Right Hand Pump

$

$

Not available
