STC48V-23CV - Scag Tiger Cub 48" Zero-Turn Mower, 23hp Kohler (SN: D6800001 - D6899999) STC Roll-Over Protection System Parts Diagram

Tiger Cub 48" Zero-Turn Mower, 23hp Kohler

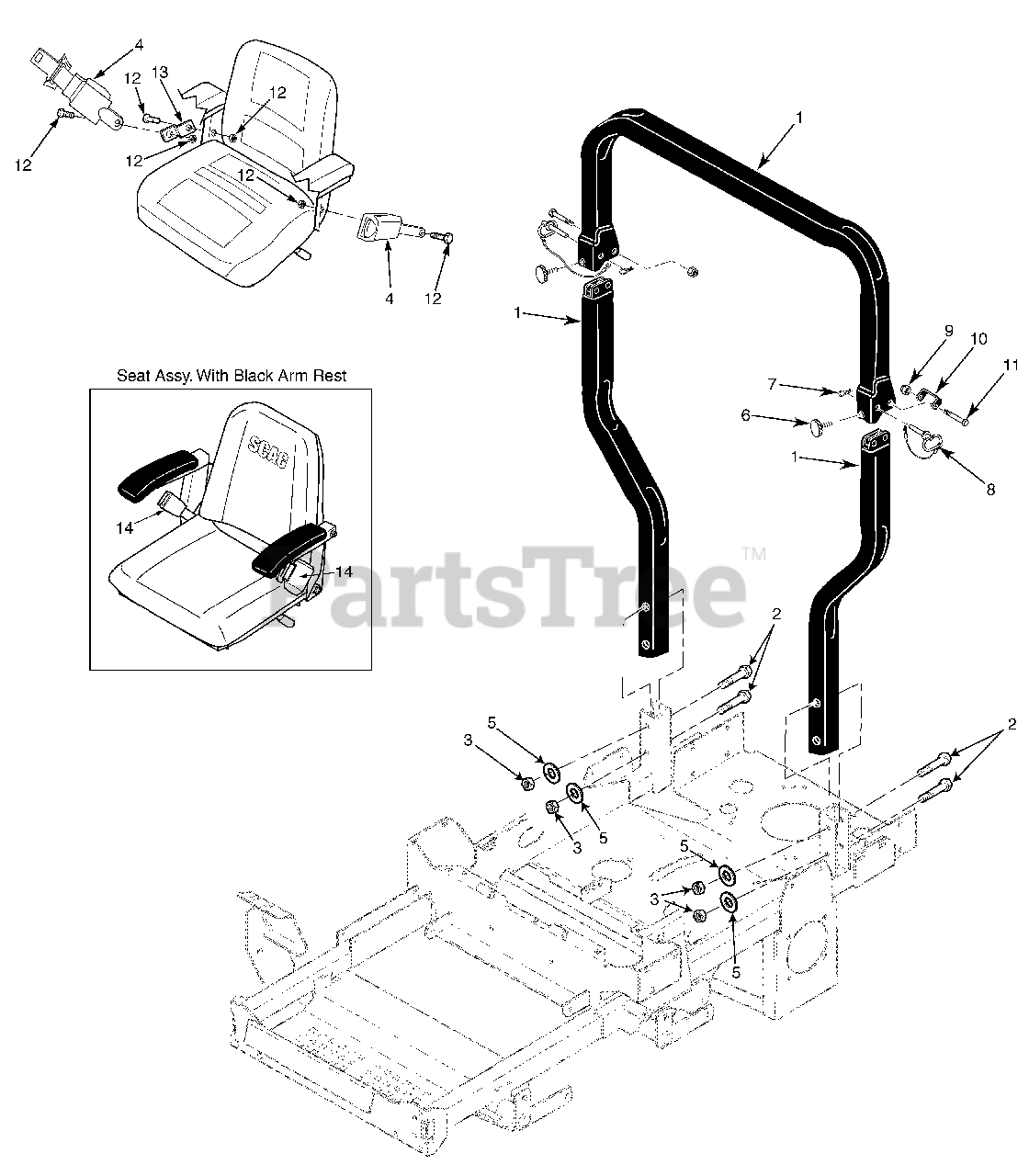

STC Roll-Over Protection System Parts Diagram

  • Title

1

Scag 9512

STC Foldable ROPS Accessory

Note: incl. all items listed

$407.99

$

Usually ships in 2-12 days

0

2

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 4 left!

0

3

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 6

0

4

Scag 483412

Retractable Seat Belt
(Superseded to 485164)

$234.99

$

Usually ships in 2-12 days

0

5

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

6

Scag 481625-03

Thumb Screw, 5/16-18 NC x 3/4"
(Superseded to 483301)

$8.49

$

Usually ships in 2-12 days

0

7

Scag 04062-06

Hair Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

8

Scag 483262

Pin
(Superseded to 484168)

$28.99

$

In Stock, only 2 left!

0

9

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 6

0

10

Scag 424407

Bracket, Stop

$33.99

$

In Stock, only 1 left!

0

11

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 4 left!

0

12

Scag 461990

Seat Hardware Kit, STC

$29.99

$

Usually ships in 2-12 days

0

13

Scag 483451

Bracket

$18.99

$

Usually ships in 2-12 days

0

14

Scag 483412

Retractable Seat Belt
(Superseded to 485164)

Note: (Seat with Black Arm Rest)

$234.99

$

Usually ships in 2-12 days

0

Scag 461990

Hardware Package, Seat Belt Mounting

$29.99

$

Usually ships in 2-12 days

0
