STC48V-23CV - Scag Tiger Cub 48" Zero-Turn Mower, 23hp Kohler (SN: C6200001 - C6299999) Engine And Attaching Parts (Kawasaki & Kohler) Parts Diagram

Tiger Cub 48" Zero-Turn Mower, 23hp Kohler

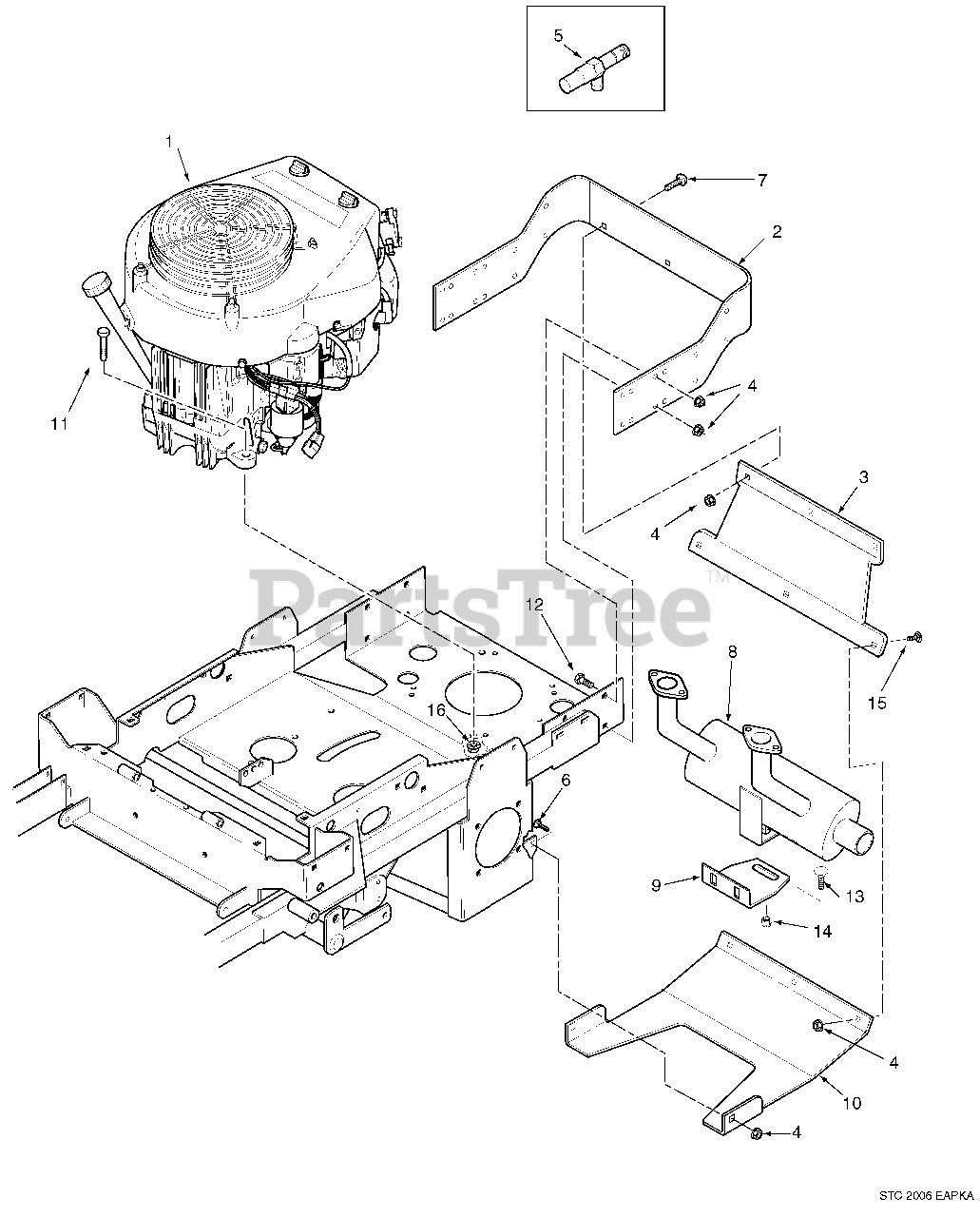

Engine And Attaching Parts (Kawasaki & Kohler) Parts Diagram

  • Title

1

Scag 482932

Engine

Note: Kawasaki (FH601V-AS29)

$

$

Currently unavailable

1

Scag 483281

Engine

Note: Kohler (PS-75607)

$

$

Currently unavailable

1

Scag 482826

Engine

Note: Kawasaki (FH680V-AS32)

$

$

Currently unavailable

2

Scag 423770

Bumper, Rear

$115.99

$

In Stock, only 1 left!

0

3

Scag 424107

Shield, Rear

$60.99

$

Usually ships in 2-12 days

0

4

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 482510

Extension, Oil Drain 2.3"

$37.99

$

Usually ships in 2-12 days

0

5

Scag 482349

Extension, Oil Drain 4"

$43.99

$

Usually ships in 2-12 days

0

6

Scag 04003-23

Bolt, Carr. 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

7

Scag 04104-01

Bolt, 3/8-16 x 1" Torx

$3.99

$

Usually ships in 2-12 days

0

7

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

Note: (61A)

$0.99

$

In Stock, Qty 14

0

8

Scag 483102

Muffler

$391.99

$

Usually ships in 2-12 days

0

8

Scag 483268

Muffler

$405.99

$

Usually ships in 2-12 days

0

8

Scag 483266

Muffler
(Superseded to 484568)

$197.99

$

Usually ships in 2-12 days

0

9

Scag 424133

Bracket, Muffler

$24.99

$

Usually ships in 2-12 days

0

10

Scag 423555

Plate, Skid

$146.99

$

Usually ships in 2-12 days

0

11

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

12

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

13

Scag 04003-12

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 04003-31

Bolt, Carr. 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

16

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0
