STC48V-23CV - Scag Tiger Cub 48" Zero-Turn Mower, 23hp Kohler (SN: C2000001 - C2099999) Sheet Metal Components Parts Diagram

Tiger Cub 48" Zero-Turn Mower, 23hp Kohler

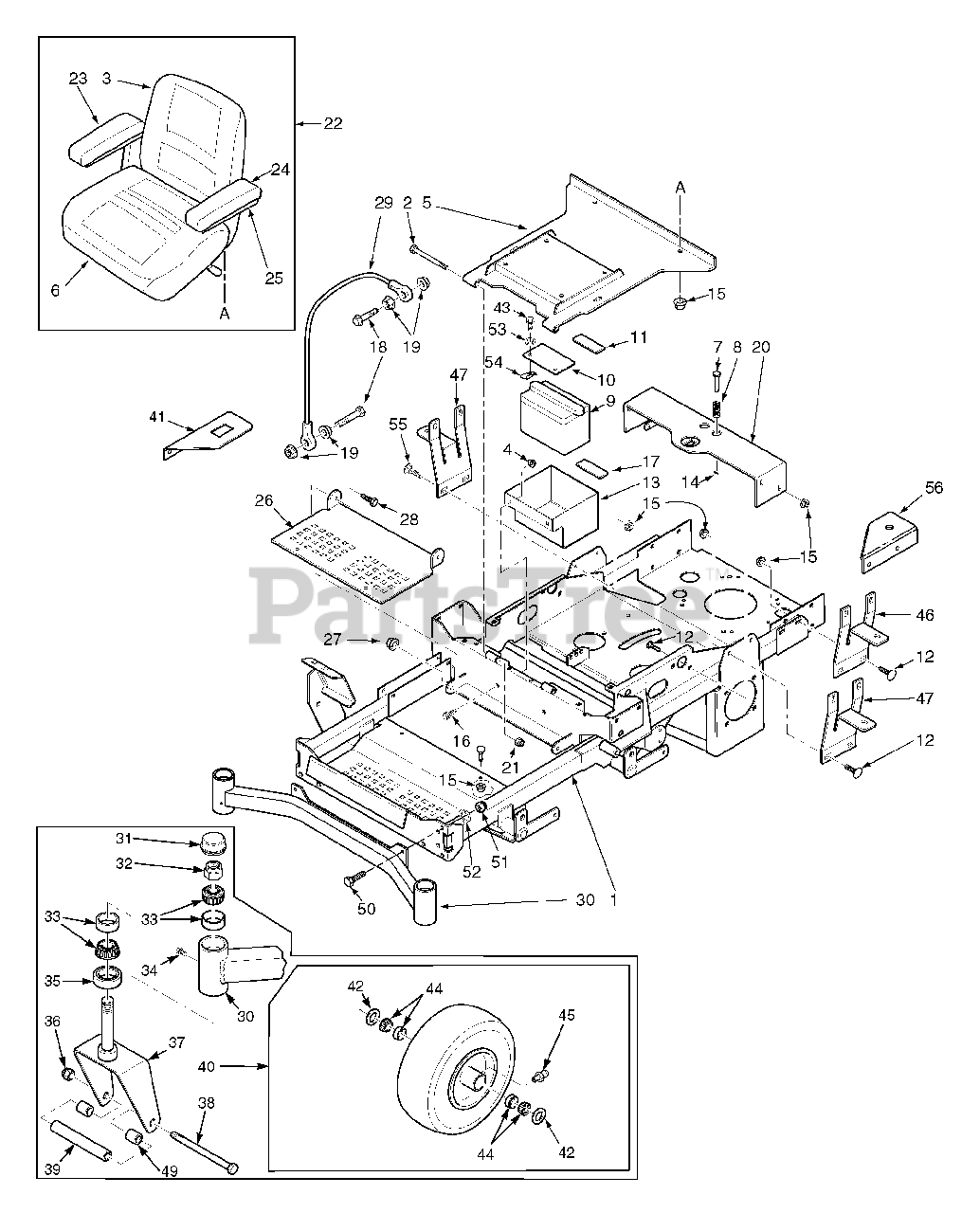

Sheet Metal Components Parts Diagram

  • Title

1

Scag 461918

Main Frame Assembly w/decals

$1448.99

$

Usually ships in 2-12 days

0

2

Scag 04001-73

Bolt, Hex Head 5/16-18 x 3-3/4"

$1.49

$

In Stock, Qty 9

0

3

Scag 482632

Cushion, Back

$199.99

$

Usually ships in 2-12 days

0

4

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 451461

Plate, Seat Mounting
(Superseded to 461989)

$238.99

$

In Stock, only 1 left!

0

6

Scag 482111

Cushion, Lower Seat

$270.99

$

Usually ships in 2-12 days

0

7

Scag 43462

Pin Retainer, Spring

$28.99

$

In Stock, only 1 left!

0

8

Scag 481389

Spring

$3.99

$

In Stock, only 4 left!

0

9

Battery

Note: (not available through Scag)

$

$

Not available

10

Scag 423571

Battery Cover

$9.49

$

In Stock, only 1 left!

0

11

Scag 482553

Battery Hold Down Pad

$2.49

$

In Stock, only 2 left!

0

12

Scag 04003-12

Bolt, Carr. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

13

Scag 423556

Battery Box

$91.99

$

Usually ships in 2-12 days

0

14

Scag 04060-01

Roll Pin, Spring 5/32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

15

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

17

Scag 482552

Pad, Rubber

$4.49

$

In Stock, only 1 left!

0

18

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 6

0

19

Scag 04019-02

Nut, Serr. Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

20

Scag 451462

Seat Base Support
(Superseded to 451896)

$99.99

$

In Stock, only 1 left!

0

21

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

22

Scag 482551

Seat Assembly w/ adj. rails

$882.99

$

In Stock, only 1 left!

0

Scag 482631

Seat Assembly w/out adj. rails

$584.99

$

Usually ships in 2-12 days

0

23

Scag 482108

Arm Pad, RH

$49.99

$

In Stock, only 1 left!

0

Scag 482110

Bracket, Armrest RH
(Superseded to 483548)

$132.99

$

In Stock, only 1 left!

0

24

Scag 482107

Arm Pad, LH

$49.99

$

In Stock, only 1 left!

0

Scag 482109

Bracket, Armrest LH
(Superseded to 483547)

$114.99

$

Usually ships in 2-12 days

0

25

Scag 482183

Channel, Armrest

$35.99

$

Usually ships in 2-12 days

0

26

Scag 423557

Footplate

$59.99

$

Usually ships in 2-12 days

0

27

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

29

Scag 48566

Cable, Seat Stop

$17.99

$

In Stock, only 1 left!

0

30

Scag 451826

Weldment, Caster Support
(Superseded to 462327)

$404.99

$

Usually ships in 2-12 days

0

31

Scag 481559

Cap, Grease

$6.99

$

In Stock, Qty 20+

0

32

Scag 04021-20

Nut, Elastic Stop 1.0-14

$4.99

$

In Stock, Qty 20+

0

33

Scag 48668

Bearing Set

$24.99

$

In Stock, Qty 20+

0

34

Scag 482028-01

Plug, 1/4-28

$6.49

$

In Stock, only 3 left!

0

35

Scag 481025

Seal, 2.0" OD x 1.625" ID

$4.99

$

In Stock, Qty 20+

0

36

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

37

Scag 451471

Yoke, Front Caster Wheel

$147.99

$

In Stock, only 1 left!

0

38

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2"

$5.49

$

In Stock, Qty 20+

0

39

Scag 43581

Sleeve

$9.99

$

In Stock, Qty 20+

0

40

Scag 9277

Caster Wheel Assembly

Note: (Incl. 42, 44, 45)

$174.99

$

In Stock, Qty 20+

0

41

Scag 424112

Bracket, Hour Meter

$10.99

$

Usually ships in 2-12 days

0

42

Scag 482622

Seal

$9.99

$

In Stock, Qty 20+

0

43

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

44

Scag 482621

Roller Bearing

$21.99

$

In Stock, Qty 20+

0

45

Scag 48114-04

Fitting, Grease

$1.49

$

In Stock, Qty 20+

0

46

Scag 423575

Mounting Bracket, Oil Tank

$34.99

$

Usually ships in 2-12 days

0

47

Scag 423764

Mounting Bracket, Fuel Tank

$34.99

$

Usually ships in 2-12 days

0

48

Scag 482633

Seat Pan

$249.99

$

Usually ships in 2-12 days

0

49

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

50

Scag 04001-28

Bolt, Hex Head 7/16-14 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

51

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

52

Scag 04030-05

Lockwasher, 7/16

$0.99

$

In Stock, Qty 8

0

53

Scag 04030-04

Lock Washer. 3/8 Spring

$0.99

$

In Stock, Qty 8

0

54

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

55

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

56

Scag 423912

Bracket, Fuel Valve

$25.99

$

Usually ships in 2-12 days

0
