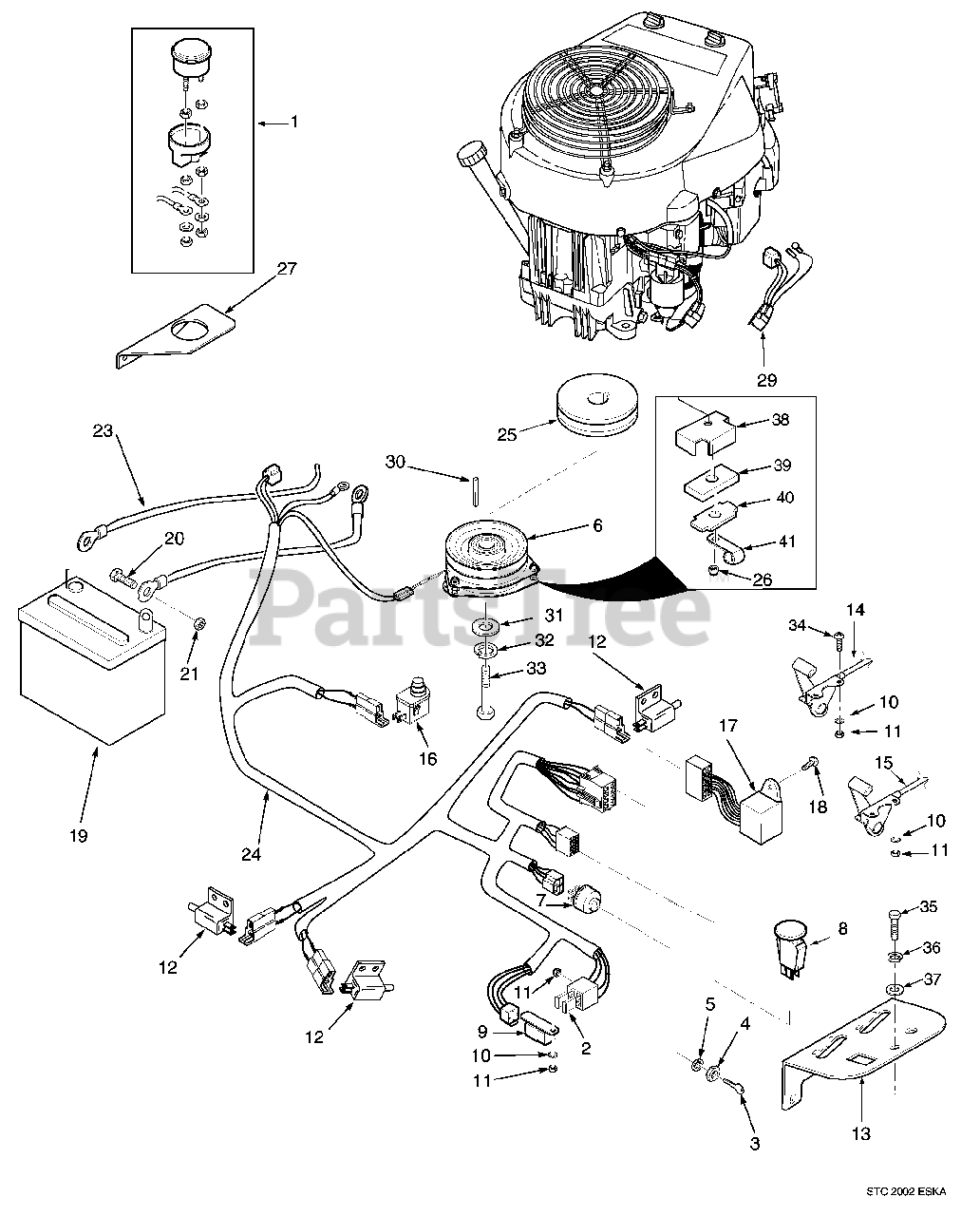

STC48A-21KA - Scag Tiger Cub 48" Zero-Turn Mower, 21hp Kawasaki (SN: 9280001 - 9289999) Electrical System Parts Diagram

Tiger Cub 48" Zero-Turn Mower, 21hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Scag 48023

Hourmeter

$157.99

$

Usually ships in 2-12 days

0

2

Scag 48298

Fuse, 20 amp

$3.99

$

Usually ships in 2-12 days

0

3

Scag 48017-02

Key, Ignition

$3.99

$

In Stock, Qty 9

0

4

Scag 48017-04

Nut, Hex 5/8-32

$1.49

$

In Stock, Qty 5

0

5

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 6

0

6

Scag 461661

Electric PTO Clutch GT3.5

$429.99

$

In Stock, only 2 left!

0

7

Scag 48798

Switch, Ignition

$27.99

$

In Stock, Qty 20+

0

8

Scag 481687

Switch, PTO
(Superseded to 483957)

$37.99

$

In Stock, Qty 20+

0

9

Scag 48788

Relay

$28.99

$

In Stock, only 2 left!

0

10

Scag 04031-01

Lock Washer, #10 External Tooth

$0.99

$

In Stock, Qty 20+

0

11

Scag 04020-01

Nut, Hex #10-32

$8.99

$

In Stock, Qty 20+

0

12

Scag 481637

Switch, N/O

$9.99

$

In Stock, Qty 20+

0

13

Scag 461528

Panel, Instrument
(Superseded to 462326)

$132.99

$

Usually ships in 2-12 days

0

14

Scag 482032

Choke & Throttle Control - Kawasaki

$32.99

$

In Stock, Qty 20+

0

Scag 481544

Choke Control - Kohler & Honda

$27.99

$

In Stock, Qty 20+

0

15

Scag 482032

Throttle Control - Kohler

$32.99

$

In Stock, Qty 20+

0

Scag 482399

Throttle Control - Honda

$30.99

$

Usually ships in 2-12 days

0

16

Scag 481638

Switch, Seat

$15.99

$

In Stock, Qty 20+

0

17

Scag 482313

Module, Interlock
(Superseded to 483599)

$133.99

$

In Stock, Qty 20+

0

18

Scag 04010-01

Screw, #10-32 x .5" Phillips Head

$0.99

$

In Stock, Qty 20+

0

19

Battery

Note: (Not Available Through Scag)

$

$

Not available

20

Scag 04001-44

Bolt, Hex Head 1/4-20 x .5"

$0.99

$

In Stock, Qty 6

0

21

Scag 04020-02

Nut, Hex 1/4-20

$0.99

$

In Stock, Qty 10

0

22

Scag 48029-15

Cable, Battery Black (negative)

$17.99

$

In Stock, only 1 left!

0

23

Scag 48029-12

Cable, Battery Red (positive)

$17.99

$

In Stock, only 2 left!

0

24

Scag 482542

Wiring Harness, Main

$395.99

$

In Stock, only 2 left!

0

25

Scag 482650

Pulley, 5.45 OD x 1.125 Bore

$118.99

$

In Stock, only 1 left!

0

26

Scag 04021-10

Nut, Elastic Stop 5/16-18 Key

$0.99

$

In Stock, Qty 20+

0

27

Scag 423913

Mounting Bracket, Hour Meter

$22.99

$

Usually ships in 2-12 days

0

28

Scag 04010-11

Screw, #10-32 x 1.5" Phillips Head

$0.99

$

Usually ships in 2-12 days

0

29

Scag 482543

Adaptor, Wiring Harness (Kawasaki only)

$30.99

$

In Stock, only 1 left!

0

Scag 482094

Adaptor, Wiring Harness (Kohler only)
(Superseded to 484078)

$25.99

$

In Stock, only 3 left!

0

Scag 482740

Adaptor, Wiring Harness (Honda only)

$60.99

$

Usually ships in 2-12 days

0

30

Scag 04063-23

Key, 1/4 x 1/4 x 3-1/4"

$1.99

$

In Stock, only 2 left!

0

31

Scag 04041-28

Flatwasher, 7/16-.469 x 1-3/4" x 1/4"

$2.99

$

In Stock, Qty 12

0

32

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 5

0

33

Scag 04001-101

Bolt, Hex Head 7/16-20 x 2-1/2" UNF

$1.99

$

In Stock, only 3 left!

0

34

Scag 04010-12

Screw, #10-32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

35

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

36

Scag 04030-03

Lockwasher, 5/16

$0.99

$

In Stock, Qty 20+

0

37

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

38

Scag 423909

Backing Plate

$11.99

$

In Stock, only 1 left!

0

39

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

Usually ships in 2-12 days

0

40

Scag 422534

Plate, Backing

$5.49

$

In Stock, only 1 left!

0

41

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0
