STC48A-19KA - Scag Tiger Cub 48" Zero-Turn Mower, 19hp Kawasaki (SN: 9250001 - 9259999) Steering Components Parts Diagram

Tiger Cub 48" Zero-Turn Mower, 19hp Kawasaki

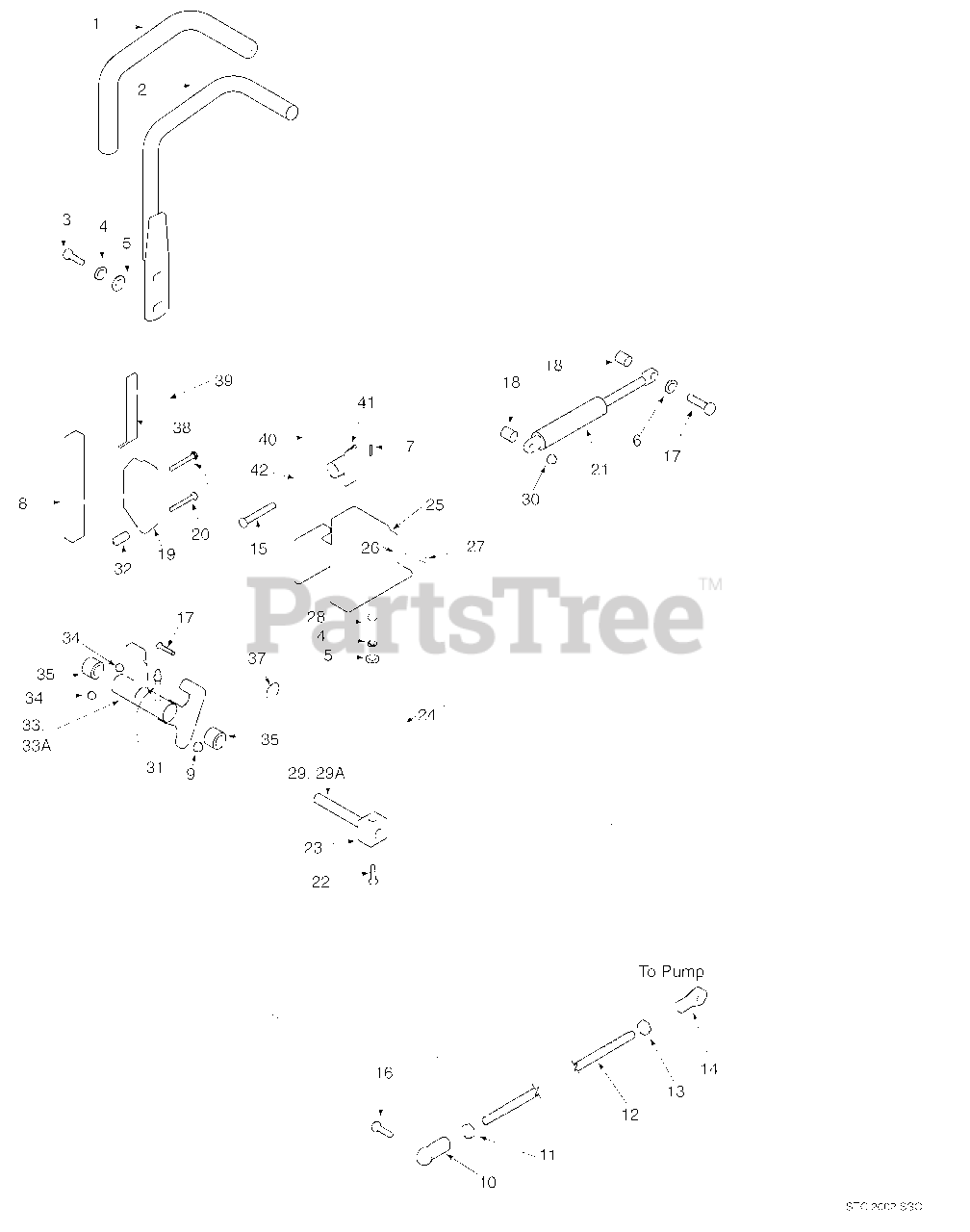

Steering Components Parts Diagram

  • Title

1

Scag 482340

Grip, Control Lever

$7.99

$

Usually ships in 2-12 days

0

2

Scag 461386

Handle Bar

Note: (Includes item 1)

$75.99

$

Usually ships in 2-12 days

0

3

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

4

Scag 04030-04

Lock Washer, 3/8"

$0.99

$

In Stock, Qty 8

0

5

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

6

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

7

Scag 04060-01

Roll Pin, Spring 5/32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

8

Scag 422372

Bar, Control Lever

$30.99

$

In Stock, only 2 left!

0

9

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 482330

Rod End, 3/8-24 RH Female

$25.99

$

In Stock, only 1 left!

0

11

Scag 04020-14

Nut, 3/8-24 RH Thread

$0.99

$

In Stock, only 3 left!

0

12

Scag 482623

Rod, Pump Control Linkage

$14.99

$

Usually ships in 2-12 days

0

13

Scag 04020-17

Nut, 3/8-24 UNF-2B LH Thread

$2.49

$

In Stock, only 3 left!

0

14

Scag 482331

Rod End, 3/8-24 LH Thread

$25.99

$

Usually ships in 2-12 days

0

15

Scag 43477

Pin Retainer

$19.99

$

In Stock, only 2 left!

0

16

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 43602

Spacer, Pump Dampener

$3.49

$

In Stock, only 1 left!

0

19

Scag 423599

Plate, Control Lever

$12.99

$

Usually ships in 2-12 days

0

20

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

21

Scag 482452

Gas Damper

$95.99

$

In Stock, only 3 left!

0

22

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

23

Scag 482099

Block, Clamping

$32.99

$

Usually ships in 2-12 days

0

24

Scag 04003-12

Bolt, Carriage, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 461525

Control Plate - LH
(Superseded to 461770)

Note: (Includes Decal)

$39.99

$

Usually ships in 2-12 days

0

Scag 461526

Control Plate - RH
(Superseded to 461771)

Note: (Includes Decal)

$39.99

$

Usually ships in 2-12 days

0

26

Scag 04019-03

Nut, Serr., Flange, 5/16-18

$0.99

$

In Stock, Qty 20+

0

27

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

28

Scag 04001-18

Bolt, Hex Head 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

29

Scag 43616

Shaft, Steering Control

$10.99

$

Usually ships in 2-12 days

0

29A

Scag 482099

Block, Clamp

$32.99

$

Usually ships in 2-12 days

0

30

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

31

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$1.49

$

In Stock, Qty 20+

0

32

Scag 43559

Spacer, Control

$1.49

$

Usually ships in 2-12 days

0

33

Scag 49574

Control Lever Assy RH

Note: (Includes 31 & 35)

$123.99

$

Usually ships in 2-12 days

0

Scag 49573

Control Lever Assy LH

Note: (Includes 31 & 35)

$123.99

$

Usually ships in 2-12 days

0

34

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

35

Scag 48100-06

Bushing

$1.49

$

In Stock, only 1 left!

0

36

Scag 04041-08

Flatwasher, 1-1/4 x 49/64 x 16 Ga.

$0.99

$

In Stock, Qty 20+

0

37

Scag 04050-02

Retaining Ring, 3/4" Ext.

$0.99

$

In Stock, Qty 7

0

38

Scag 423057

Bracket, Switch Actuator

$14.99

$

Usually ships in 2-12 days

0

39

Scag 04017-16

Bolt, Hex Serr. Flange 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

40

Scag 04003-02

Bolt, Carr. 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

41

Scag 45918

Bracket, Control Return

$45.99

$

In Stock, only 2 left!

0

42

Scag 481389

Spring

$3.99

$

In Stock, only 4 left!

0

43

Scag 43477

Pin Retainer

$19.99

$

In Stock, only 2 left!

0
