STC48-20CV - Scag Tiger Cub 48" Zero-Turn Mower, 20hp Kohler (SN: 5980000 - 5989999) Brake Components Parts Diagram

Tiger Cub 48" Zero-Turn Mower, 20hp Kohler

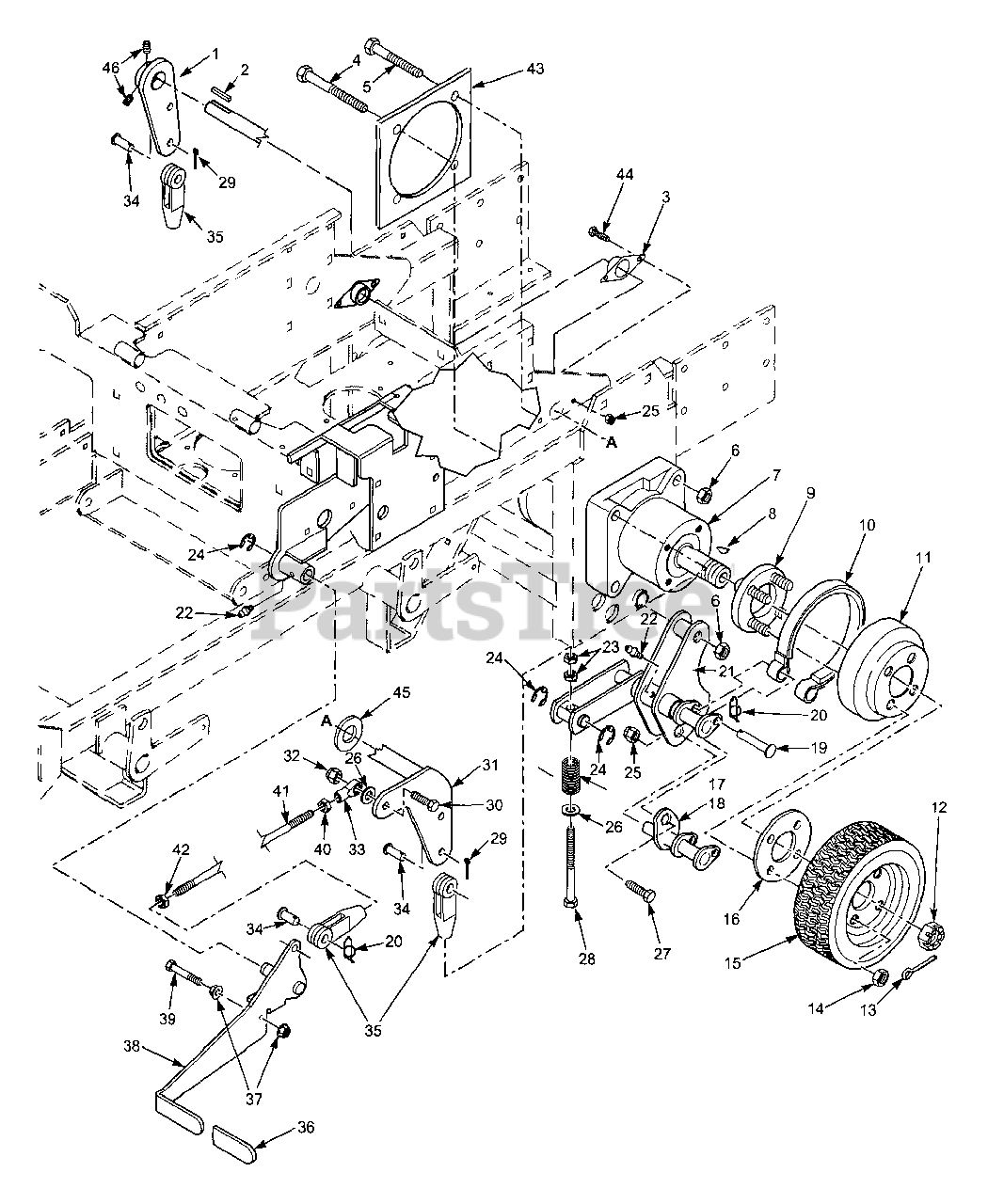

Brake Components Parts Diagram

  • Title

1

Scag 451224

Brake Lever

$

$

Not available

2

Scag 04063-20

Key, 1/4 x 1/4 x 1"

$1.49

$

In Stock, Qty 5

0

3

Scag 482061

Bushing, Self Align

$15.99

$

Usually ships in 2-12 days

0

4

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 3 left!

0

5

Scag 04001-153

Bolt, Hex Head 1/2-13 x 2-1/4"

$2.49

$

In Stock, Qty 8

0

6

Scag 04021-19

Nut, 112-13 Center Lock

$0.99

$

In Stock, Qty 5

0

7

Scag 481529

Wheel Motor Ross
(Superseded to 482639)

$955.99

$

In Stock, only 1 left!

0

8

Scag 04063-25

Key, Woodruff 5/16 x 1"

$2.99

$

In Stock, Qty 10

0

9

Scag 46929

Wheel Hub Assembly

$173.99

$

In Stock, only 1 left!

0

10

Scag 481601

Brake Band Assembly

$59.99

$

In Stock, only 1 left!

0

11

Scag 48513

Brake Drum

$

$

Not available

12

Scag 48680

Nut, Hex Castle 1.0-20 UNEF

$16.99

$

In Stock, only 3 left!

0

13

Scag 04061-06

Cotter Pin, 9/64 x 1-1/2"

$0.99

$

In Stock, Qty 11

0

14

Scag 04028-01

Lug Nut

$1.49

$

In Stock, Qty 14

0

15

Scag 481831

Wheel Assembly (40"), 23 x 8.50-12

$509.99

$

Usually ships in 2-12 days

0

Scag 481832

Rim W/Valve Stem (40")

$212.99

$

Usually ships in 2-12 days

0

Scag 481833

Tire (40"), 23 x 8.50-12

$333.99

$

Usually ships in 2-12 days

0

Scag 481850

Wheel Assembly (48" & 52") 24 x 12-12

$385.99

$

Usually ships in 2-12 days

0

Scag 481851

Rim W/Valve Stem (48" & 52")

$138.99

$

In Stock, only 1 left!

0

Scag 481852

Tire (48" & 52") 24 x 12-12

$290.99

$

Usually ships in 2-12 days

0

16

Scag 422487

Wheel Spacer

$31.99

$

Usually ships in 2-12 days

0

17

Scag 451074

Shaft Weldment, RH

$

$

Not available

18

Scag 451073

Shaft Weldment, LH

$70.99

$

Usually ships in 2-12 days

0

19

Scag 04064-03

Clevis Pin, 3/8 x 2"

$2.99

$

In Stock, only 2 left!

0

20

Scag 04069-01

Pin, Rue Cotter 3/8 Dia

$1.49

$

In Stock, only 4 left!

0

21

Scag 451071

Brake Linkage LH
(Superseded to 461471)

$363.99

$

Usually ships in 2-12 days

0

Scag 451072

Brake Linkage RH
(Superseded to 461472)

$363.99

$

Usually ships in 2-12 days

0

22

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

0

23

Scag 04020-14

Nut, 3/8-24 UNF

$0.99

$

In Stock, only 3 left!

0

24

Scag 04050-01

Retaining Ring, .625 Ext

$0.99

$

In Stock, Qty 20+

0

25

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

26

Scag 04041-07

Flatwasher, 3/8- .391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-157

Bolt, Hex Head 3/8-24 x 5-3/4"

$

$

Not available

29

Scag 04061-02

Cotter Pin, 3/32 x 3/4"

$0.99

$

In Stock, Qty 11

0

30

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

31

Scag 451225

Brake Shaft

$

$

Not available

32

Scag 04021-05

Hex Lock Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

33

Scag 48544

Rod End, 3/8-24 LH Thread

$26.99

$

Usually ships in 2-12 days

0

34

Scag 04064-02

Clevis Pin, 3/8 x 1.06

$1.49

$

In Stock, only 3 left!

0

35

Scag 48343-04

Clevis, 3/8-24

$16.99

$

In Stock, only 2 left!

0

36

Scag 482102

Grip, Brake Lever

$3.99

$

In Stock, only 3 left!

0

37

Scag 04019-04

Nut, Serr Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

38

Scag 461283

Brake Lever

$121.99

$

Usually ships in 2-12 days

0

39

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

40

Scag 04020-17

Nut, 3/8-24 UNF-2B LH Thread

$2.49

$

In Stock, only 3 left!

0

41

Scag 43568

Brake Rod

$

$

Not available

42

Scag 04020-14

Nut, 3/8-24 UNF

$0.99

$

In Stock, only 3 left!

0

43

Scag 451290

Plate Weldment, Motor Backing
(Superseded to 423279)

$26.99

$

Usually ships in 2-12 days

0

44

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

45

Scag 04042-05

Flatwasher, 1.0-1.062 x 1.75 x .10

$0.99

$

In Stock, Qty 18

0

46

Scag 04012-03

Setscrew, 5/16-18 x 1/4"

$1.49

$

Usually ships in 2-12 days

0
