ST07068KNSN - Generac 70kW Home Standby Generator (SN: 5435969 - 5435969) (2009) Enclosure C3 Pvt Lbl (0G2898) Parts Diagram

70kW Home Standby Generator

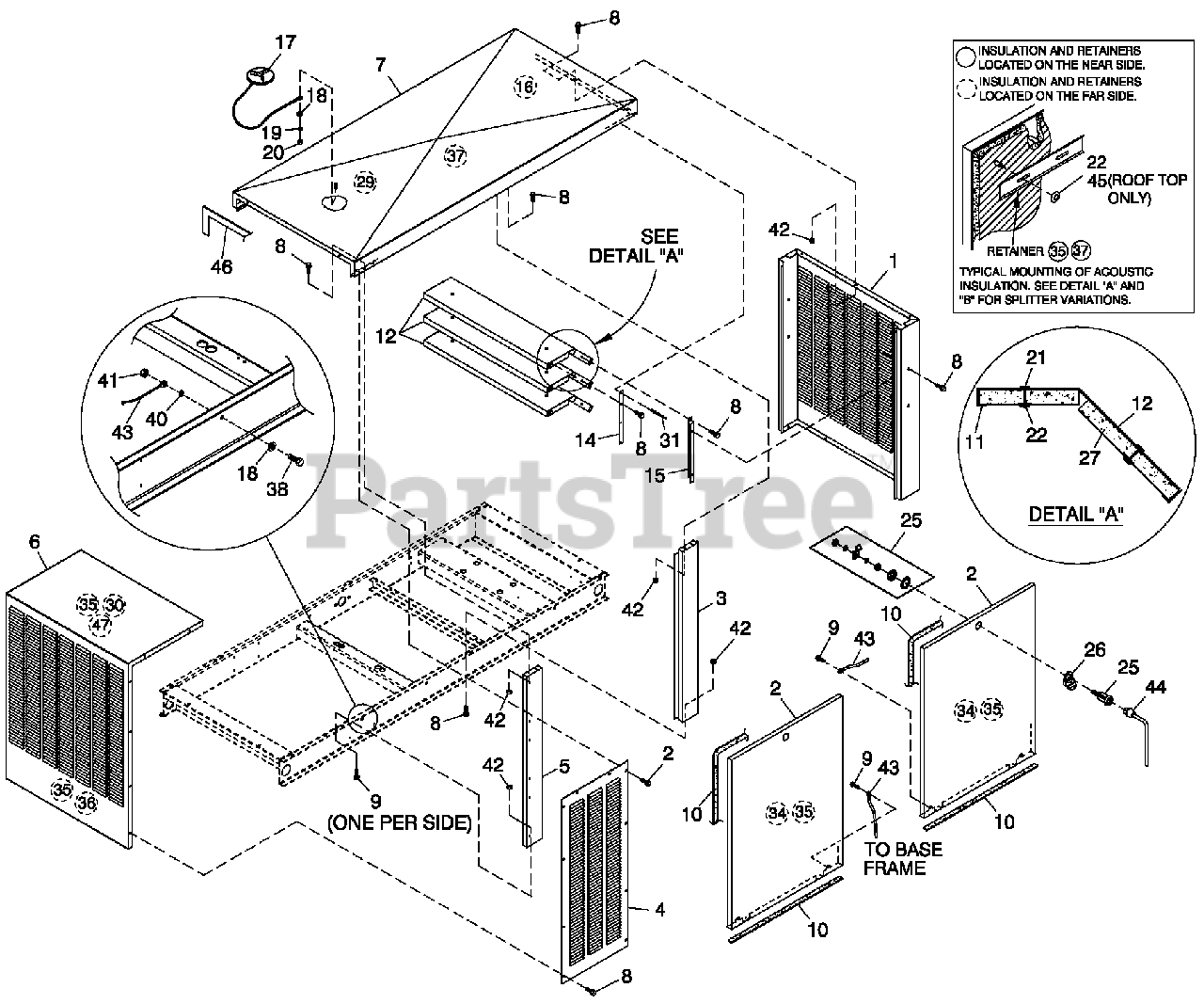

Enclosure C3 Pvt Lbl (0G2898) Parts Diagram

  • Title

1

Generac 0F58660ST01

REAR WRAP C3

Note: PART NUMBER SHOWN IS FOR TAN I STEEL, REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR ANDIOR ALUMINUM PART NUMBER FORMAT.

$561.99

$

Usually ships in 2-12 days

0

2

Generac 0F58610ST01

DOOR C3

Note: PART NUMBER SHOWN IS FOR TAN I STEEL, REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR ANDIOR ALUMINUM PART NUMBER FORMAT.

$454.99

$

Usually ships in 2-12 days

0

3

Generac 0F58650ST01

CENTER SUPPORT C3

Note: PART NUMBER SHOWN IS FOR TAN I STEEL, REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR ANDIOR ALUMINUM PART NUMBER FORMAT.

$536.99

$

Usually ships in 2-12 days

0

4

Generac 0F58640AL01

DISCHARGE DUCT LH & RH SIDE C3

Note: PART NUMBER SHOWN IS FOR TAN, GUIDE BELOW FOR AVAILABLE COLOR AND PART NUMBER FORMAT.

$317.99

$

Usually ships in 2-12 days

0

5

Generac 0F58620ST01

FRONT CORNERS C3

Note: PART NUMBER SHOWN IS FOR TAN I STEEL, REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR ANDIOR ALUMINUM PART NUMBER FORMAT.

$220.99

$

Usually ships in 2-12 days

0

6

Generac 0F58630ST01

DISCHARGE CENTER DUCT C3

Note: PART NUMBER SHOWN IS FOR TAN I STEEL, REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR ANDIOR ALUMINUM PART NUMBER FORMAT.

$818.99

$

Usually ships in 2-12 days

0

7

Generac 0F58600AL01

ROOF C3 ALUM

Note: PART NUMBER SHOWN IS FOR TAN, GUIDE BELOW FOR AVAILABLE COLOR AND PART NUMBER FORMAT.. MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$1948.99

$

Usually ships in 2-12 days

0

8

Generac 0C2454

SCREW THF M6-1 X 16 N WA ZIJS

$3.49

$

Usually ships in 2-12 days

0

9

Generac 0E3257

SCREW TH-FRM M6 WICAP SHKPRF W

$5.49

$

Usually ships in 2-12 days

0

10

Generac 0E5968

GASKET EXTRUDED TRIM (547" LG)

Note: THIS IS SOLD BY THE FOOT. IF ORDERING FOR ROOF ORDER 11FT

$3.99

$

Usually ships in 2-12 days

0

11

Generac 0F3949L

INSULATION SPLITTER SML

$34.99

$

Usually ships in 2-12 days

0

12

Generac 0F2766

SPLITTER

$197.99

$

Usually ships in 2-12 days

0

14

Generac 0F3185

STRINGER SPLITTER C3

$40.99

$

Usually ships in 2-12 days

0

15

Generac 0F3416

SUPPORT SPLITTER C5 130KW

$178.99

$

Usually ships in 2-12 days

0

16

Generac 0F3949E

INSULATION ROOF TOP REAR

$224.99

$

Usually ships in 2-12 days

0

17

Generac 0F4487A

ASSEMBLY COVER ACCESS

Note: CUSTOMER ORDER P/N 0F4487ASRV.

$

$

Not available

18

Generac 022473

WASHER FLAT 1I4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

19

Generac 022097

WASHER LOCK M6-1I4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

20

Generac 022127

NUT HEX 1I4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

21

Generac 0F3072

INSULATION RETAINMENT HANGER

$0.99

$

Usually ships in 2-12 days

0

22

Generac 078115

WASHER SELF LOCKING DOME #4-40

$

$

Not available

25

Generac 0F5048D

VISE-ACTION LATCH SLOTTED CIR

Note: FOR KEY ORDER 0F8869D

$31.99

$

In Stock, only 1 left!

0

26

Generac 0F5049

TAB PULL
(Superseded to 0F5049B)

Note: ORDER PART NUMBER 0F5049B

$11.99

$

In Stock, only 1 left!

0

27

Generac 0F3949B

INSULATION SPLITTER

$52.99

$

Usually ships in 2-12 days

0

29

Generac 0F4073A

INSULATION ROOF TOP

$461.99

$

Usually ships in 2-12 days

0

30

Generac 0F4073F

INSULATION DUCT TOP

$109.99

$

Usually ships in 2-12 days

0

31

Generac 087233

RIVET POP,1875 X ,450 SS

$

$

Not available

32

Generac 0F3180

SPLITTER EXTENDED LENGTH

$

$

Not available

33

Generac 0F3635C

INSULATION SPLITTER EXTENDED LENGTH

$

$

Not available

34

Generac 0F4073

INSULATION DOOR

$257.99

$

Usually ships in 2-12 days

0

35

Generac 0F3890B

RETAINER INSULATION (820)

$18.99

$

Usually ships in 2-12 days

0

36

Generac 0F4073B

INSULATION DUCT FRONT

$59.99

$

Usually ships in 2-12 days

0

37

Generac 0F3890A

RETAINER INSULATION (740)

$15.99

$

Usually ships in 2-12 days

0

38

Generac 042568

SCREW HHC M6-1,0X 20 G8,8

$

$

Not available

40

Generac 022447

WASHER SHAKEPROOF INT 1I4

$

$

Not available

41

Generac 049813

NUT HEX M6X 1,0 G8YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

42

Generac 077992

NUT HEX LOCK M6-1,0 SS NY INS
(Superseded to G077992)

Note: ALL ENCLOSURE PANELS THAT FASTEN TO THE BASE FRAME MUST BE SECURED USING ITEM 8 & 9 THREAD FORMING FASTENER AND ITEM 42 LOCK NUT, LOCK NUT IS TO BE INSTALLED AFTER THREAD FORMING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN ENCLOSURE PANELS, ALL ROOF PAN

$1.49

$

Usually ships in 2-12 days

0

43

Generac 0912970094

ASSY WIRE 14 AWG 34,8" GRNIYEL

$

$

Not available

44

Generac 0F8869D

KEY VISE-ACTION LATCH SLOT CIR

$11.99

$

In Stock, only 1 left!

0

45

Generac 078115A

WASHER SELF LOCKING DOME #8-32

$2.49

$

Usually ships in 2-12 days

0

46

Generac 066760

STRIP SEALANT 1I8 X 1 (44,52" LG)
(Superseded to G066760)

$1.99

$

Usually ships in 2-12 days

0

47

Generac 0G0257

REFLECTIVE HEAT SHIELD 2,4L

$15.99

$

Usually ships in 2-12 days

0
