ST07068GNSN - Generac 70kW Home Standby Generator (SN: 5695108 - 5695108) (2009) Engine Common Parts L/H Side (6.8L Cpl) (0F3016) Parts Diagram

70kW Home Standby Generator

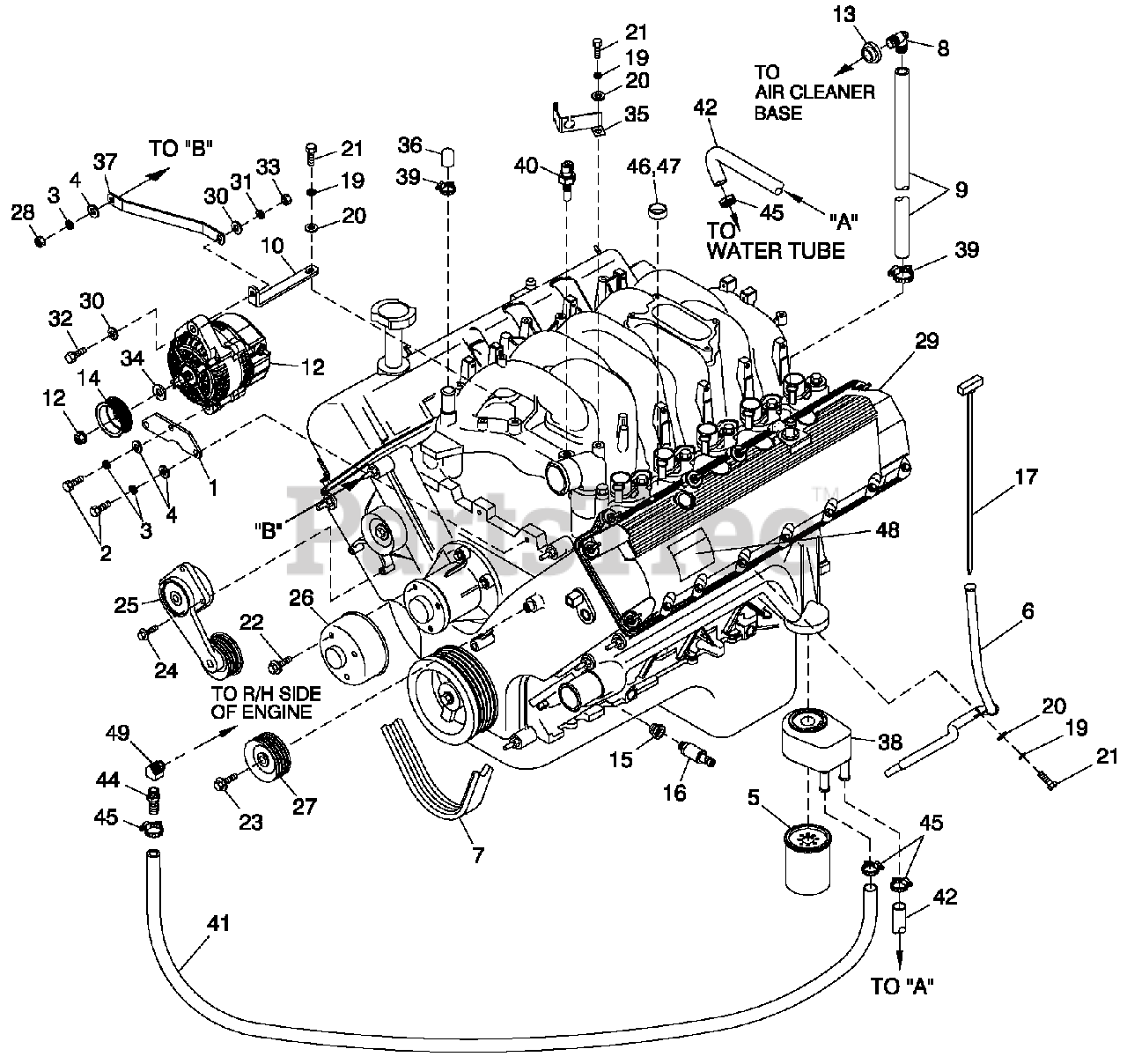

Engine Common Parts L/H Side (6.8L Cpl) (0F3016) Parts Diagram

  • Title

1

Generac 0F3017

BRACKET,D.C. ALTERNATOR LOWER

$14.99

$

Usually ships in 2-12 days

0

2

Generac 039253

SCREW HHC M8-1.25X20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

3

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

4

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

5

Generac 0D5419

OIL FILTER, FORD V-10 ENGINE

Note: l/N 5 PART OF l/N 29.. INCLUDED IN KITS: 0D345400PM

$49.99

$

Usually ships in 2-12 days

0

6

Generac 0D7055

DIPSTICK TUBE, FORD 6.8L

$103.99

$

Usually ships in 2-12 days

0

7

Generac 0D3488G

BELT SERPENTINE (65.0" LG) (1800 RPM)

$123.99

$

Usually ships in 2-12 days

0

Generac 0D3488J

BELT SERPENTINE (65.3" LG) (2300 RPM)

$81.99

$

Usually ships in 2-12 days

0

Generac 0D3488

BELT SERPENTINE (67.16" LG) (3000 RPM)

$153.99

$

Usually ships in 2-12 days

0

Generac 0D3488K

SERPENTINE BELT (68.3" LG) (3600 RPM)

$92.99

$

Usually ships in 2-12 days

0

8

Generac 057795A

BARBED EL 90 3/4 PLASTIC

$6.99

$

Usually ships in 2-12 days

0

9

Generac 059057

HOSE 3/4 ID SAE-30R2 (16.75+LG)

$

$

Not available

10

Generac 0F3287

BRACKET DC ALTERNATOR UPPER

$48.99

$

Usually ships in 2-12 days

0

11

Generac 0F5990

HARN ENG 6.8L H-100 (USE WITH PROBE P/N 0E2507)

Note: NOT SHOWN. ORDER 0H3074 ENG HARNESS AND QTY 1 0E4911 SIGNAL CONDITIONER

$

$

Not available

Generac 0H2595

HARN ENG G6.8L G3 H-100 (USE WITH PROBE P/N 0H1827)

$3248.99

$

Usually ships in 2-12 days

0

Generac 0F4419

HARN ENG 6.8L G-100 (USE WITH PROBE P/N 0E2507)

$

$

Not available

Generac 0H3081

HARN ENG G6.8L G3 MQT 480V (USE WITH PROBE P/N 0H1827)

$

$

Not available

0F9786

HARN ENG 6.8L G-100 MQT 208V (USE WITH PROBE P/N 0E2507)

$

$

Not available

0H3080

HARN ENG G6.8L G3 MQT 208V (USE WITH PROBE P/N 0H1827)

$

$

Not available

12

Generac 0E9868A

ALTERNATOR DC W/OUT PULLEY

$519.99

$

Usually ships in 2-12 days

0

13

Generac 057796

GROMMET
(Superseded to G057796)

$21.99

$

Usually ships in 2-12 days

0

14

Generac 0F3216

PULLEY 80 OD DC ALTERNATOR (1800 RPM)

$34.99

$

Usually ships in 2-12 days

0

Generac 0F3216A

PULLEY 102 OD DC ALTERNATOR (2300 RPM)

$35.99

$

Usually ships in 2-12 days

0

Generac 0F3216C

PULLEY 132 OD DC ALTERNATOR (3000 RPM)

$46.99

$

Usually ships in 2-12 days

0

Generac 0F3216D

PULLEY 160 OD DC ALTERNATOR (3600 RPM)

Note: ORDER KIT P/N 0F3216DSRV

$54.99

$

Usually ships in 2-12 days

0

15

Generac 035579

BSHG RDCRHEX1/4 TO 1/8

$

$

Not available

16

Generac 0F4612

SENDER OIL PRESSURE 1/8" NPT

$337.99

$

Usually ships in 2-12 days

0

17

Generac 0D6658

DIPSTICK 6.8L FORD

$122.99

$

Usually ships in 2-12 days

0

18

Generac 029333A

TIE WRAP UL 7.4" X .19" BLK

Note: NOT SHOWN, l/N 18 IS FOR HOLDING SENSOR TO l/N 35.

$0.99

$

Usually ships in 2-12 days

0

19

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

20

Generac 022473

WASHER FLAT 1/4 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

21

Generac 042568

SCREW HHC M6-1.0X20G8.8

$

$

Not available

22

Generac 0D8027

BOLT WATER PUMP PULLEY

$4.99

$

Usually ships in 2-12 days

0

23

Generac 0D8025

BOLT GROOVED IDLER PULLEY

$22.99

$

Usually ships in 2-12 days

0

24

Generac 0D8026

BOLT BELT TENSIONER

$42.99

$

Usually ships in 2-12 days

0

25

Generac 0D8030

TENSIONER ENG. AUTOMATIC BELT

$376.99

$

Usually ships in 2-12 days

0

26

Generac 0F2846

PULLEY WATER PUMP FORD (1800RPM UNITS)

$357.99

$

Usually ships in 2-12 days

0

Generac 0D8029

PULLEY ENGINE WATER PUMP (2-POLE & GEAR BOX)

$135.99

$

Usually ships in 2-12 days

0

27

Generac 0D8028

PULLEY GROOVED ENGINE IDLER

$114.99

$

Usually ships in 2-12 days

0

28

Generac 045771

NUT HEX M8-1.25 G8YEL CHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

29

Generac 0D3454A

ENGINE G6.8L G3V-10

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS. MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$

$

Not available

Generac 0H0923

ENGINE G6.8L G3 V-10 (2009)

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS. MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$

$

Not available

30

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

31

Generac 046526

WASHER LOCK M10

$

$

Not available

32

Generac 064416

SCREW HHC M10-1.5 X 45 G8.8 FT

$

$

Not available

33

Generac 045772

NUT HEX M10-1.5 G8YEL CHR

$

$

Not available

34

Generac 0F3217

SPACER DC ALTERNATOR PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

35

Generac 0F2776A

BRACKET SIGNAL CONDITIONER

$3.99

$

Usually ships in 2-12 days

0

36

Generac 0F6151

CAP RUBBER

$7.99

$

Usually ships in 2-12 days

0

37

Generac 0F4308

BRACKET DC ALT STABILIZER

$31.99

$

Usually ships in 2-12 days

0

38

Generac 0F3158

OIL COOLER FORD (150KW 3600RPM)

$675.99

$

Usually ships in 2-12 days

0

39

Generac 057823

CLAMP HOSE #10 .56-1.06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

40

Generac 0E0502

TEMPERATURE SENDER DELPHI

$53.99

$

Usually ships in 2-12 days

0

41

Generac 0G0866

HOSE OIL COOLER PREFORMED 3/4 (150KW 3600RPM)

$56.99

$

Usually ships in 2-12 days

0

42

Generac 0F4301

HOSE OIL COOLER (150KW 3600RPM)

$93.99

$

Usually ships in 2-12 days

0

44

Generac 047527

BARBED STR1/2NPT X 3/4

$

$

Not available

45

Generac 057823

CLAMP HOSE #10 .56-1.06 (150KW 3600RPM)
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

46

Generac 0E0992A

PLUG EXPANSION 14 OD

$3.49

$

Usually ships in 2-12 days

0

47

078637

ADHESIVE LOCTITE 620

$

$

Not available

48

0G7519

DECAL EMISSION CTRL INFO 6.8L

$

$

Not available

49

Generac 0E8286

ELBOW 45D STREET 1/2NPT BRASS

$100.99

$

Usually ships in 2-12 days

0
