ST04524GNSN - Generac 45kW Home Standby Generator (SN: 4690928 - 4715757) (2007) Cpl Alternator Direct Excitation (0F9803) Parts Diagram

45kW Home Standby Generator

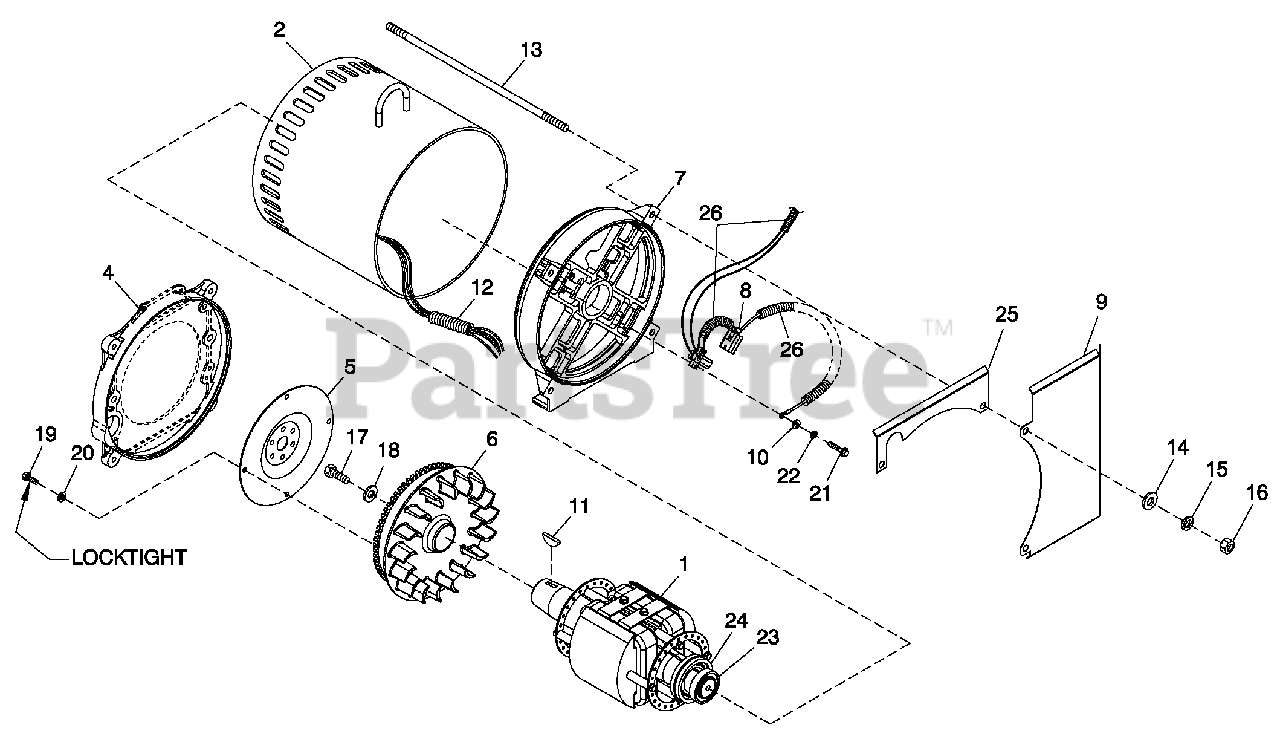

Cpl Alternator Direct Excitation (0F9803) Parts Diagram

  • Title

1

Generac 0G0056

ROTOR-2390-35KD1 CPL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$3908.99

$

Usually ships in 2-12 days

0

Generac 0G1155

ROTOR-2390-35KD1 CPL (G2)

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$3483.99

$

Usually ships in 2-12 days

0

Generac 0F9677

ROTOR-2390-45KD1 CPL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$4248.99

$

Usually ships in 2-12 days

0

Generac 0G0959

ROTOR-2390-45KD1 CPL (G2)

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$3568.99

$

Usually ships in 2-12 days

0

Generac 0G2101

ROTOR 25KW 1PH DIRECT 390 1800

$3313.99

$

Usually ships in 2-12 days

0

Generac 0G1931

ROTOR 25KW 3PH DIRECT 390 1800

$4163.99

$

Usually ships in 2-12 days

0

2

Generac 0G0057

STATOR-2390-35AD1 CPL

$4758.99

$

Usually ships in 2-12 days

0

Generac 0F9664

STATOR-390 45K 2P 1PH DIRECT

$6118.99

$

Usually ships in 2-12 days

0

Generac 0G0058

STATOR-2390-35KD1 CPL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$

$

Not available

Generac 0G0184

STATOR-2309-45-KD1 CPL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$5948.99

$

Usually ships in 2-12 days

0

Generac 0G0059

STATOR-2390-35GD1 CPL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$

$

Not available

Generac 0G0183

STATOR-2309-45KW 2P 3PH 208V

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$7818.99

$

Usually ships in 2-12 days

0

Generac 0G2098

ASSY STR 390 25AD1 CPL

$5506.99

$

Usually ships in 2-12 days

0

Generac 0G2100

ASSY STR 390 25JD3 CPL

$5948.99

$

Usually ships in 2-12 days

0

Generac 0G1932

ASSY STR 390 25GD3 CPL

$5948.99

$

Usually ships in 2-12 days

0

Generac 0G2099

ASSY STR 390 25KD3 CPL

$5948.99

$

Usually ships in 2-12 days

0

3

0C9708

INSTR HYPOT TEST (NOT SHOWN)

$

$

Not available

4

ENGINE ADAPTER

$

$

Not available

5

FLEXPLATE

$

$

Not available

6

Generac 0F5767B

ASSY FLYWHEEL CPL W/40MM FAN B

$1415.99

$

Usually ships in 2-12 days

0

7

Generac 0E5706

REAR BEARING CARRIER 390/DRCT

$922.99

$

Usually ships in 2-12 days

0

8

Generac 0F7874

ASSY BRUSH HOLDER 390/HSB

$193.99

$

Usually ships in 2-12 days

0

9

Generac 0G0587

GUARD REAR BEARING CARRIER

$79.99

$

Usually ships in 2-12 days

0

10

Generac 038150

WASHER FLAT #8 ZINC
(Superseded to G038150)

$0.99

$

Usually ships in 2-12 days

0

11

Generac 023454

KEY WOODRUFF #E

$

$

Not available

12

Generac 077043E

CONDUIT FLEX 1.0" ID (35" LG)

$3.99

$

Usually ships in 2-12 days

0

13

Generac 04576100BU

STUD M14-2.0 570 G5 ZINC

$63.99

$

Usually ships in 2-12 days

0

14

Generac 052646

WASHER FLAT M14

$

$

Not available

15

Generac 043123

WASHER LOCK M14

$

$

Not available

16

Generac 051779

NUT HEX M14-2.0 G8 YEL CHR

$

$

Not available

17

Generac 0A2601

SCREW HHC M16-2.0 X 45 G8.8

$15.99

$

Usually ships in 2-12 days

0

18

Generac 0A2602

WASHER FLAT .688 ID X 3.25 OD

$17.99

$

Usually ships in 2-12 days

0

19

Generac 0F8408

SCREW HHC M10-1.50 X 16 G10.9

$2.49

$

In Stock, only 1 left!

0

20

Generac 046526

WASHER LOCK M10

$

$

Not available

21

Generac 0C3993

SCREW HHTT M4-0.7 X 25 BP

$3.99

$

Usually ships in 2-12 days

0

22

Generac 022264

WASHER LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

23

Generac 047248

BALL BEARING-45 MM

Note: ROTOR REPLACEMENT PARTS

$

$

Not available

24

Generac 070892

SLIP RING MACHINED

Note: ROTOR REPLACEMENT PARTS

$

$

Not available

25

Generac 0G0588

GUARD REAR BEARING CARRIER

$

$

Not available

26

Generac 077043A

CONDUIT FLEX .38" ID (60")

Note: ON MODELS 0020102 AND 0041643 USE 077043B

$1.99

$

Usually ships in 2-12 days

0
