ST03524KNSN - Generac 35kW Home Standby Generator (SN: 4530295 - 4688934) (2007) ENG Common Parts 2.4L G2 (0G1141) Parts Diagram

35kW Home Standby Generator

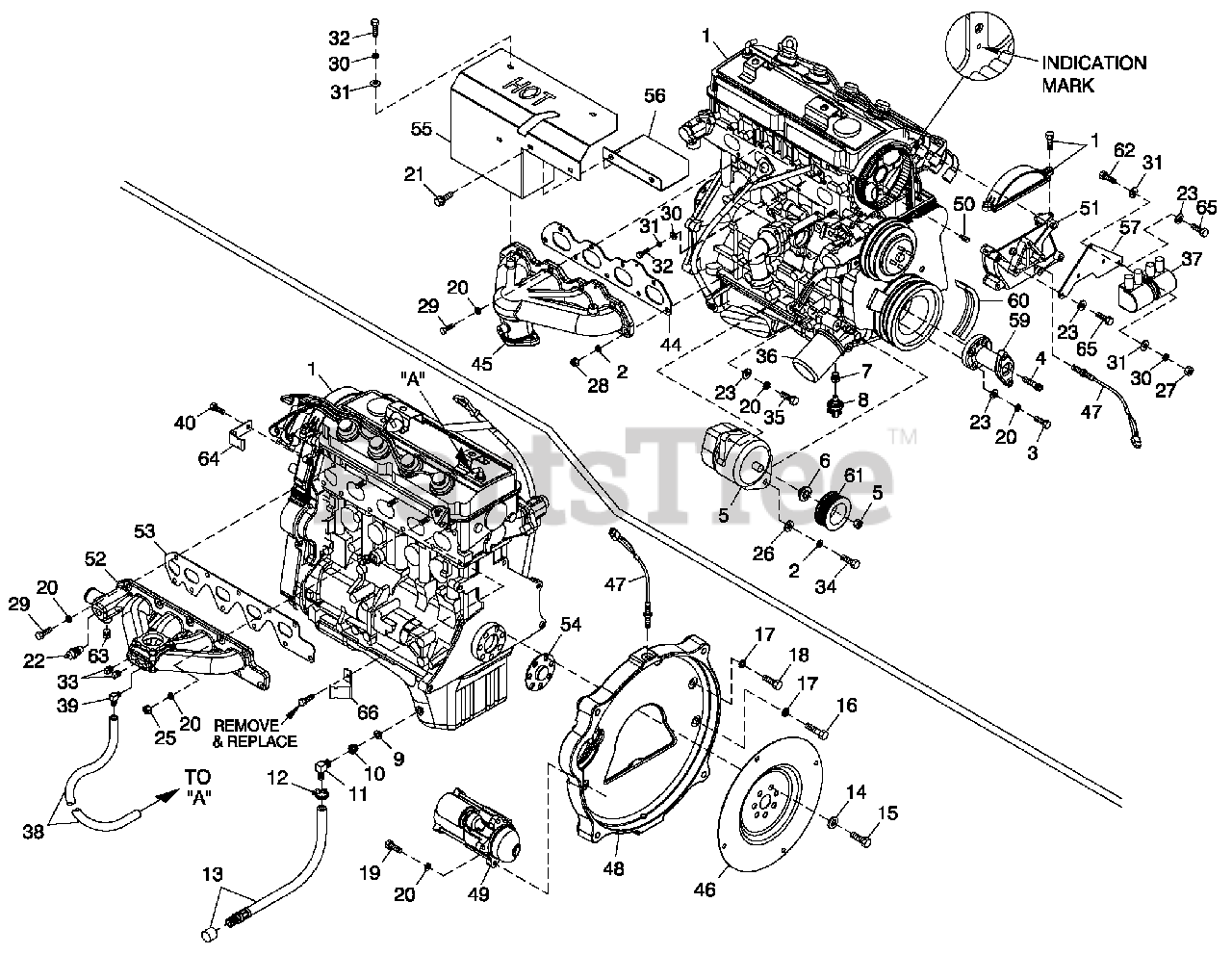

ENG Common Parts 2.4L G2 (0G1141) Parts Diagram

  • Title

1

Generac 0G0408

ENGINE 2.4L MITSUBISHI 4G64

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

2

Generac 046526

WASHER LOCK M10

$

$

Not available

3

Generac 039414

SCREW HHCM8-1.25X 35 G8.8
(Superseded to G039414)

$15.99

$

Usually ships in 2-12 days

0

4

Generac 0G0149

SCREW SHC M14-1.5 X 35 G10.9

$5.99

$

Usually ships in 2-12 days

0

5

Generac 0E9868A

ALTERNATOR DC W/OUT PULLEY

$519.99

$

Usually ships in 2-12 days

0

6

Generac 0F3217

SPACER DC ALTERNATOR PULLEY

Note: NOT USED ON 1800 RPM UNITS.. On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

7

Generac 042574

ADAPTOR 1/8 NPTF TO 1/8 BSPT

$

$

Not available

8

Generac 0A8584

SWITCH OIL PRESSURE 10 PSI 2 POL (R-PANEL)

Note: ON RV 410 AND 760 AND HSB 530 USE 0D9235

$168.99

$

Usually ships in 2-12 days

0

Generac 0F4612

SENDER OIL PRESSURE 1/8" NPT (H-PANEL)

$337.99

$

Usually ships in 2-12 days

0

9

Generac 057772

WASHER NYLON .565
(Superseded to G057772)

$2.99

$

Usually ships in 2-12 days

0

10

Generac 057765

ADAPTER M14-1.50X 3/8 NPT

$

$

Not available

11

Generac 043790

BARBED EL 90 3/8 NPT X 3/8

$

$

Not available

12

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

13

Generac 069860E

HOSE DRAIN ASSY 28"

$59.99

$

Usually ships in 2-12 days

0

14

Generac 063076

WASHER FLAT .531 ID X 1.062 OD

$

$

Not available

15

Generac 0G1394

SCREW HHC M12-1.25 X 20 G10.9

$8.99

$

Usually ships in 2-12 days

0

16

Generac 052830

SCREW HHC M10-1.25 X 45 G8.8

$

$

Not available

17

Generac 025507

WASHER SHAKEPROOF EXT 7/16 STL

$

$

Not available

18

Generac 062963

SCREW HHC M10-1.25 X 30 G8.8

$

$

Not available

19

Generac 049821

SCREW SHC M8-1.25 X 30 G12.9
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

20

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

21

Generac 0D6029

SCREW THF M6-1 X 16 N WA Z/JS

$18.99

$

Usually ships in 2-12 days

0

22

Generac 0A6751

SWITCH HI-TEMP 245D X 3/8 NPT (R-PANEL)

$93.99

$

Usually ships in 2-12 days

0

Generac 0E0502

TEMPERATURE SENDER DELPHI (H-PANEL)

$53.99

$

Usually ships in 2-12 days

0

23

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

25

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

26

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

27

Generac 049813

NUT HEX M6 X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

28

Generac 046525

NUT HEX M10-1.25 G8 YEL CHR

$

$

Not available

29

Generac 058306

SCREW SHC M8-1.25 X 25 G12.9
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

30

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

31

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

32

Generac 043116

SCREW HHC M6-1.0X 12 G8.8
(Superseded to G043116)

$0.99

$

Usually ships in 2-12 days

0

33

Generac 026073A

PLUG STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

34

Generac 052243

SCREW HHC M10-1.5X 60 G8.8

$

$

Not available

35

Generac 0A8258

SCREW HHC M8-1.25 X 25 G10.9

$0.99

$

Usually ships in 2-12 days

0

36

0G0664

OIL FILTER G2 ENGINE

Note: SUPPLIED WITH ENGINE.

$

$

Not available

37

Generac 0G1502

COIL PACK

$207.99

$

Usually ships in 2-12 days

0

38

Generac 047290

HOSE 3/8 ID SINGLE BRAID (15" LG)
(Superseded to G047290)

$10.99

$

In Stock, only 1 left!

0

39

Generac 049340

BARBED EL 90 1/4 NPT X 3/8

$

$

Not available

40

Generac 045757

SCREW HHC M6-1.0X 25 G8.8
(Superseded to G045757)

Note: USED WITH H-PANEL ONLY

$0.99

$

Usually ships in 2-12 days

0

44

Generac 0G0951

GASKET EXHAUST MANIFOLD

Note: SUPPLIED WITH ENGINE.

$35.99

$

In Stock, only 1 left!

0

45

Generac 0G3910

EXHAUST MANIFOLD G2 (MACHINE)

$272.99

$

Usually ships in 2-12 days

0

46

Generac 0F9965E

FLEX PLATE 2 POLE 2.4L G2

$51.99

$

Usually ships in 2-12 days

0

47

Generac 0D2244M

ASSY MAGPICKUP(3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

48

Generac 0F9420

ADAPTER ENGINE 2.4L MACHINE

$675.99

$

Usually ships in 2-12 days

0

49

Generac 0E9747

STARTER, 12 VOLT

Note: ORDER P/N 0G7461RWK. SPACER NOT REQUIRED IF UNIT DOES NOT HAVE ONE. IF UNIT WAS SHIPPED WITH SPACER AND SPACER IS DAMAGED ORDER SPACER P/N 0G0860.

$

$

Not available

50

Generac 0G1472A

CAM SENSOR PIN ASSY

$27.99

$

Usually ships in 2-12 days

0

51

Generac 0G1476

COVER CAM GEARG2 REWORKED

Note: ORDER P/N 0G1477.

$

$

Currently unavailable

52

Generac 0G0707

MANIFOLD INTAKE

$258.99

$

Usually ships in 2-12 days

0

53

Generac 0G0950

GASKET INTAKE MANIFOLD

Note: SUPPLIED WITH ENGINE.

$63.99

$

Usually ships in 2-12 days

0

54

Generac 0F9583

SPACER 2.4L G2 FLEX PLATE

$31.99

$

Usually ships in 2-12 days

0

55

Generac 0G0792

SHIELD HEAT G2

$19.99

$

Usually ships in 2-12 days

0

56

Generac 0G0792A

SHIELD HEAT SML

$11.99

$

Usually ships in 2-12 days

0

57

Generac 0G1501

BRACKET COIL PACK

$35.99

$

Usually ships in 2-12 days

0

59

Generac 0F9501

ADAPTER 2.4L CRANKSHAFT MACH

$68.99

$

Usually ships in 2-12 days

0

60

Generac 0G0952

POLY V-BELTG2 (3600 RPM)

Note: SUPPLIED WITH ENGINE.

$67.99

$

Usually ships in 2-12 days

0

Generac 0D3488S

BELT SERPENTINE 37.0" (1800 RPM)

$28.99

$

Usually ships in 2-12 days

0

61

Generac 0G0788

PULLEY DC ALTERNATOR (3600 RPM)

$35.99

$

Usually ships in 2-12 days

0

Generac 0G2750

PULLEY 69 OD DC ALTERNATOR (1800 RPM)

Note: NO LONGER AVAILABLE. MUST ORDER QTY 1 0H8572 PULLEY AND QTY 1 0F3217 SPACER

$

$

Not available

62

Generac 049721

SCREW HHC M6-1.0 X 35 G8.8 BLK
(Superseded to G049721)

$9.49

$

In Stock, Qty 5

0

63

Generac 026925

PLUG STD PIPE 3/8 STEEL SQ HD
(Superseded to G026925)

$2.49

$

In Stock, only 1 left!

0

64

Generac 0F2776

BRACKET, SIGNAL CONDITIONER

Note: USED WITH H-PANEL ONLY

$3.49

$

Usually ships in 2-12 days

0

65

Generac 052203

SCREW HHC M8-1.25X 70 G8.8

$

$

Not available

66

0F2776D

BRACKET SIGNAL CONDITONER

Note: USED WITH H-PANEL ONLY

$

$

Not available
