ST03015JNSX - Generac 30kW Home Standby Generator (SN: 7369418 - 7369418) (2012) EV Cooling System 1.5L (0J4592) Parts Diagram

30kW Home Standby Generator

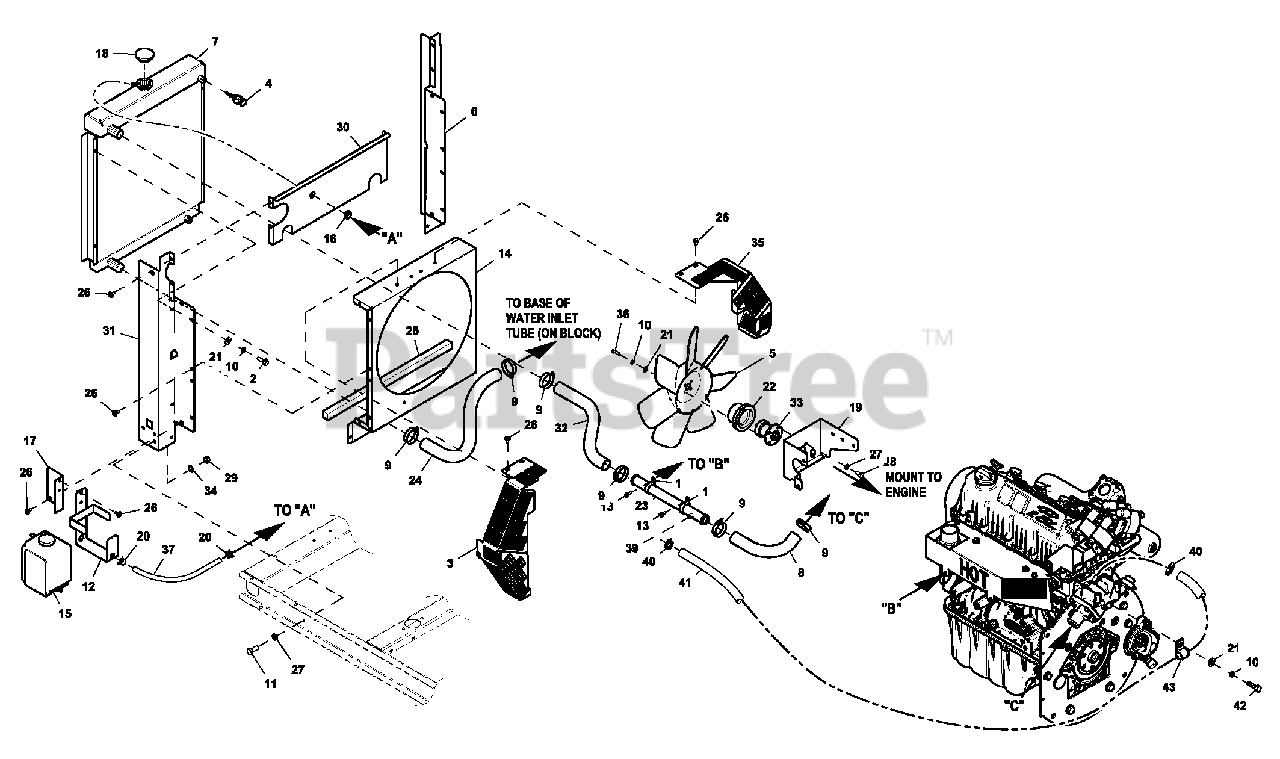

EV Cooling System 1.5L (0J4592) Parts Diagram

  • Title
1

Generac 055934N

CLAMP STL/VNL 1.31 X .281 Z

$4.49

$

Usually ships in 2-12 days

0

2

Generac 0C8566

SCREW HHFC M6-1.0X20 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$9.49

$

Usually ships in 2-12 days

0

3

Generac 0G3573

GUARD FAN LH C1

$44.99

$

Usually ships in 2-12 days

0

4

Generac 0H1827

PROBE COOLANT LEVEL 3/8-18NPTF

$48.99

$

Usually ships in 2-12 days

0

5

Generac 0G3553

FAN COOL 450MM DIA 7 BLADE

$70.99

$

Usually ships in 2-12 days

0

6

Generac 0G3419

RADIATOR SUPPORT RH SIDE 1.6L

$107.99

$

Usually ships in 2-12 days

0

7

Generac 0E9837B

RADIATOR 1.6LG11

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS. THIS RADIATOR USES ONE OF TWO CAPS 0G0427 IS 1.75 INCHES HIGH, 046627 IS 1.25 INCHES HIGH

$1103.99

$

Usually ships in 2-12 days

0

8

Generac 0J4545

HOSE REAR COOLANT 1.5L

$44.99

$

Usually ships in 2-12 days

0

9

Generac 099502

CLAMP HOSE #24 B1.06-2.00

$

$

Not available

10

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

11

Generac 039253

SCREW HHC M8-1.25X20 C8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

12

Generac 080713

BRACKET COOLANT TANK

$

$

Not available

13

Generac 0E3257

SCREW HWHTF M6-1.0 X 16

$5.49

$

Usually ships in 2-12 days

0

14

Generac 0G3421

VENTURI 1.6L

$209.99

$

Usually ships in 2-12 days

0

15

Generac 076749

TANK COOLANT RECOVERY
(Superseded to G076749)

$39.99

$

Usually ships in 2-12 days

0

16

Generac 0F9504

GROMMET 5/8"X 1 1/8"X5/16"

$2.99

$

Usually ships in 2-12 days

0

17

Generac 0J4363

BRACKET COOLANT OVERFLOW TANK

$17.99

$

Usually ships in 2-12 days

0

18

Generac 046627

CAP RADIATOR 14PSI

$20.99

$

Usually ships in 2-12 days

0

19

0G34330ST0R

BRKT FAN ALT ADAPTER 1.6L RAW

Note: SHEET M ETAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATRIAL AND COLOR REFER TO XA BOM., CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRE

$

$

Not available

20

Generac 048031C

CLAMP HOSE BAND .50

$0.99

$

In Stock, Qty 5

0

21

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

22

Generac 0A2628

PULLEY - FAN 95 DIA

$58.99

$

Usually ships in 2-12 days

0

23

0J4717

TUBE ENGINE COOLANT 1.5L

$

$

Not available

24

Generac 0G4080

HOSE LOWER RADIATOR 1.6L

$98.99

$

Usually ships in 2-12 days

0

25

Generac 052250

TAPE FOAM 1X1

$

$

Not available

26

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

27

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

28

Generac 042907

SCREW HHC M8-1.25X 16 C8.8
(Superseded to G042907)

Note: APPLY LOCTITE 242 TO I/N 28 & 36 BEFORE THREADING INTO I/N 33.

$2.49

$

In Stock, only 4 left!

0

29

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

30

Generac 0G3420

RADIATOR BLOCK-OFF

$248.99

$

Usually ships in 2-12 days

0

31

Generac 0G3418

RADIATOR SUPPORT LH SIDE 1.6L

$107.99

$

Usually ships in 2-12 days

0

32

Generac 0G4071

HOSE UPPER RADIATOR 1.6L

$51.99

$

Usually ships in 2-12 days

0

33

Generac 0G0568

ASSY FAN BEARING SUPPORT

$157.99

$

Usually ships in 2-12 days

0

34

Generac 027482

WASHER LOCK EXT 5/16 STL

$

$

Not available

35

Generac 0G3574

GUARD FAN RH C1

$58.99

$

Usually ships in 2-12 days

0

36

Generac 042568

SCREW HHC M6-1.0X20 C8.8

$

$

Not available

37

Generac 029032

HOSE 9/32 ID (46.5" LG)
(Superseded to G029032)

$6.49

$

Usually ships in 2-12 days

0

38

Generac 029333A

TIE WRAP UL 7.4"X .19" BLK (NOT SHOWN)

$0.99

$

Usually ships in 2-12 days

0

39

Generac 032552

BARBED EL 90 5/16X 1/8NPT

$

$

Not available

40

Generac 0C7649

CLAMP HOSE .38- 87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

41

Generac 0C7997

HOSE COOL 5/16" SAE 20R3 (33"LG)

$22.99

$

Usually ships in 2-12 days

0

42

Generac 047411

SCREW HHC M6-1.0 X 16 C8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

43

Generac 055934H

CLAMP STL/VNL .62X.406Z

$3.49

$

Usually ships in 2-12 days

0
