ST 927 E - Husqvarna 27" Snow Blower (1998-01) Gear Case Assembly Parts Diagram

27" Snow Blower

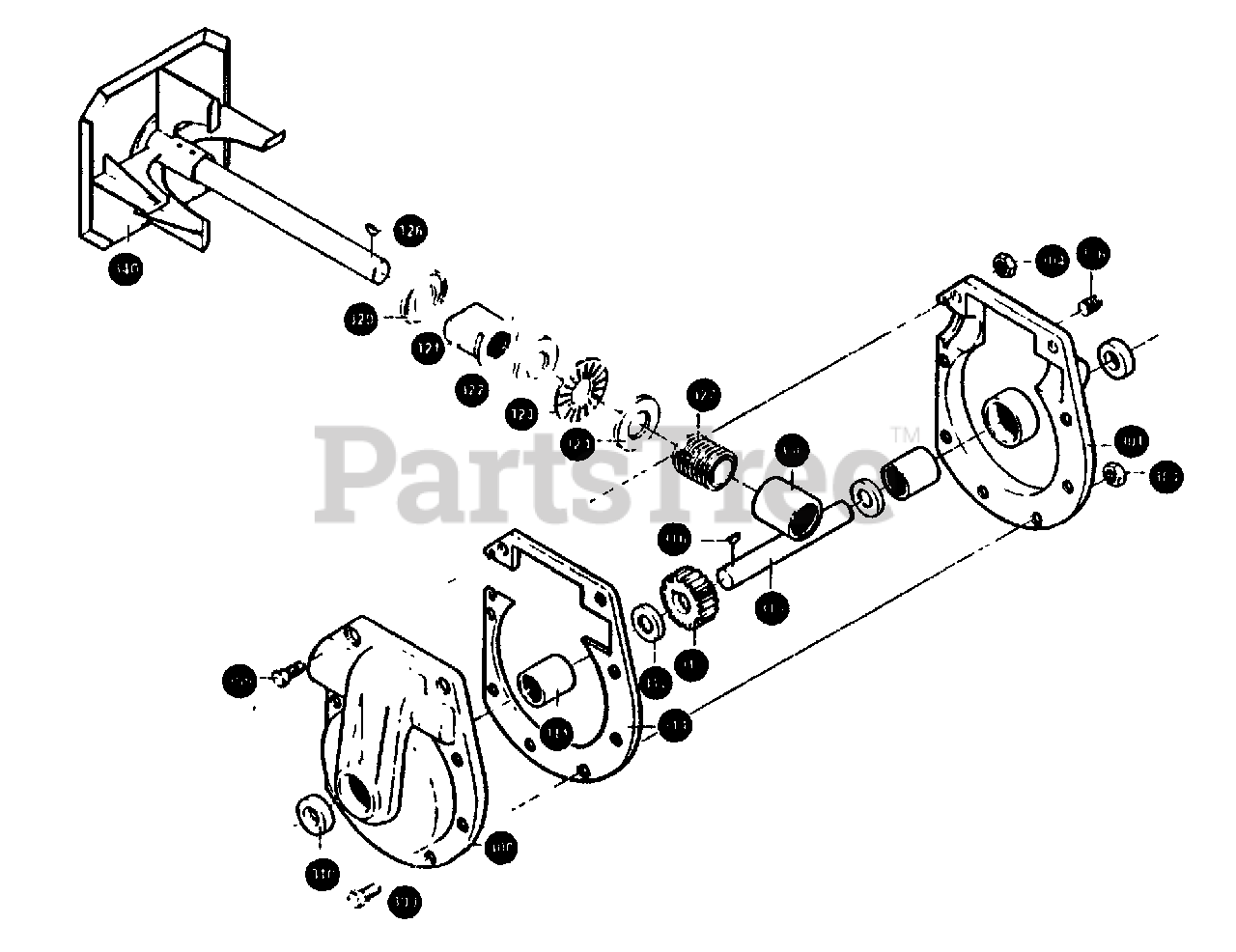

Gear Case Assembly Parts Diagram

  • Title
300

Husqvarna 601001487

CASE. GEAR RH

$

$

Not available

301

Husqvarna 601001488

CASE. GEAR LH

$

$

Not available

303

Husqvarna 601001443

SCREW, 5/16-201.00

$

$

Not available

304

Husqvarna 601000623

NUT, 5/16-24

$

$

Not available

305

Husqvarna 601001607

SCREW, 5/16-24X1.50

$

$

Not available

306

$

$

Not available

310

$14.99

$

Usually ships in 3-10 days

0

311

Husqvarna 601001492

BEARING. SLEEVE

$

$

Not available

312

Husqvarna 601001493

WASHER, FLAT

$

$

Not available

313

Husqvarna 601002325

SHAFT, AUGER OUTPUT

$

$

Not available

314

Husqvarna 601001495

GASKET, GEAR BOX

$

$

Not available

315

$

$

Not available

316

$

$

Not available

320

Husqvarna 601001498

RING, QUAD

$

$

Not available

321

$

$

Not available

322

Husqvarna 601002326

FLATWASHER .752X1.24X.093PL
(Superseded to 601001500)

$

$

Not available

323

Husqvarna 601001501

BEARING, ROLL

$

$

Not available

324

Husqvarna 601002326

FLATWASHER .752X1.24X.093PL
(Superseded to 601001500)

$

$

Not available

326

Husqvarna 601001502

KEY. HI-PRO

$

$

Not available

327

$

$

Not available

330

Husqvarna 601001504

BEARING. SLEEVE

$

$

Not available

340

Husqvarna 601001505

IMPEL, ASSY
(Superseded to 601002484)

$

$

Not available
