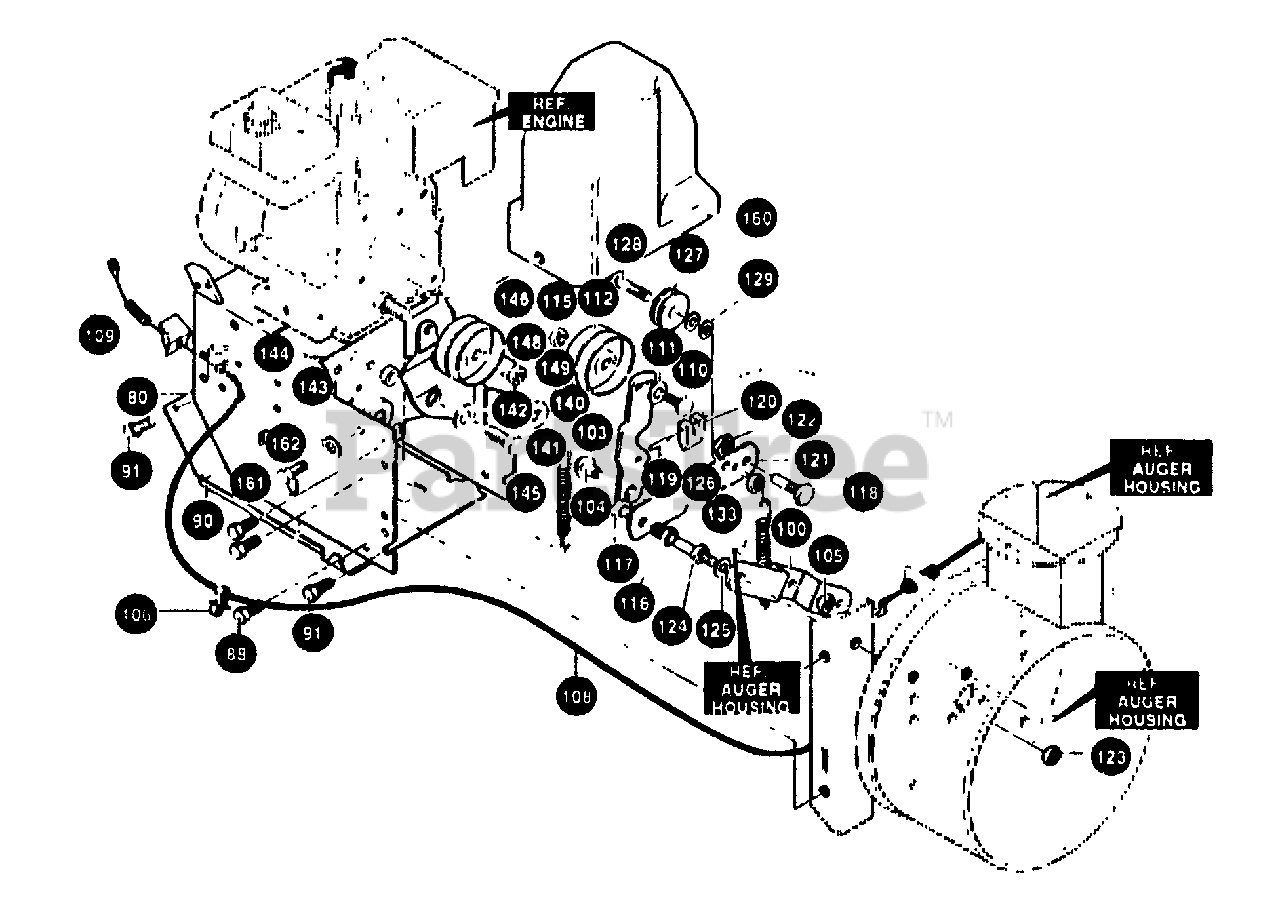

ST 927 E - Husqvarna 27" Snow Blower (1998-01) Frame Components Assembly Parts Diagram

27" Snow Blower

Frame Components Assembly Parts Diagram

  • Title

80

Husqvarna 601002163

FRAME, ASSY

$

$

Not available

88

Husqvarna 601000519

SCREW, 5/16-18X .50

$

$

Not available

90

Husqvarna 601001739

COVER, BOTTOM

$

$

Not available

91

Husqvarna 601001445

SCREW, 1/4-20X .63

$

$

Not available

100

Husqvarna 601002347

PLATE, CLUTCH ARM

$

$

Not available

103

Husqvarna 601002406

BRACKET, IDLER

$

$

Not available

104

Husqvarna 601002349

BOLT, HHSH 3/8-16

$

$

Not available

105

Husqvarna 601002407

NUT, 3/8-16 CTRLK

$

$

Not available

106

Husqvarna 601002027

CLIP, CABLE

$

$

Not available

108

Husqvarna 601002164

CABLE, AUGER

$28.99

$

Usually ships in 3-10 days

0

109

Husqvarna 601002030

SHIELD, CABLE GUARD

$

$

Not available

110

Husqvarna 601001598

C. BOLT, 3/8-16X1.25

$

$

Not available

111

Husqvarna 601000671

FLATWASHER

$

$

Not available

112

Husqvarna 601001454

PULLEY, IDLER

$

$

Not available

115

Husqvarna 601001335

NUT, 3/8-16

$

$

Not available

116

Husqvarna 601001602

BOLT, BRAKE ARM

$

$

Not available

117

Husqvarna 601001601

NUT, 9/16-18 JAMCTRLK

$

$

Not available

118

Husqvarna 601001604

BOLT BRAKE ARM

$

$

Not available

119

Husqvarna 601001451

SPRING PIN

$

$

Not available

120

Husqvarna 601001459

PAD, AUGER/IMP

$

$

Not available

121

Husqvarna 601002468

BRACKET PUCK

$

$

Not available

122

Husqvarna 601001603

NUT. 1/2-20 JAMCTRLK

$

$

Not available

123

Husqvarna 601000060

NUT, 3/8-16 RGHXCTRLK
(Superseded to 601002407)

$

$

Not available

124

Husqvarna 601002409

STUD. BRAKE ARM

$

$

Not available

125

Husqvarna 601000015

WASHER, REGSPTLK

$

$

Not available

126

Husqvarna 601002318

NUT, 1/4-20 RGHXCTRLK

$11.99

$

In Stock, only 2 left!

0

127

Husqvarna 601000560

PULLEY, METAL

$11.99

$

Usually ships in 3-10 days

0

128

Husqvarna 601002059

BOLT, SH 1/4-20

$

$

Not available

129

Husqvarna 601000017

FLATWASHER

$

$

Not available

133

Husqvarna 601002060

SPRING, IDLER BRAKE

$

$

Not available

140

Husqvarna 601001461

LEVER, IDLER ARM

$

$

Not available

141

Husqvarna 601000073

SCREW, 5/16-18X .75

$

$

Not available

142

Husqvarna 601001462

WASHER. FLAT .328X1.25X.075

$

$

Not available

143

Husqvarna 601001463

BUSHING, IDLER LEVER

$

$

Not available

144

Husqvarna 601001464

NUT, 5/16-18 HEXNYL

$

$

Not available

145

Husqvarna 601001089

IDLER SPRING

$

$

Not available

146

Husqvarna 601001740

SCREW, 3/8-16X1.25

$

$

Not available

148

Husqvarna 601001454

PULLEY, IDLER

$

$

Not available

149

Husqvarna 601001335

NUT, 3/8-16

$

$

Not available

160

Husqvarna 601001465

COVER. BELT

$

$

Not available

161

Husqvarna 601001445

SCREW, 1/4-20X .63

$

$

Not available

162

Husqvarna 601000018

WASHER. FLAT .281X .63X.065

$

$

Not available
