ST 927 E - Husqvarna 27" Snow Blower (1998-01) Engine Assembly Parts Diagram

27" Snow Blower

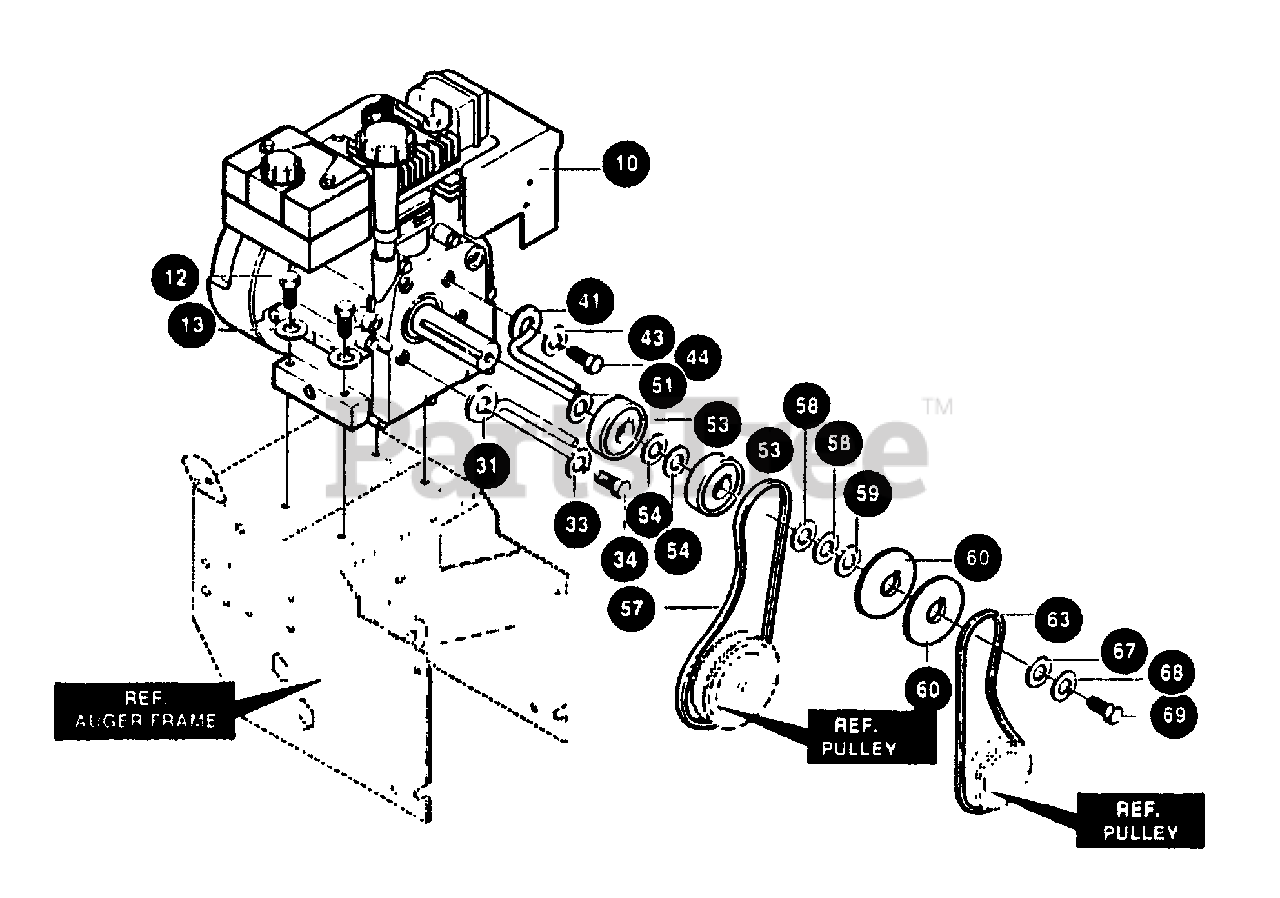

Engine Assembly Parts Diagram

  • Title
10

ENGINE 9HP

Note: (See Engine Manual)

$

$

Not available

12

Husqvarna 601001592

SCREW 5/16-18X1.50

$

$

Not available

13

Husqvarna 601000023

WASHER, .328X.60X.09

$

$

Not available

31

Husqvarna 601001432

GUIDE, ROD BELT RH

$

$

Not available

33

Husqvarna 601000023

WASHER,.328X.60X.09

$

$

Not available

34

Husqvarna 601001443

SCREW, 5/16-24X 1.00

$

$

Not available

41

Husqvarna 601001432

GUIDE, ROD BELT RH

$

$

Not available

43

Husqvarna 601000023

WASHER, .328X.60X.09

$

$

Not available

44

Husqvarna 601001443

SCREW, 5/16-24X 1.00

$

$

Not available

51

Husqvarna 601001434

WASHER, CRANKSHAFT

$

$

Not available

53

Husqvarna 601001436

PULLEY, HALF

$

$

Not available

54

Husqvarna 601001435

FLATWASHER .752X.91 X.0

$

$

Not available

57

Husqvarna 601001437

BELT. V 3L 33.13LG

$19.99

$

In Stock, Qty 20+

0

58

Husqvarna 601001438

FLATWASHER .765X 1.12X.06

$

$

Not available

59

Husqvarna 601002020

SPACER, SLEEVE

$

$

Not available

60

Husqvarna 601002021

PULLEY. ENGINE

$

$

Not available

63

Husqvarna 601001594

BELT. V 4L 38.1 LG

$22.99

$

In Stock, Qty 20+

0

67

Husqvarna 601001441

WASHER, FLAT

$

$

Not available

68

Husqvarna 601000015

WASHER, 393X.68X.10

$

$

Not available

69

Husqvarna 601000527

SCREW, 3/8-24X1.00

$

$

Not available
