ST 927 E - Husqvarna 27" Snow Blower (1998-01) Auger Housing Assembly Parts Diagram

27" Snow Blower

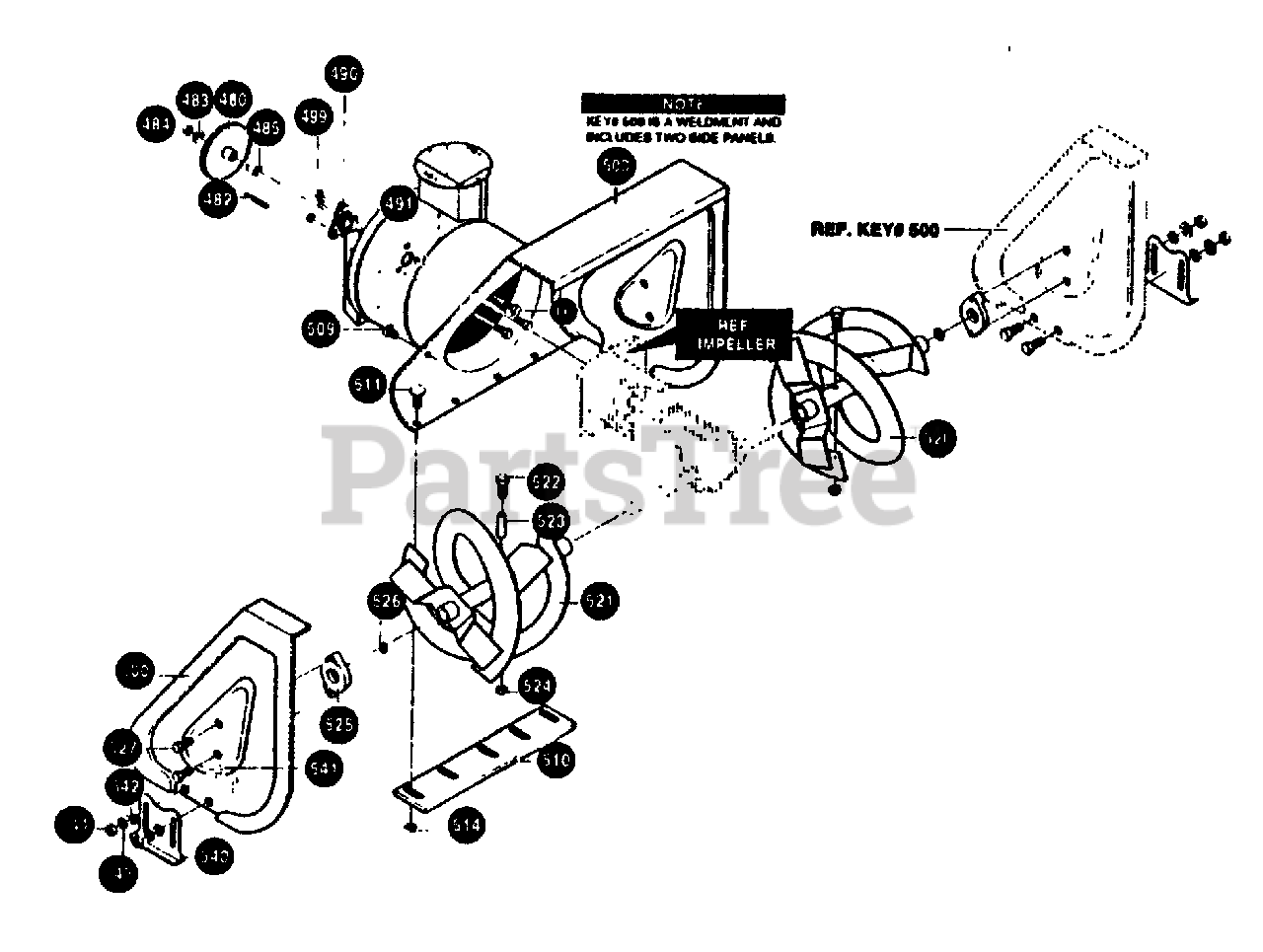

Auger Housing Assembly Parts Diagram

  • Title

480

Husqvarna 601001609

PULLEY, V4L 8.40 OD

$

$

Not available

482

Husqvarna 601001507

KEY, SQUARE

$

$

Not available

483

Husqvarna 601001446

WASHER, FLAT .53 X1.00X.063

$

$

Not available

484

Husqvarna 601000107

NUT, 1/2-20

$

$

Not available

485

Husqvarna 601001610

SPACER, SLEEVE

$

$

Not available

490

Husqvarna 601001509

RETAINER, BALL

$

$

Not available

491

Husqvarna 601000539

BEARING, BALL
(Superseded to 601000565)

$

$

Not available

493

Husqvarna 601000073

SCREW, 5/16-18X .75

$

$

Not available

499

Husqvarna 601002036

NUT, 5/16-18

$

$

Not available

500

Husqvarna 601002402

HSNG, ASSY

$

$

Not available

509

Husqvarna 601002174

PLUG

$

$

Not available

510

Husqvarna 601002403

BLADE, SCRAPER

$

$

Not available

511

Husqvarna 601001411

BOLT, 5/16-18X 75

$

$

Not available

514

Husqvarna 601002036

NUT, 5/16-18

$

$

Not available

520

Husqvarna 601002404

AUGER, ASSY LH

$

$

Not available

521

Husqvarna 601002405

AUGER, ASSY RH

$

$

Not available

522

Husqvarna 601001456

SCREW, 1/4-20X1.75

$

$

Not available

523

Husqvarna 601001517

SPACER. SLEEVE

$5.99

$

In Stock, Qty 6

0

524

Husqvarna 601002318

NUT. 1/4-20 RGHXCTRLK

$11.99

$

In Stock, only 2 left!

0

525

Husqvarna 601001518

AUGER SHAFT BEARING

$

$

Not available

526

Husqvarna 601001519

FLATWASHER 1.005X1.31X.035

$

$

Not available

527

Husqvarna 601000520

SCREW, 5/16-18X .75

$

$

Not available

540

Husqvarna 601001745

SKID. HEIGHT ADJUST

$

$

Not available

541

Husqvarna 601001411

BOLT, 5/16-18X .75

$

$

Not available

542

Husqvarna 601000019

FLATWASHER .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

543

Husqvarna 601000023

WASHER 328X.60X.09

$

$

Not available

544

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available
