ST 927 E - Husqvarna 27" Snow Blower (1997-11) Wheels Assembly Parts Diagram

27" Snow Blower

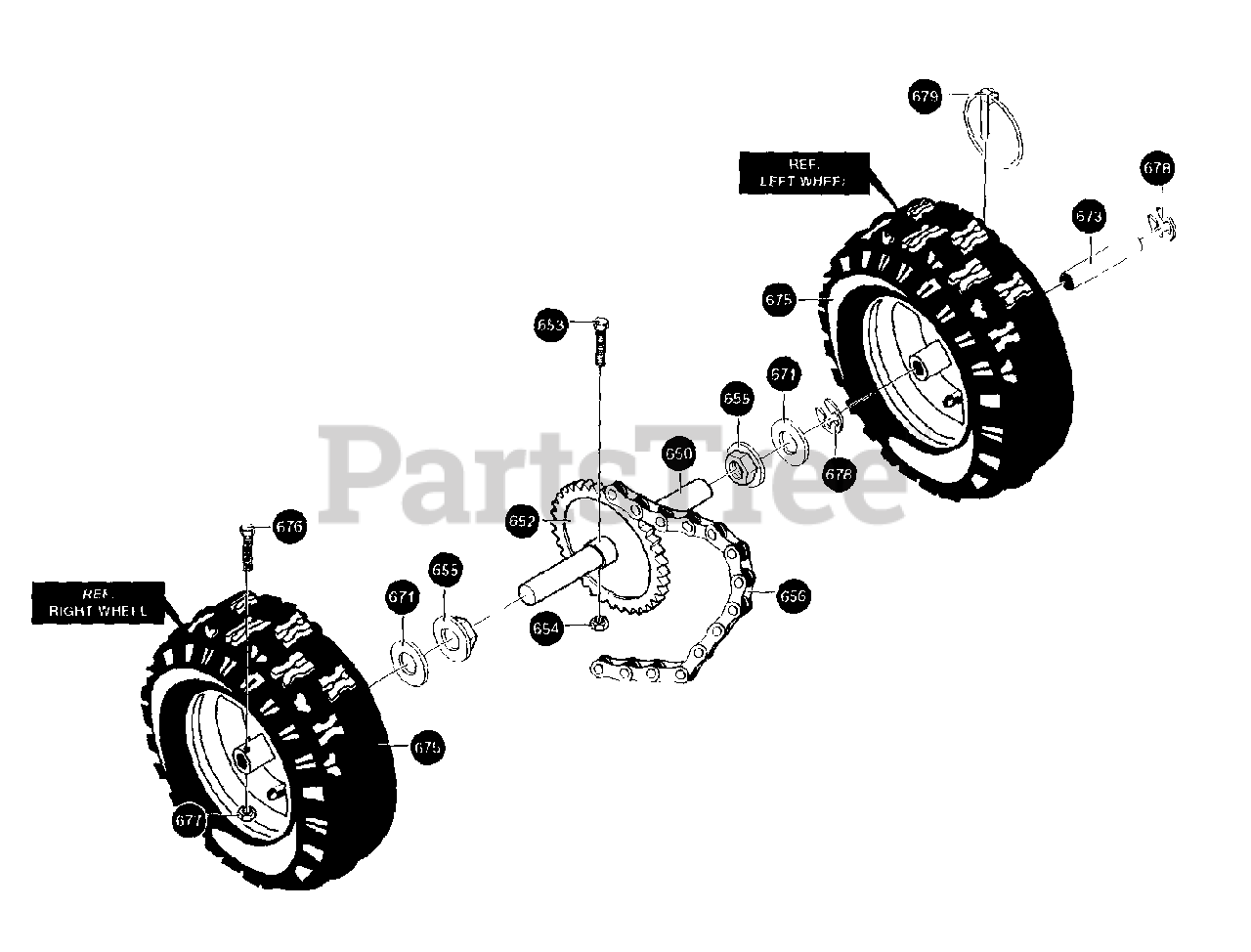

Wheels Assembly Parts Diagram

  • Title
650

Husqvarna 601001653

SHAFT, AXLE

$

$

Not available

652

Husqvarna 601001654

SPROCKET, HUB

$

$

Not available

653

Husqvarna 601001535

SCREW, 1/4-20 X 2.25

$

$

Not available

654

Husqvarna 601000062

NUT, 1/4-20 RGHXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

655

Husqvarna 601001536

BEARING, FLANGED

$24.99

$

In Stock, only 2 left!

0

656

Husqvarna 601001655

CHAIN, ROLLER

$

$

Not available

671

Husqvarna 601001438

FLATWASHER .765 X 1.12 X .06

$

$

Not available

673

Husqvarna 601001746

BUSHING, WHEEL

$

$

Not available

675

Husqvarna 601001656

TIRE & RIM

$

$

Not available

676

Husqvarna 601001539

SCREW, 1/4-20 X 1.75

$

$

Not available

677

Husqvarna 606000062

NUT, 1/4-20 RGHXCTRLK

$

$

Not available

678

Husqvarna 601001540

RING, RETAINING

$

$

Not available

679

Husqvarna 601001541

PIN KLIK .25 X 1.38 DIA

$

$

Not available
