ST 927 E - Husqvarna 27" Snow Blower (1997-11) Engine Assembly Parts Diagram

27" Snow Blower

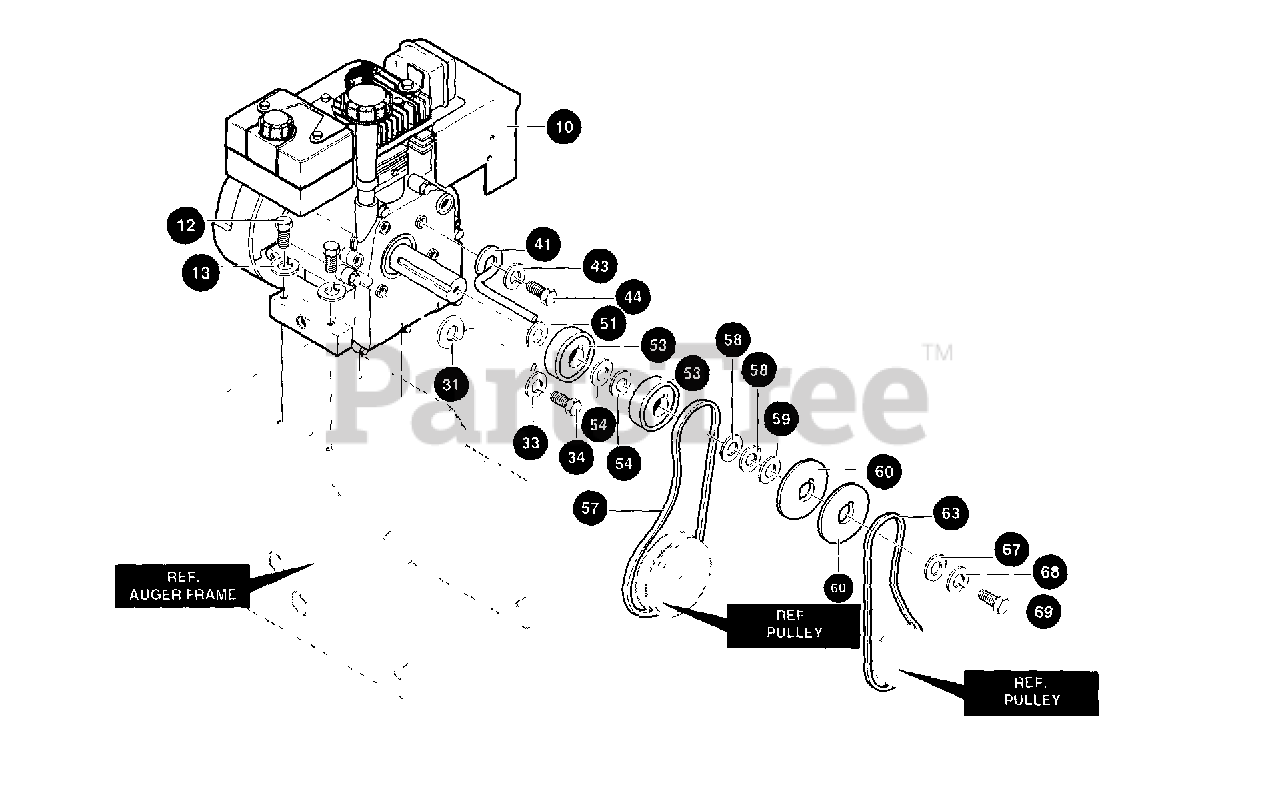

Engine Assembly Parts Diagram

  • Title

10

ENGINE, 7 HP

Note: (See Engine Manual)

$

$

Not available

12

Husqvarna 601002162

SCREW, 5/16-18

$

$

Not available

13

Husqvarna 601000023

WASHER, .328 X .60 X .09

$

$

Not available

31

Husqvarna 601001432

GUIDE, ROD BELT RH

$

$

Not available

33

Husqvarna 601000023

WASHER, .328 X .60 X .09

$

$

Not available

34

Husqvarna 601001433

SCREW, 5/16-24 X .625

$

$

Not available

41

Husqvarna 601001432

GUIDE, ROD BELT RH

$

$

Not available

43

Husqvarna 601000023

WASHER, .326 X .60 X .09

$

$

Not available

44

Husqvarna 601001433

SCREW, 5/16-24 X .625

$

$

Not available

51

Husqvarna 601001434

WASHER, CRANKSHAFT

$

$

Not available

53

Husqvarna 601001436

PULLEY, HALF

$

$

Not available

54

Husqvarna 601001435

FLATWASHER .752 X .91 X .02

$

$

Not available

57

Husqvarna 601001437

BELT, V 3L 33.13LG

$19.99

$

In Stock, Qty 20+

0

58

Husqvarna 601001438

FLATWASHER .765 X 1.12 X .06

$

$

Not available

59

Husqvarna 601002020

SPACER, SLEEVE

$

$

Not available

60

Husqvarna 601002021

PULLEY, ENGINE

$

$

Not available

63

Husqvarna 601001594

BELT, V 4L 38.1

$22.99

$

In Stock, Qty 20+

0

67

Husqvarna 601001441

FLATWASHER

$

$

Not available

68

Husqvarna 601000015

WASHER, .393 X .68 X .10

$

$

Not available

69

Husqvarna 601000527

SCREW, 3/8-24 X 1.00

$

$

Not available
