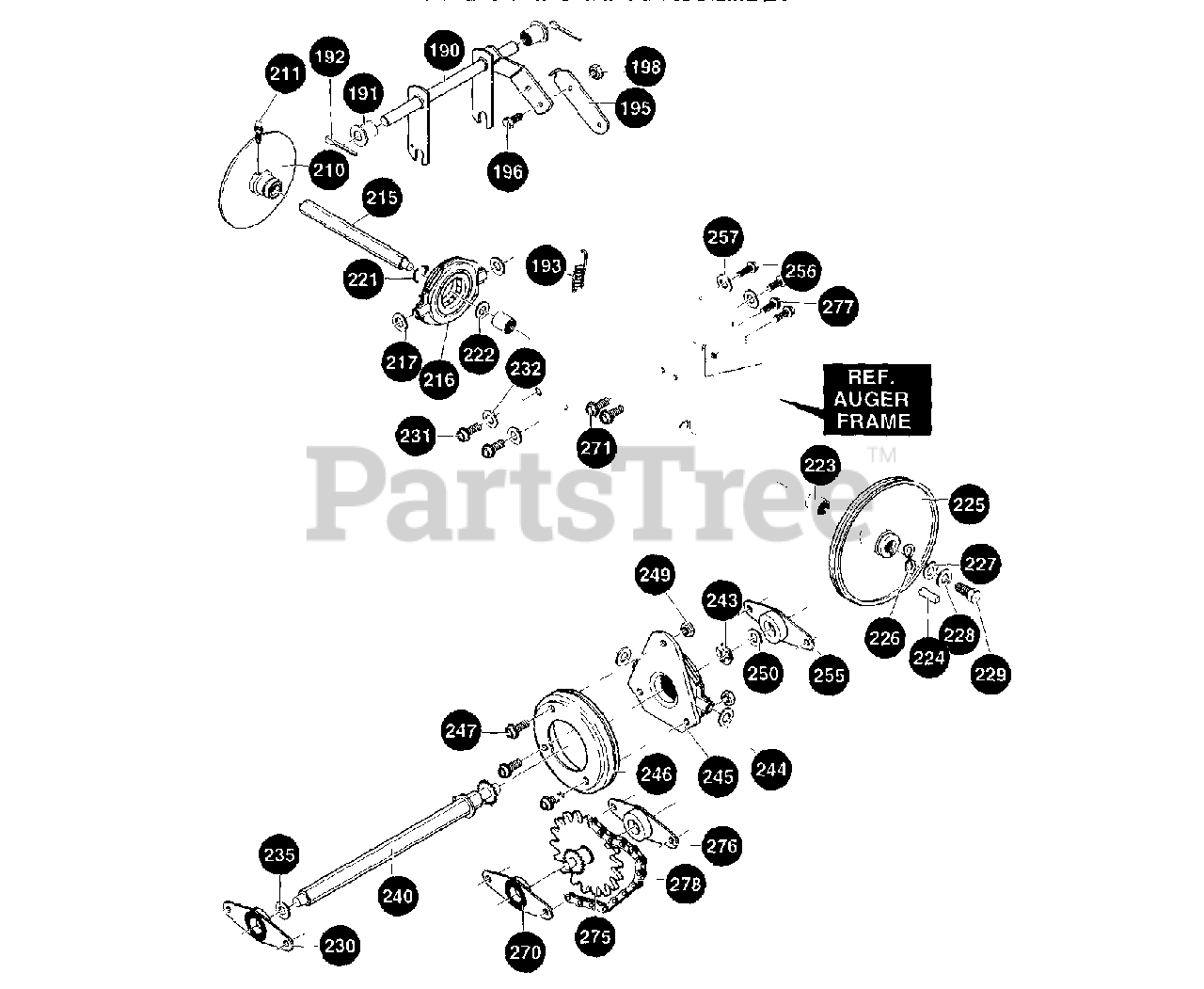

ST 927 E - Husqvarna 27" Snow Blower (1997-11) Drive Components Assembly Parts Diagram

27" Snow Blower

Drive Components Assembly Parts Diagram

  • Title

190

Husqvarna 601001466

LEVER, ASSY TRACTION

$

$

Not available

191

Husqvarna 601001447

BEARING, FLANGE

$

$

Not available

192

Husqvarna 601000930

PIN, COTTER

$

$

Not available

193

Husqvarna 601001467

SPRING, RETURN

$

$

Not available

195

Husqvarna 601001468

LEVER, SPRING

$

$

Not available

196

Husqvarna 601001374

SCREW, 1/4-20X 63

$

$

Not available

198

Husqvarna 601000062

NUT, 1/4-20
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

210

Husqvarna 601002031

DISC, ASSY

$

$

Not available

211

Husqvarna 601001470

ZERK, GREASE

$

$

Not available

215

Husqvarna 601001471

SHAFT, HEX TRACTION

$

$

Not available

216

Husqvarna 601001472

BEARING, TRUNION

$

$

Not available

217

Husqvarna 601001446

FLATWASHER, .53 X 1.00 X .063

$

$

Not available

221

Husqvarna 601001474

RING, RETEX

$

$

Not available

222

Husqvarna 601001475

FLATWASHER, .680 X 1.12 X .060

$

$

Not available

223

Husqvarna 601000539

BEARING, BALL
(Superseded to 601000565)

$

$

Not available

224

Husqvarna 601001476

KEY, SQUARE

$

$

Not available

225

Husqvarna 601001477

PULLEY, V3L 6.50 X .56

$

$

Not available

226

Husqvarna 601001478

WASHER, WAVE

$

$

Not available

227

Husqvarna 601000003

FLATWASHER, .281 X 1.00 X .063

$

$

Not available

228

Husqvarna 601000014

WASHER, .263 X .49 X .07

$

$

Not available

229

Husqvarna 601000068

SCREW, 1/4-20 X 75

$

$

Not available

230

Husqvarna 601001479

BEARING & RETAINER

$

$

Not available

231

Husqvarna 601000519

SCREW, 5/16-18 X 50

$

$

Not available

232

Husqvarna 601000023

WASHER, .325 X .60 X .09

$

$

Not available

235

Husqvarna 601001484

WASHER, .502 X .75 X .0605

$

$

Not available

240

Husqvarna 601002032

HEX, ASSY 440-8T
(Superseded to 601002475)

$

$

Not available

243

Husqvarna 601002033

RING, RETEX

$

$

Not available

244

Husqvarna 601001446

FLATWASHER, .53 X 1.00 X .063

$

$

Not available

245

Husqvarna 601001741

BEARING, TRUNION

$

$

Not available

246

Husqvarna 601001483

WHEEL, ASSY FRICTION

$27.99

$

In Stock, Qty 9

0

247

Husqvarna 601001374

SCREW, 1/4-20X 63

$

$

Not available

249

Husqvarna 601001790

NUT, 1/4-20 HEXKEPS

$

$

Not available

250

Husqvarna 601001484

WASHER, .502 X .75 X .0605

$

$

Not available

255

Husqvarna 601001479

BEARING 8 RETAINER

$

$

Not available

256

Husqvarna 601000519

SCREW, 5/16-18X 50

$

$

Not available

257

Husqvarna 601000023

WASHER, 328 X 60 X 09

$

$

Not available

270

Husqvarna 601001479

BEARING & RETAINER

$

$

Not available

271

Husqvarna 601000519

SCREW, 5/16-18X 50

$

$

Not available

275

Husqvarna 601001606

JACK, ASSY #41 36T&7T

$

$

Not available

276

Husqvarna 601001479

BEARING & RETAINER

$

$

Not available

277

Husqvarna 601000519

SCREW, 5/16-18X 50

$

$

Not available

278

Husqvarna 601001486

CHAIN, ROLLER #42 X 40P

$

$

Not available
