ST 927 E - Husqvarna 27" Snow Blower (1997-11) Discharge Chute Assembly Parts Diagram

27" Snow Blower

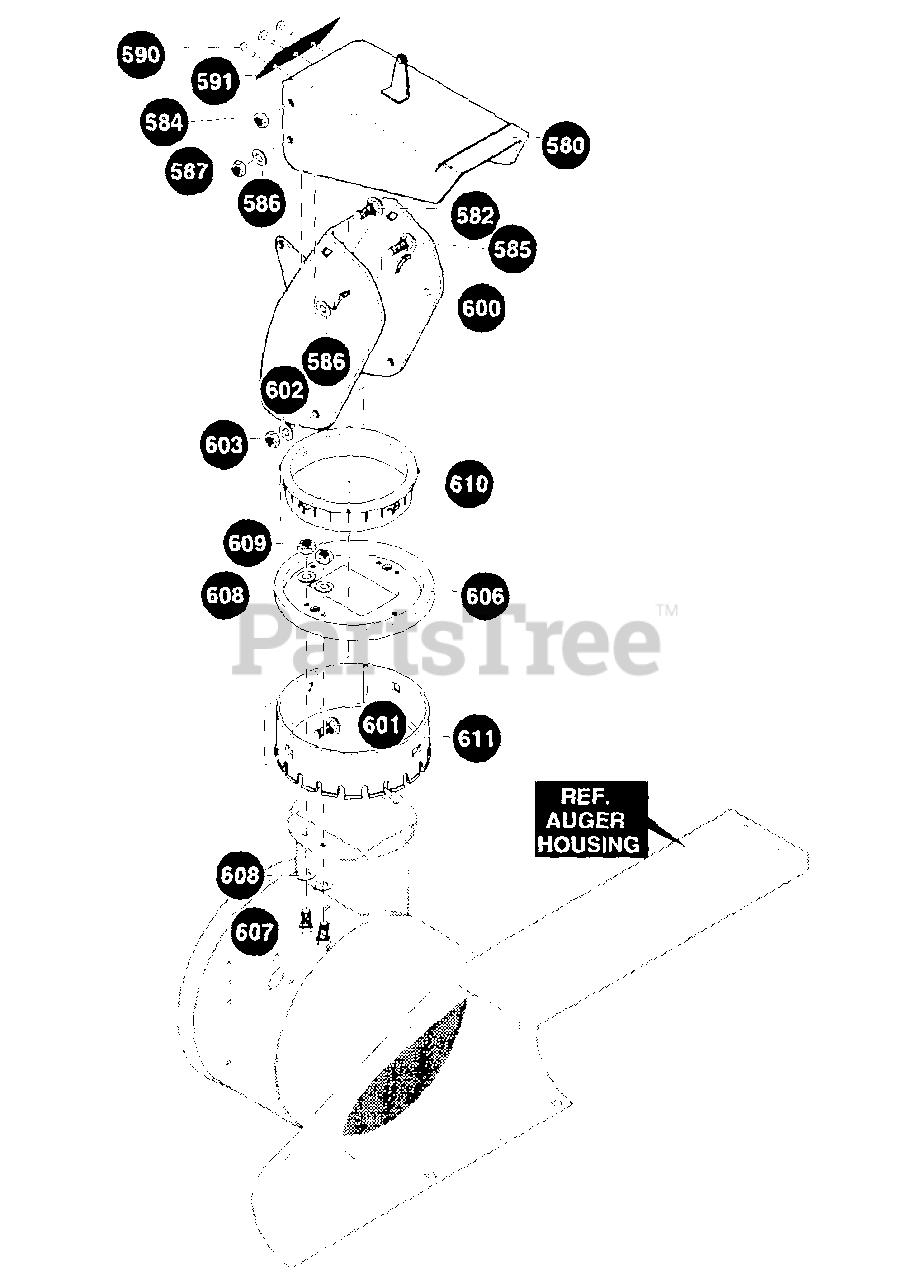

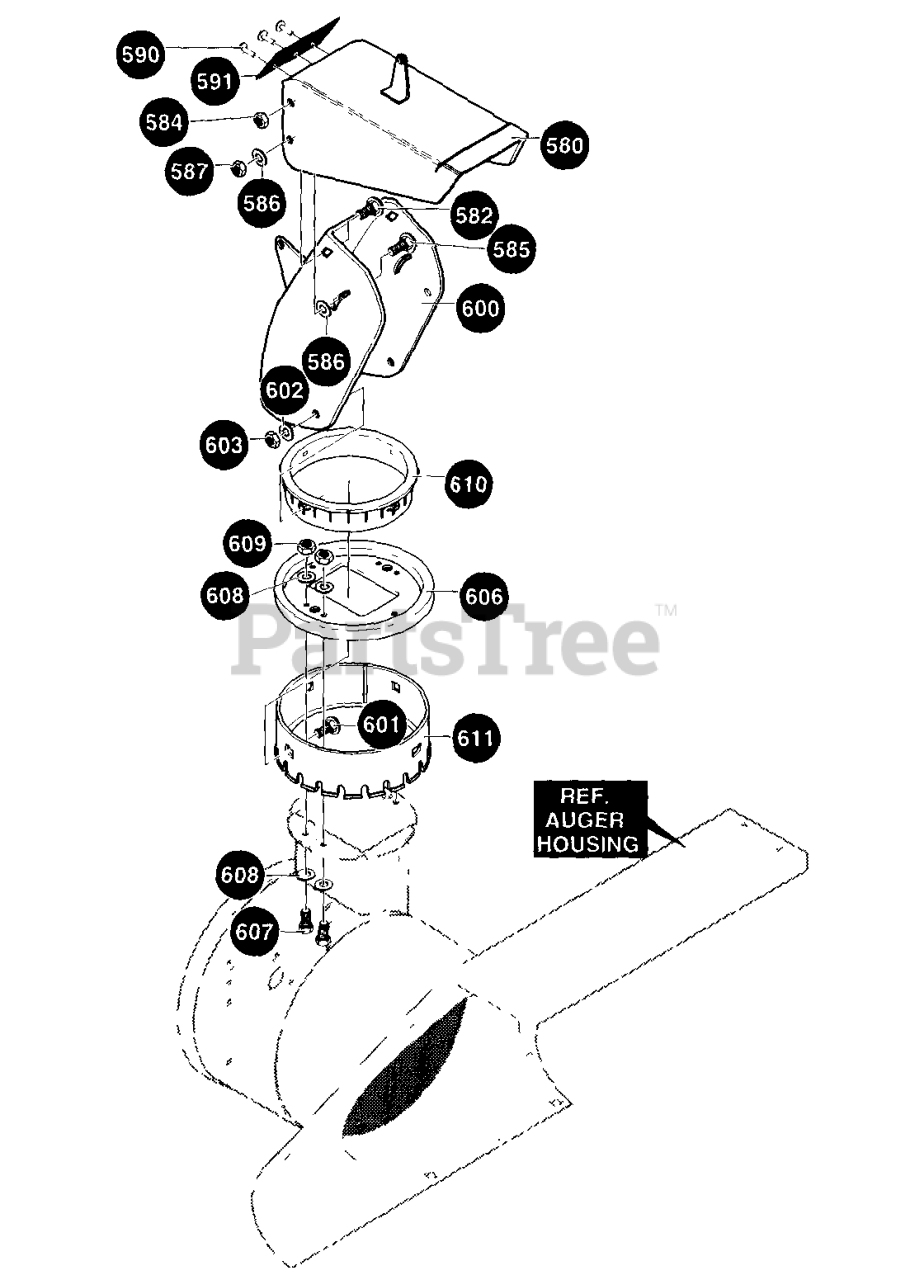

Discharge Chute Assembly Parts Diagram

  • Title
580

Husqvarna 601002037

CHUTE,UPPER

$

$

Not available

582

Husqvarna 601002036

SCREW, 5/16-18 X .75

$

$

Not available

584

Husqvarna 601001464

NUT, 5/16-18 HEXNYL

$

$

Not available

585

Husqvarna 601002038

SCREW, 5/16-18 X .75

$

$

Not available

586

Husqvarna 601001524

WASHER, PLASTIC

$

$

Not available

587

Husqvarna 601001464

NUT, 5/16-18 HEXNYL

$

$

Not available

590

Husqvarna 601001704

RIVET, POP

$

$

Not available

591

Husqvarna 601001702

SKIRT, CHUTE

$

$

Not available

600

Husqvarna 601002169

CHUTE, LOWER

$

$

Not available

601

Husqvarna 601002040

BOLT, 5/16-18 X 1.00

$

$

Not available

602

Husqvarna 601000019

FLATWASHER .344 X .69 X 065

$3.49

$

In Stock, only 1 left!

0

603

Husqvarna 601001464

NUT, 5/16-18 HEXNYL

$

$

Not available

606

Husqvarna 601002041

COLLAR, CH
(Superseded to 601001838)

$

$

Not available

607

Husqvarna 601000068

SCREW, 1/4-20 X .75

$

$

Not available

608

Husqvarna 601000018

FLATWASHER .281 X 63 X .065

$

$

Not available

609

Husqvarna 601000062

NUT, 1/4-20
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

610

Husqvarna 601001839

RETAINER, RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Husqvarna 601001840

RETAINER, RING OUTER

$29.99

$

In Stock, Qty 20+

0
