ST 927 E - Husqvarna 27" Snow Blower (1997-11) Control Panel Assembly Parts Diagram

27" Snow Blower

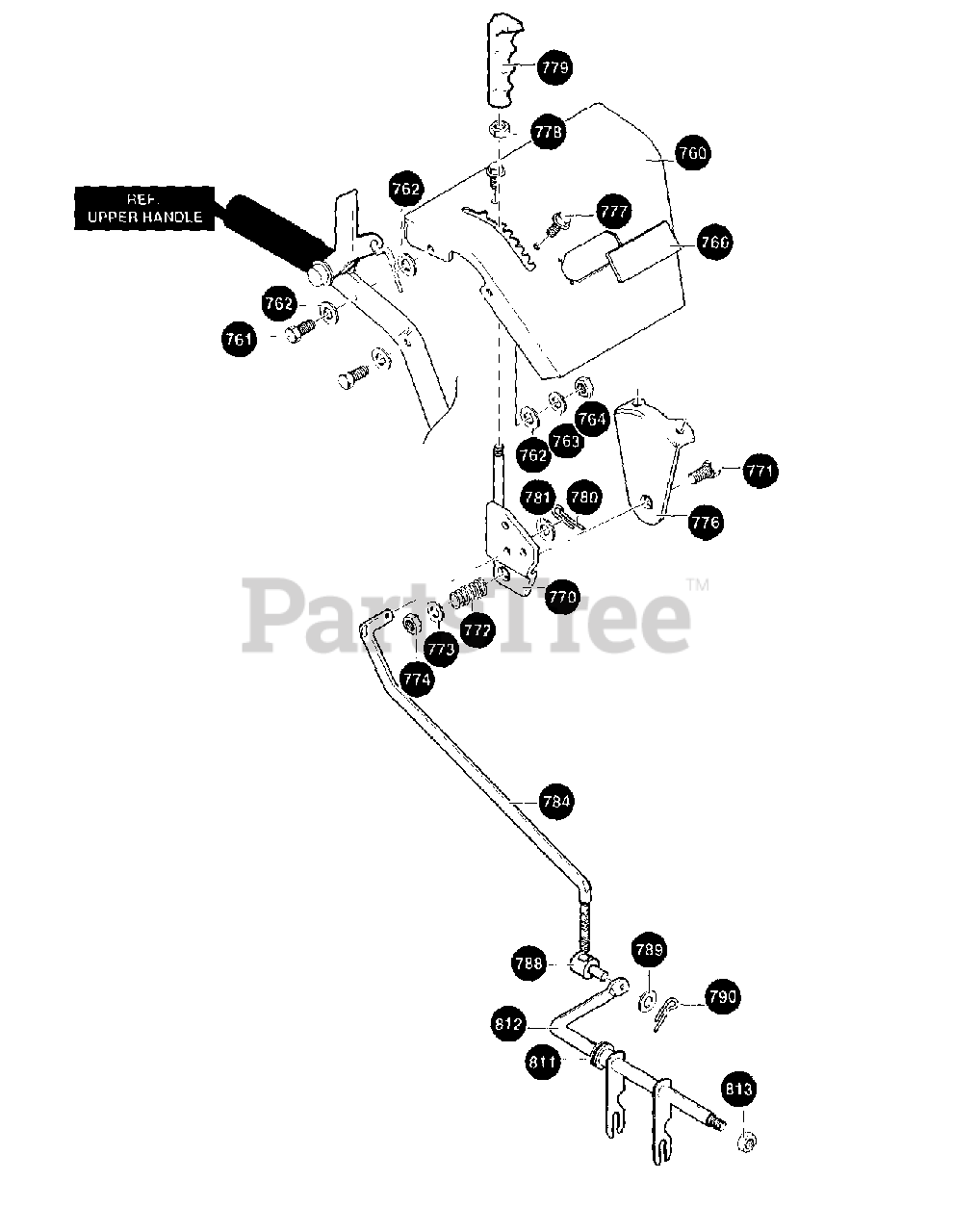

Control Panel Assembly Parts Diagram

  • Title

760

Husqvarna 601001891

PANEL,CONTROL

$

$

Not available

761

Husqvarna 601001557

SCREW, 5/16-18 X 1.75

$

$

Not available

762

Husqvarna 601000019

FLATWASHER .344 X .69 X .065

$3.49

$

In Stock, only 1 left!

0

763

Husqvarna 601000023

WASHER, .328 X .60 X .09

$

$

Not available

764

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

766

Husqvarna 601002170

PLATE, PANEL

$

$

Not available

770

Husqvarna 601001559

HANDLE, ASSY

$

$

Not available

771

Husqvarna 601001555

SCREW, 3/8-16 X 2.00

$

$

Not available

772

Husqvarna 601001560

SPRING

$

$

Not available

773

Husqvarna 601000020

FLATWASHER .406 X .81 X .065

$

$

Not available

774

Husqvarna 601000653

NUT, 3/8-16

$

$

Not available

776

Husqvarna 601002046

BRACKET

$

$

Not available

777

Husqvarna 601000519

SCREW, 5/16 18 X .50

$

$

Not available

778

Husqvarna 601000060

NUT, 3/8-16
(Superseded to 601002407)

$

$

Not available

779

Husqvarna 601000236

HANDLE 3/8-16

$

$

Not available

780

Husqvarna 601000025

PIN, COTTER

$

$

Not available

781

Husqvarna 601000019

WASHER, FLAT

$3.49

$

In Stock, only 1 left!

0

784

Husqvarna 601001562

ROD, SPEED CONTROL

$

$

Not available

788

Husqvarna 601001563

NUT, TRUNNION

$

$

Not available

789

Husqvarna 601000019

FLATWASHER .344 X .69 X .065

$3.49

$

In Stock, only 1 left!

0

790

Husqvarna 601000025

PIN, COTTER

$

$

Not available

811

Husqvarna 601001564

BEARING, FLANGE

$

$

Not available

812

Husqvarna 601002047

ROD, ASSY

$

$

Not available

813

Husqvarna 601000060

NUT, 3/8-16
(Superseded to 601002407)

$

$

Not available
