ST 927 E - Husqvarna 27" Snow Blower (1997-11) Auger Housing Assembly Parts Diagram

27" Snow Blower

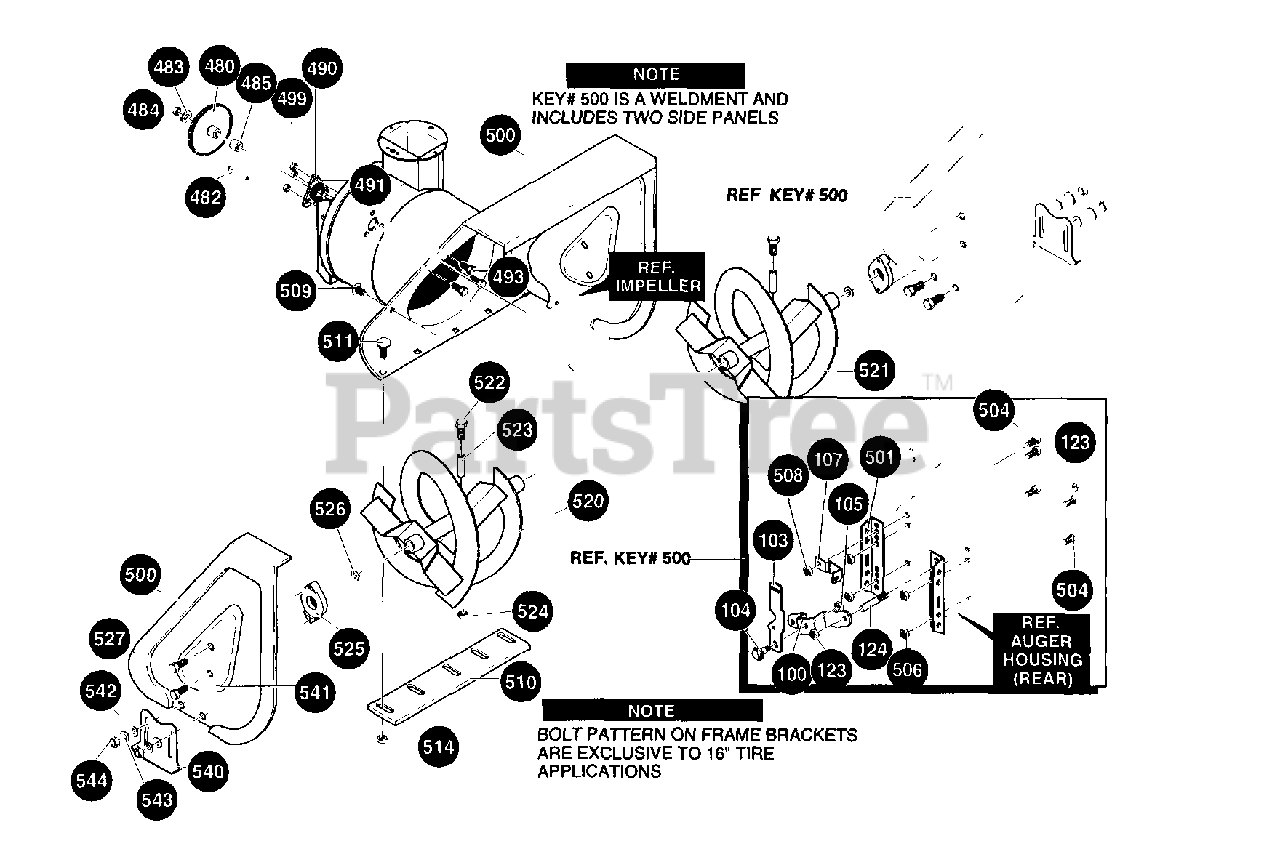

Auger Housing Assembly Parts Diagram

  • Title
480

Husqvarna 601001609

PULLEY, V4L 8.40 OD

$

$

Not available

482

Husqvarna 601001507

KEY, SQUARE

$

$

Not available

483

Husqvarna 601001446

FLATWASHER .53 X 1.00 X .063

$

$

Not available

484

Husqvarna 601000107

NUT, 1/2-20

$

$

Not available

485

Husqvarna 601001610

SPACER, SLEEVE

$

$

Not available

490

Husqvarna 601001509

RETAINER, BALL

$

$

Not available

491

Husqvarna 601000539

BEARING, BALL
(Superseded to 601000565)

$

$

Not available

493

Husqvarna 601000073

SCREW, 5/16-18 X .75

$

$

Not available

499

Husqvarna 601002036

NUT, 5/16-18 WHIZ

$

$

Not available

500

Husqvarna 601002173

HOUSING, ASSY

$

$

Not available

100

Husqvarna 601002024

PLATE, CLUTCH ARM M

$

$

Not available

103

Husqvarna 601002057

BRACKET, IDLER
(Superseded to 601002406)

$

$

Not available

104

Husqvarna 601002026

SH. BOLT, 3/8-16

$

$

Not available

105

Husqvarna 601000060

NUT, 3/8-16 RGHXCTRLK
(Superseded to 601002407)

$

$

Not available

107

Husqvarna 601002028

CABLE MTNG BRACKET

$

$

Not available

123

Husqvarna 601000060

NUT, 3/8-16 RGHXCTRLK
(Superseded to 601002407)

$

$

Not available

124

Husqvarna 601001742

STUD, BRAKE ARM

$

$

Not available

125

Husqvarna 601000015

WASHER, REGXPTLK

$

$

Not available

501

Husqvarna 601002035

BRKT, MOUNT

$

$

Not available

504

Husqvarna 601002061

SCREW, 3/8-16 X .75

$

$

Not available

506

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

508

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

509

Husqvarna 601002174

PLUG, CHRISTMAS TREE

$

$

Not available

510

Husqvarna 601001614

BLADE,SCRAPER

$

$

Not available

511

Husqvarna 601001411

BOLT, 5/16-18 X .75

$

$

Not available

514

Husqvarna 601002036

NUT, 5/16-18 HXWDFLLK

$

$

Not available

520

Husqvarna 601001872

AUGER ASSY. LH

$

$

Not available

521

Husqvarna 601001873

AUGER ASSY. RH

$

$

Not available

522

Husqvarna 601001456

SCREW, 1/4-20 X 1.75

$

$

Not available

523

Husqvarna 601001517

SPACER, SLEEVE

$5.99

$

In Stock, Qty 6

0

524

Husqvarna 601000062

NUT, 1/4-20
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

525

Husqvarna 601001518

AUGER SHAFT BEARING

$

$

Not available

526

Husqvarna 601001519

FLATWASHER 1.005 X 1.31 X .035

$

$

Not available

527

Husqvarna 601000520

SCREW, 5/16-18 X .75

$

$

Not available

540

Husqvarna 601001745

SKID, HEIGHT ADJUST

$

$

Not available

541

Husqvarna 601001411

BOLT, 5/16-18 X .75

$

$

Not available

542

Husqvarna 601000019

FLATWASHER .344 X .69 X .065

$3.49

$

In Stock, only 1 left!

0

543

Husqvarna 601000023

WASHER, .328 X .60 X .09

$

$

Not available

544

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available
