ST 927 E - Husqvarna 27" Snow Blower (1997-01) HANDLE & CONTROLS Parts Diagram

27" Snow Blower

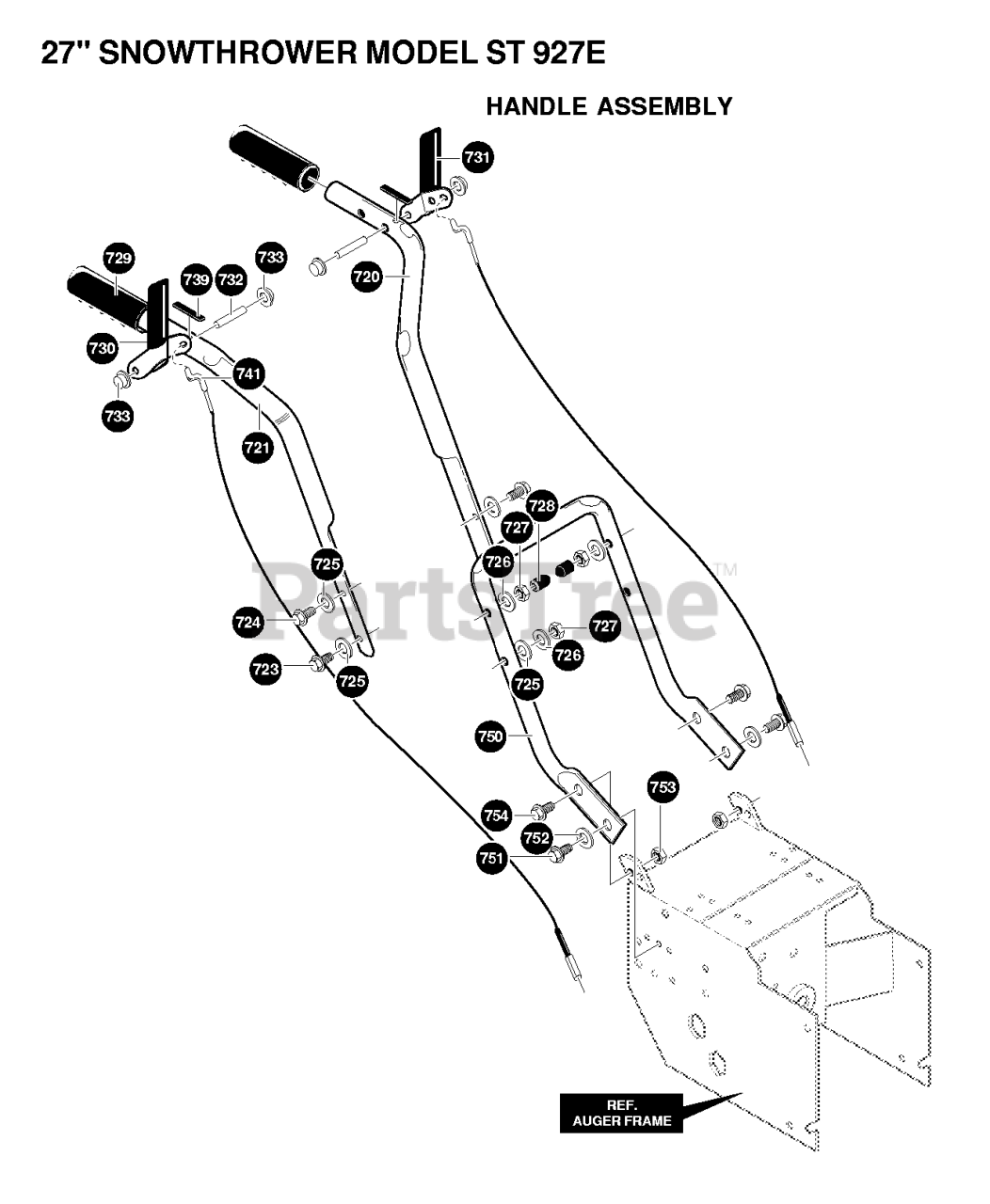

HANDLE & CONTROLS Parts Diagram

  • Title

750

Husqvarna 601001554

LOWER HANDLE

$

$

Not available

752

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

754

Husqvarna 601000520

SCREW, 5/16-18X .75 WAHHT

$

$

Not available

729

Husqvarna 601001546

HANDLE GRIP

$

$

Not available

720

Husqvarna 601001542

UPPER HANDLE, LH

$

$

Not available

724

Husqvarna 601001544

SCREW

$

$

Not available

730

Husqvarna 601002044

HANDLE-CLUTCH

$

$

Not available

726

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

728

Husqvarna 601001545

STOP

$

$

Not available

725

Husqvarna 601000020

WASHER, FLAT .406X .81X.

$

$

Not available

751

Husqvarna 601000520

SCREW, 5/16-18X .75 WAHHT

$

$

Not available

741

Husqvarna 601001658

CABLE, CLUTCH 31.75" TRACTION

$

$

Not available

723

Husqvarna 601001555

SCREW

$

$

Not available

733

Husqvarna 601000516

NUT, PUSH ON CAP .312 OD

$

$

Not available

727

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

732

Husqvarna 601001549

PIVOT PIN

$

$

Not available

731

Husqvarna 601002045

ASSY, CLUTCH LEVER LH

$

$

Not available

721

Husqvarna 601001543

UPPER HANDLE, RH

$

$

Not available

739

Husqvarna 601001657

BUMPER, RECT W/FLAT TOP

$

$

Not available

753

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

In Stock, only 2 left!
