ST 927 E - Husqvarna 27" Snow Blower (1997-01) FRAME Parts Diagram

27" Snow Blower

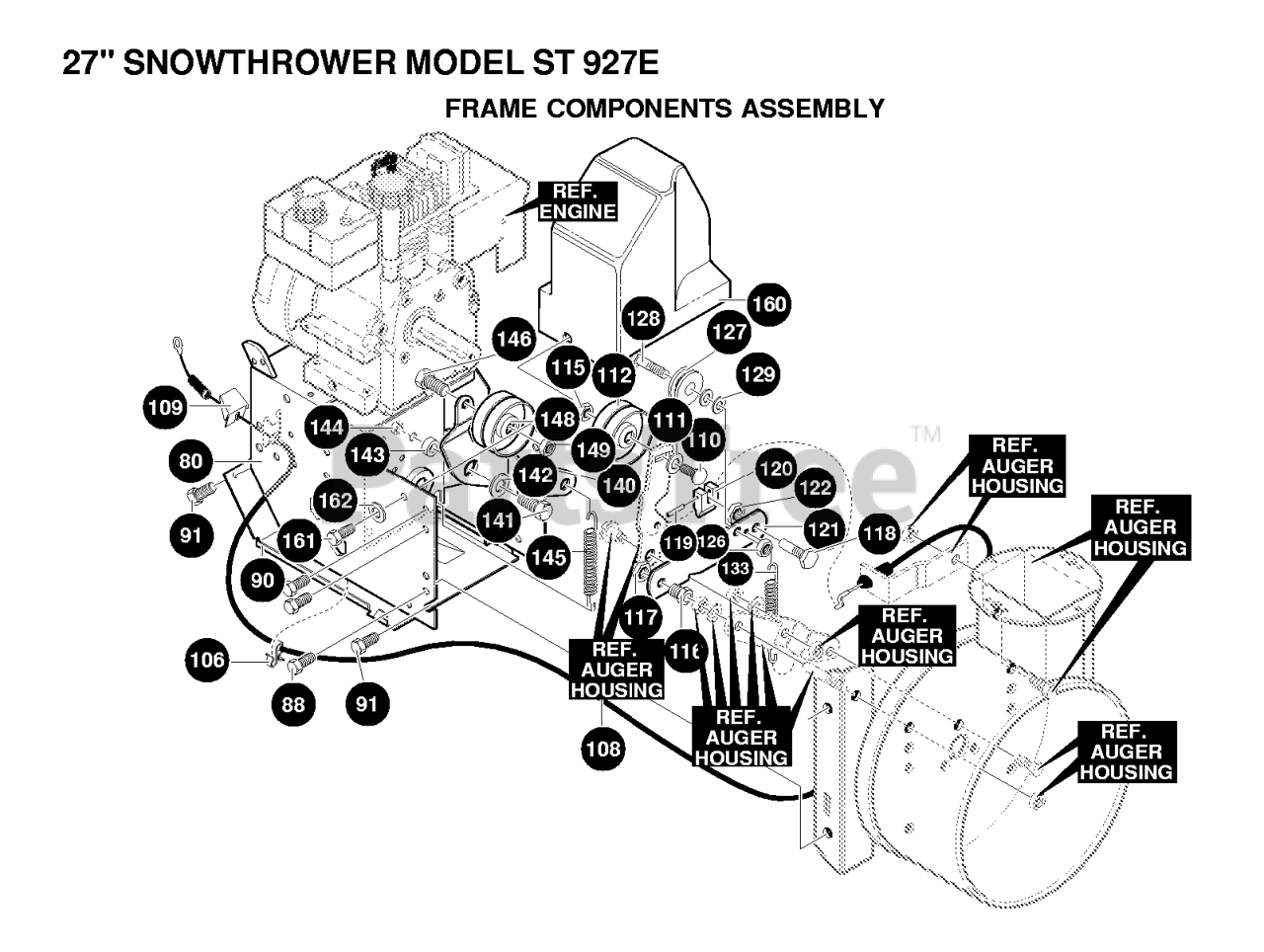

FRAME Parts Diagram

  • Title

142

Husqvarna 601001462

WASHER

$

$

Not available

88

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

117

Husqvarna 601001601

NUT, 9/16-18 HEX

$

$

Not available

160

Husqvarna 601001465

COVER, BELT

$

$

Not available

116

Husqvarna 601001602

BOLT. BRAKE ARM 9/16-18

$

$

Not available

127

Husqvarna 601000560

PULLEY, ALUMINUM

$11.99

$

Usually ships in 3-10 days

0

146

Husqvarna 601001740

SCREW, 3/8-16 X 1.25

$

$

Not available

115

Husqvarna 601001335

NUT

$

$

Not available

91

Husqvarna 601001445

SCREW

$

$

Not available

122

Husqvarna 601001603

NUT, 1/2-20 JAM

$

$

Not available

120

Husqvarna 601001459

PAD

$

$

Not available

144

Husqvarna 601001464

NUT

$

$

Not available

128

Husqvarna 601002059

BOLT, SH 1/4-20

$

$

Not available

118

Husqvarna 601001604

BOLT-BRAKE ARM ADJ.

$

$

Not available

109

Husqvarna 601002030

SHIELD, CABLE GROUND

$

$

Not available

145

Husqvarna 601001089

SPRING

$

$

Not available

80

Husqvarna 601002163

FRAME, ASSY

$

$

Not available

108

Husqvarna 601002164

CABLE, AUGER

$28.99

$

Usually ships in 3-10 days

0

126

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

133

Husqvarna 601002060

SPRING, IDLER

$

$

Not available

161

Husqvarna 601001445

SCREW

$

$

Not available

111

Husqvarna 601000671

WASHER, FLAT .506X .75X.

$

$

Not available

121

Husqvarna 601002058

BRACKET, PUCK
(Superseded to 601002408)

$

$

Not available

141

Husqvarna 601000073

SCREW, 5/16-18X .75 HHC

$

$

Not available

110

Husqvarna 601001598

CARR. BOLT, 3/8-16X1.25

$

$

Not available

112

Husqvarna 601001454

IDLER PULLEY

$

$

Not available

119

Husqvarna 601001451

PIN

$

$

Not available

129

Husqvarna 601000017

WASHER, FLAT .250X .56X.

$

$

Not available

106

Husqvarna 601002027

CLIP, CABLE TINN

$

$

Not available

140

Husqvarna 601001461

LEVER

$

$

Not available

143

Husqvarna 601001463

BUSHING

$

$

Not available

14

Husqvarna 601001335

NUT

$

$

Not available

162

Husqvarna 601000018

WASHER, FLAT .281X .63X.

$

$

Not available

14

Husqvarna 601001454

IDLER PULLEY

$

$

Not available

90

Husqvarna 601001739

COVER, BOTTOM WHEEL DRIVE

$

$

Not available
