ST 927 E - Husqvarna 27" Snow Blower (1997-01) CONTROLS Parts Diagram

27" Snow Blower

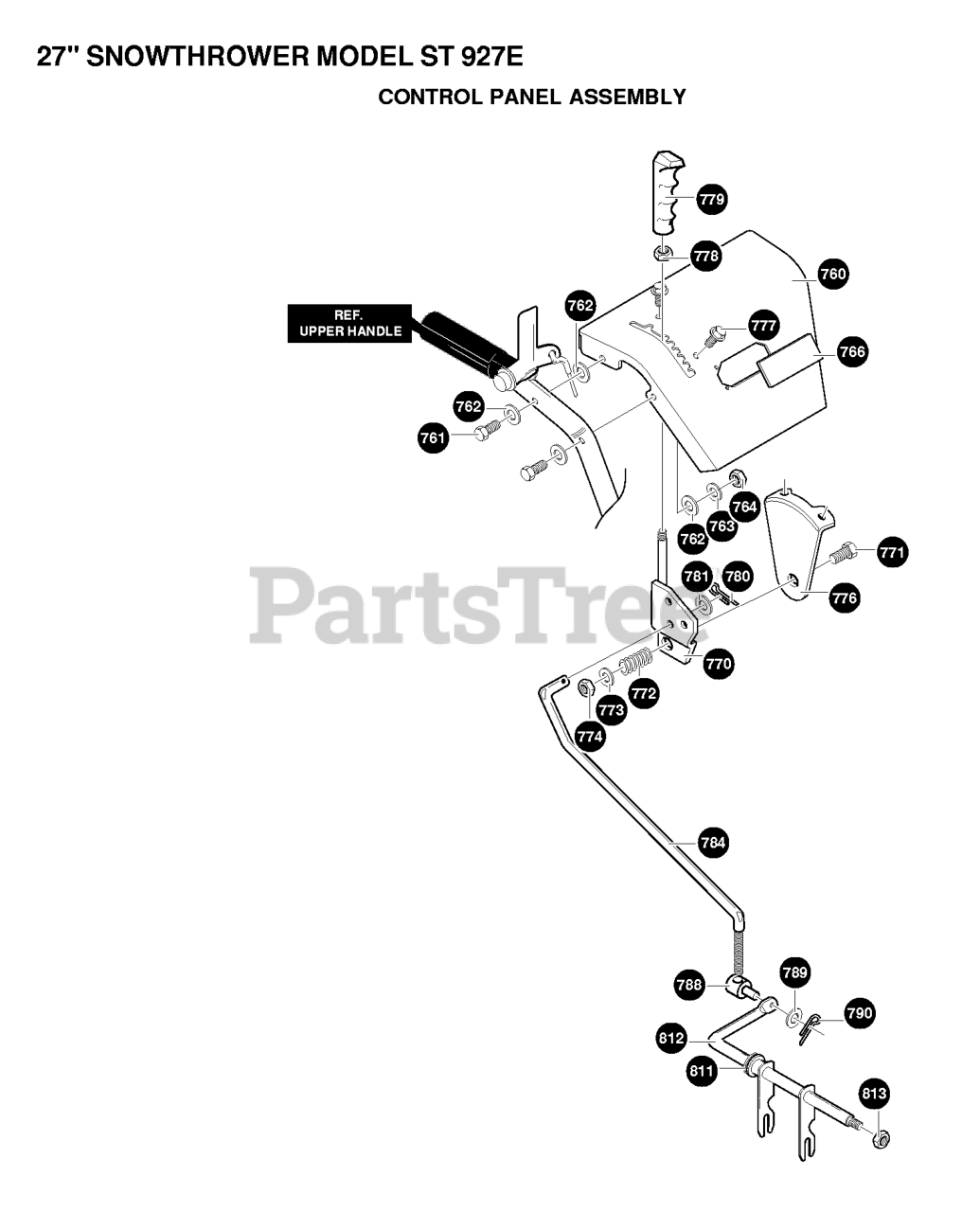

CONTROLS Parts Diagram

  • Title

761

Husqvarna 601001557

SCREW

$

$

Not available

764

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

762

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$3.49

$

In Stock, only 1 left!

0

778

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

766

Husqvarna 601002170

PLATE, PANEL

$

$

Not available

771

Husqvarna 601001555

SCREW

$

$

Not available

776

Husqvarna 601002046

BRACKET

$

$

Not available

812

Husqvarna 601002047

ROD, ASSY YOKE

$

$

Not available

773

Husqvarna 601000020

WASHER, FLAT .406X .81X.

$

$

Not available

779

Husqvarna 601000236

HANDLE, 3/8-16 MOLDED GRE

$

$

Not available

774

Husqvarna 601000653

NUT, 3/8-16 HEXNYL

$

$

Not available

788

Husqvarna 601001563

NUT

$

$

Not available

780

Husqvarna 601000025

PIN, COTTER .090/.086X.75

$

$

Not available

811

Husqvarna 601001564

FLANGE BEARING

$

$

Not available

760

Husqvarna 601001891

PANEL, CONTROL W/LIGHT

$

$

Not available

781

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$3.49

$

In Stock, only 1 left!

0

763

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

784

Husqvarna 601001562

ROD

$

$

Not available

813

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

790

Husqvarna 601000025

PIN, COTTER .090/.086X.75

$

$

Not available

772

Husqvarna 601001560

SPRING

$

$

Not available

770

Husqvarna 601001559

SPEED CONTROL HANDLE

$

$

Not available

789

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$3.49

$

In Stock, only 1 left!

0

777

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available
