ST 927 E - Husqvarna 27" Snow Blower (1996-01) Single Hand Control Parts Diagram

27" Snow Blower

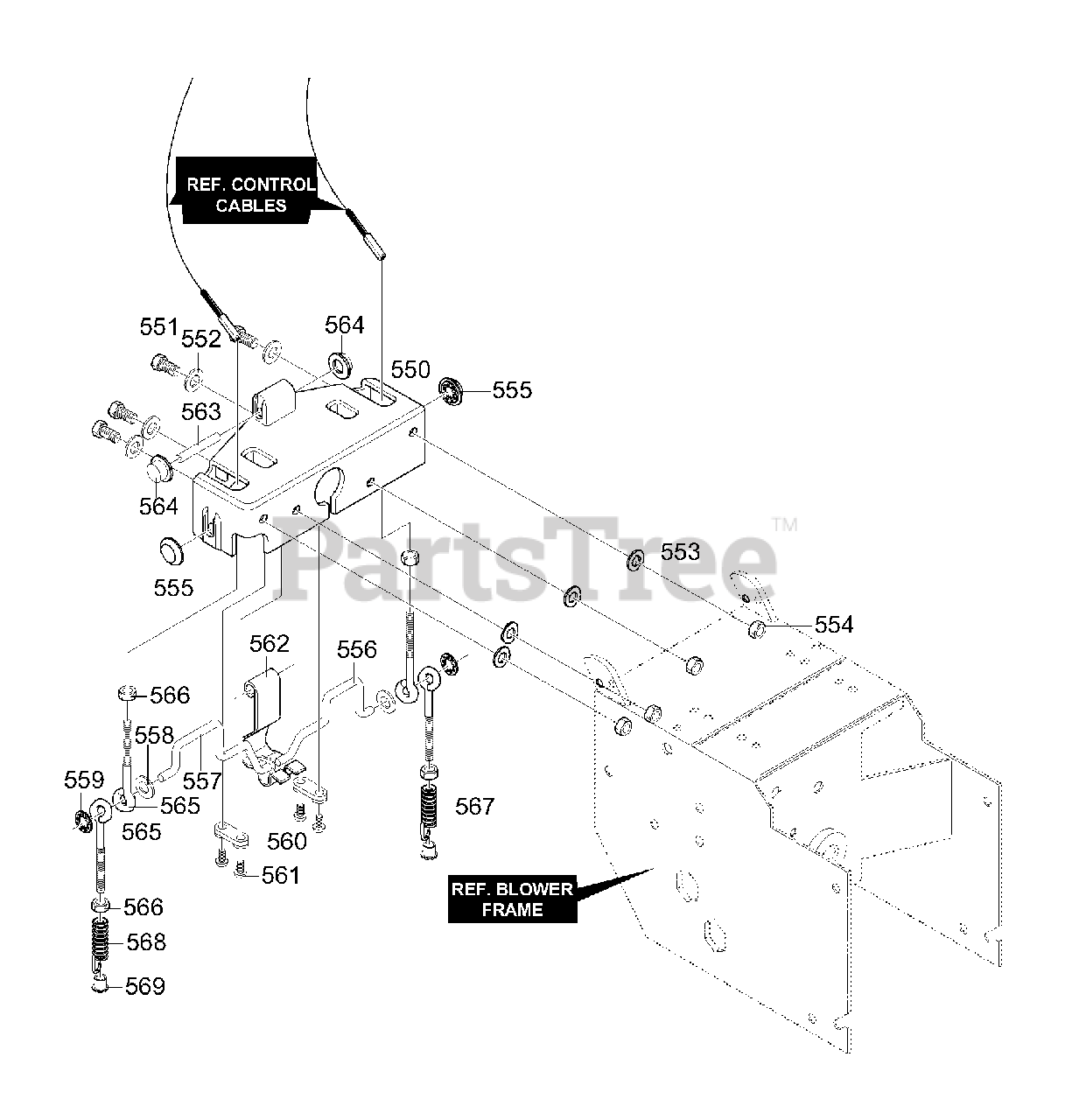

Single Hand Control Parts Diagram

  • Title

550

Husqvarna 601001619

HOUSING, SGL HAND CONTROL

$

$

Not available

551

Husqvarna 601000073

SCREW, 5/16-18X.75

$

$

Not available

552

Husqvarna 601000019

FLATWASHER, .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

553

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X.09

$

$

Not available

554

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

555

Husqvarna 601000511

NUT, PUSH ON CAP

$

$

Not available

556

Husqvarna 601001620

CAM/LATCH, LH SHC

$

$

Not available

557

Husqvarna 601001621

CAM/LATCH, RH SHC

$

$

Not available

558

Husqvarna 601000019

FLATWASHER, .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

559

Husqvarna 601001622

RING, RETEX

$

$

Not available

560

Husqvarna 601001623

CLAMP, SHC CAM FRAME MTD

$

$

Not available

561

Husqvarna 601001624

SCREW #8X.75 PANTAPPLAST

$

$

Not available

562

Husqvarna 601001625

CAM LOCK

$

$

Not available

563

Husqvarna 601001626

PIN, SPRING PIVOT

$

$

Not available

564

Husqvarna 601001291

NUT, PUSH ON 3/8"

$

$

Not available

565

Husqvarna 601001627

BOLT, EYE 10-24X2.50 W 3/8

$7.99

$

In Stock, only 1 left!

0

566

Husqvarna 601001628

NUT, #10-24 REGHEX

$

$

Not available

567

Husqvarna 601001629

SPRING, DRIVE CLUTCH 2.75

$

$

Not available

568

Husqvarna 601001630

SPRING, AUGER CLUTCH 2.38

$

$

Not available

569

Husqvarna 601001631

NUT, 10-24 T

$

$

Not available
