ST 927 E - Husqvarna 27" Snow Blower (1996-01) Handles Parts Diagram

27" Snow Blower

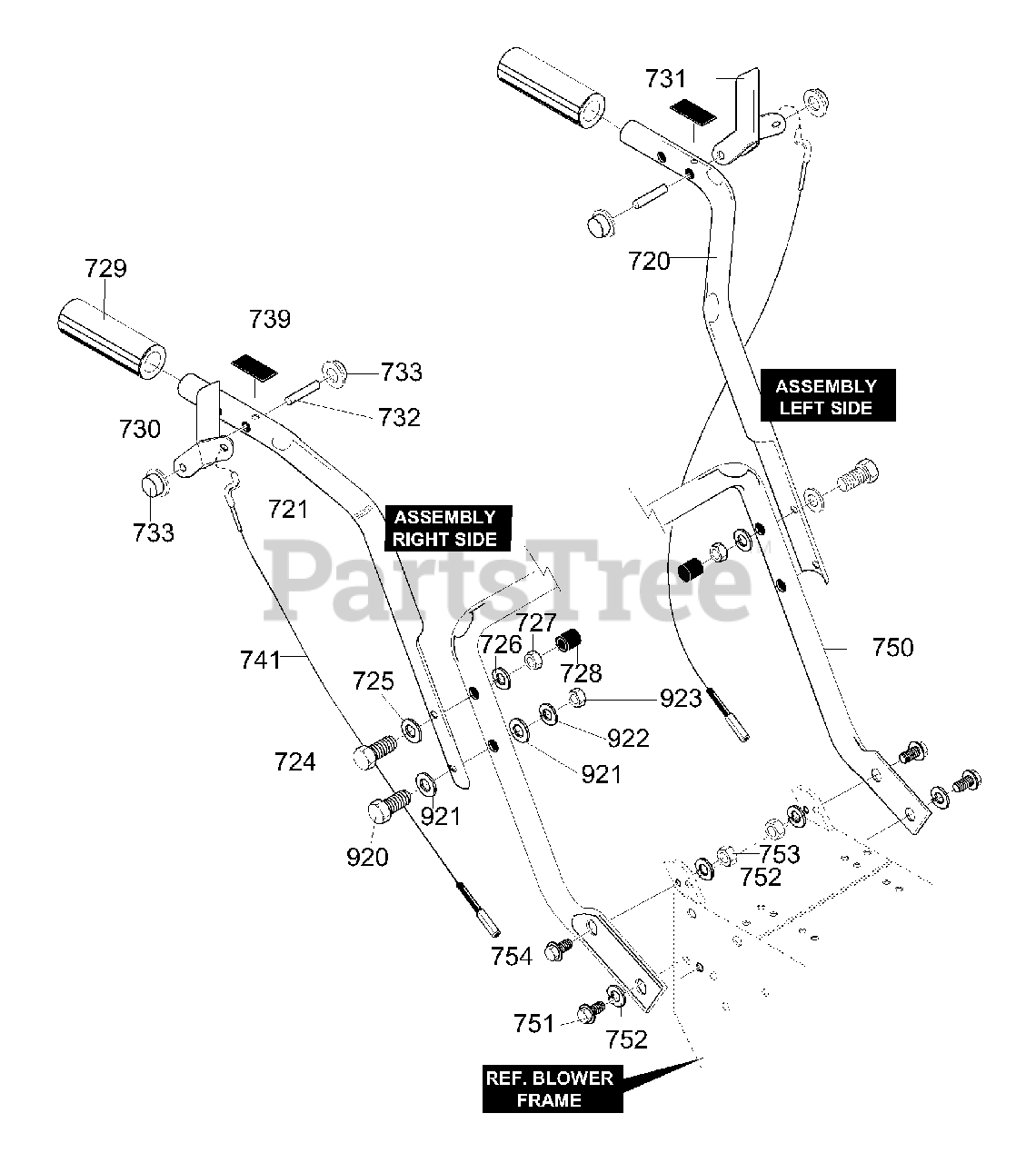

Handles Parts Diagram

  • Title
720

Husqvarna 601001542

UPPER HANDLE LH

$

$

Not available

721

Husqvarna 601001543

UPPER HANDLE RH

$

$

Not available

724

Husqvarna 601001544

SCREW, 3/8-16X3.00

$

$

Not available

725

Husqvarna 601000020

FLATWASHER .406X.81X.065

$

$

Not available

726

Husqvarna 601000015

WASHER, RGSPTLK .393X.68X.10

$

$

Not available

727

Husqvarna 601000060

NUT, 3/8-16 REGHEXTRLK
(Superseded to 601002407)

$

$

Not available

728

Husqvarna 601001545

STOP, PLASTIC .375

$

$

Not available

729

Husqvarna 601001546

GRIP, HANDLE

$

$

Not available

730

Husqvarna 601001547

HANDLE, CLUTCH RH
(Superseded to 601001926)

$

$

Not available

731

Husqvarna 601001548

HANDLE, CLUTCH LH
(Superseded to 601001927)

$

$

Not available

732

Husqvarna 601001549

PIN, PIVOT

$

$

Not available

733

Husqvarna 601000516

PUSH ON CAP

$

$

Not available

739

Husqvarna 601001657

BUMPER, RECT

$

$

Not available

741

Husqvarna 601001658

CABLE, CLUTCH

$

$

Not available

750

Husqvarna 601001554

HANDLE, LOWER

$

$

Not available

751

Husqvarna 601000520

SCREW, 5/16-18X.75 WAHHTAP

$

$

Not available

752

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X.09

$

$

Not available

753

Husqvarna 601000012

NUT 5/16-18 REGHEX

$

$

Not available

754

Husqvarna 601000073

SCREW, 5/16-18X.75

$

$

Not available

920

Husqvarna 601001555

SCREW, 3/8-16X2.00

$

$

Not available

921

Husqvarna 601000020

FLATWASHER .406X.81X.065

$

$

Not available

922

Husqvarna 601000015

WASHER RGSPTLK .393X.60X.10

$

$

Not available

923

Husqvarna 601000060

NUT, 3/8-16 REGHEXCTRLK
(Superseded to 601002407)

$

$

Not available
