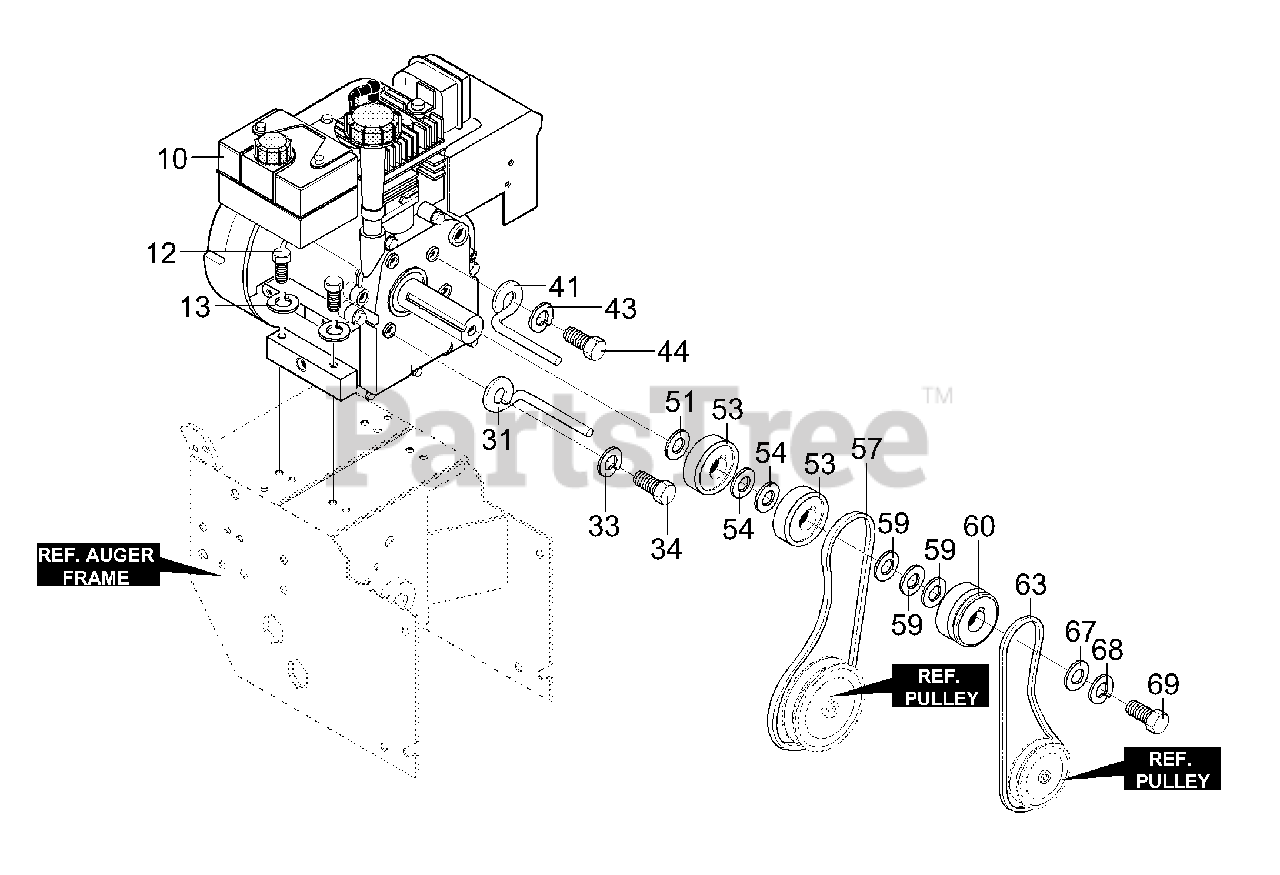

ST 927 E - Husqvarna 27" Snow Blower (1996-01) Engine Parts Diagram

27" Snow Blower

Engine Parts Diagram

  • Title

10

ENGINE 9HP TEC

Note: (SEE ENGINE MANUAL)

$

$

Not available

12

Husqvarna 601001592

SCREW, 5/16-18 X 1.50

$

$

Not available

13

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X.09

$

$

Not available

31

Husqvarna 601001432

GUIDE, ROD BELT RH

$

$

Not available

33

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X.09

$

$

Not available

34

Husqvarna 601001433

SCREW 5/16-24X.625

$

$

Not available

41

Husqvarna 601001432

GUIDE, ROD BELT LH

$

$

Not available

43

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X.09

$

$

Not available

44

Husqvarna 601001433

SCREW 5/16-24X.625

$

$

Not available

51

Husqvarna 601001434

WASHER, CRANKSHAFT

$

$

Not available

53

Husqvarna 601001436

PULLEY, HALF V3L 2.00X.752ID

$

$

Not available

54

Husqvarna 601001435

FLATWASHER, .752X.91X.02

$

$

Not available

57

Husqvarna 601001437

BELT, V 3L 33.13LG

$19.99

$

In Stock, Qty 20+

0

59

Husqvarna 601001438

FLATWASHER, .765X1.12X.06

$

$

Not available

60

Husqvarna 601001593

PULLEY, ENGINE V 4L

$

$

Not available

63

Husqvarna 601001594

BELT, V 4L 36.6LG

$22.99

$

In Stock, Qty 20+

0

67

Husqvarna 601001441

FLATWASHER

$

$

Not available

68

Husqvarna 601000015

WASHER, REGSPTLK .393X.60X.10

$

$

Not available

69

Husqvarna 601000527

SCREW 3/8-24 X 1.00 NYL

$

$

Not available

Husqvarna 601001843

OWNER'S MANUAL ENG/FR

$

$

Not available
