ST 927 E - Husqvarna 27" Snow Blower (1996-01) Control Panel Parts Diagram

27" Snow Blower

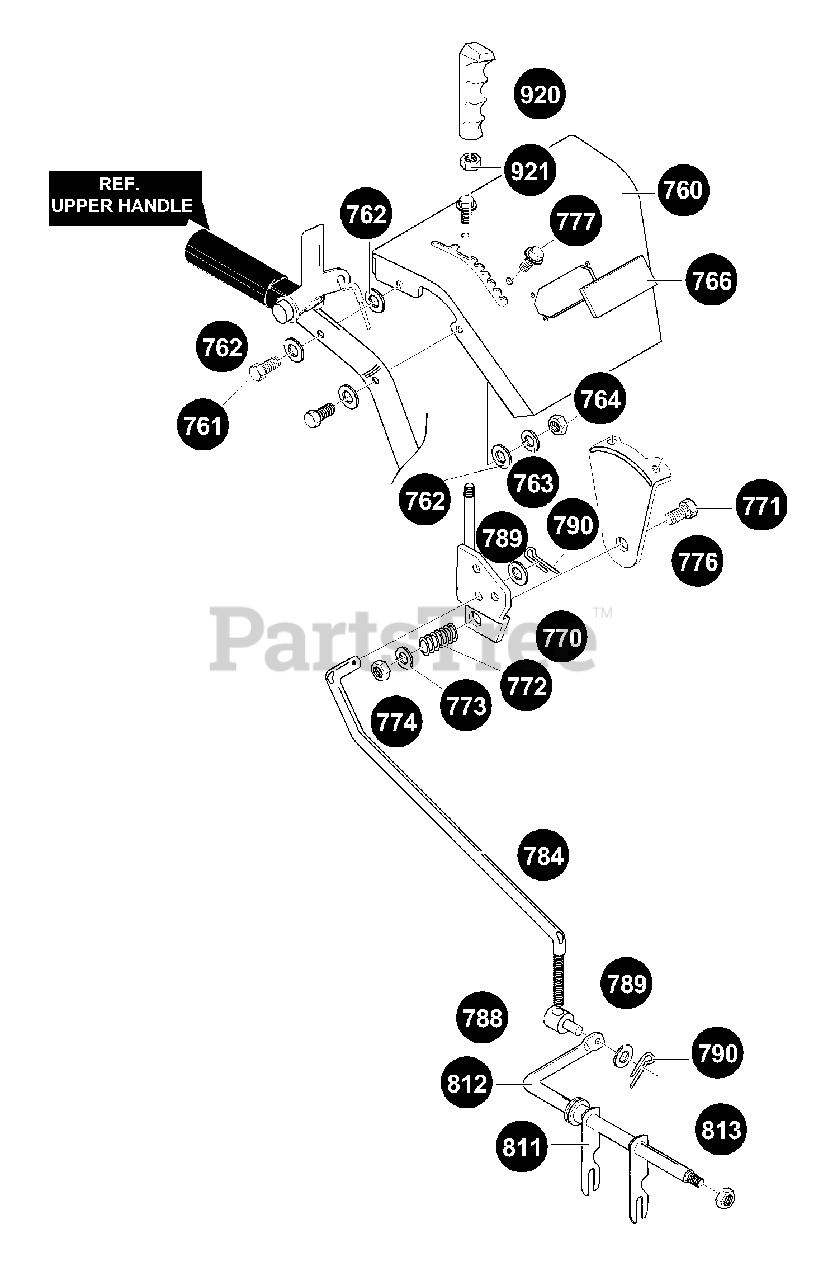

Control Panel Parts Diagram

  • Title

760

Husqvarna 601001891

PANEL, CONTROL W/LIGHT

$

$

Not available

761

Husqvarna 601001557

SCREW, 5/16-18X1.75

$

$

Not available

762

Husqvarna 601000019

FLATWASHER .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

763

Husqvarna 601000023

WASHER HVSPTLK .328X.60X.09

$

$

Not available

764

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

766

Husqvarna 601001558

PLATE, PANEL

$

$

Not available

770

Husqvarna 601001559

HANDLE ASSY SPEED CONTROL

$

$

Not available

771

Husqvarna 601001555

SCREW 3/8-16X2.00

$

$

Not available

772

Husqvarna 601001560

SPRING

$

$

Not available

773

Husqvarna 601000020

FLATWASHER .406X.81X.065

$

$

Not available

774

Husqvarna 601000653

NUT, 3/8-16 HEXNYL

$

$

Not available

776

Husqvarna 601001748

BRACKET, SPEED CONTROL

$

$

Not available

777

Husqvarna 601000520

SCREW, 5/16-18X.75 WAHHTAP

$

$

Not available

780

Husqvarna 601000025

PIN, COTTER .090DIAX.75LG

$

$

Not available

781

Husqvarna 601000019

FLATWASHER, .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

784

Husqvarna 601001562

ROD, SPEED CONTROL

$

$

Not available

788

Husqvarna 601001563

NUT, TRUNNION 5/16-24

$

$

Not available

789

Husqvarna 601000019

FLATWASHER .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

790

Husqvarna 601000025

COTTER PIN .090DIAX.73LG

$

$

Not available

811

Husqvarna 601001564

BEARING, FLANGED

$

$

Not available

812

Husqvarna 601001565

ROD, ASSY YOKE "PANEL"

$

$

Not available

813

Husqvarna 601000060

NUT 3/8-16 REGHEXCTRLK
(Superseded to 601002407)

$

$

Not available

920

Husqvarna 601000236

HANDLE, 3/8-16 MOLDED

$

$

Not available

921

Husqvarna 601000060

NUT, 3/8-16 REGHEXCTRLK
(Superseded to 601002407)

$

$

Not available
