ST 926 - Husqvarna 26" Snow Blower (1999-10) Discharge Chute Parts Diagram

26" Snow Blower

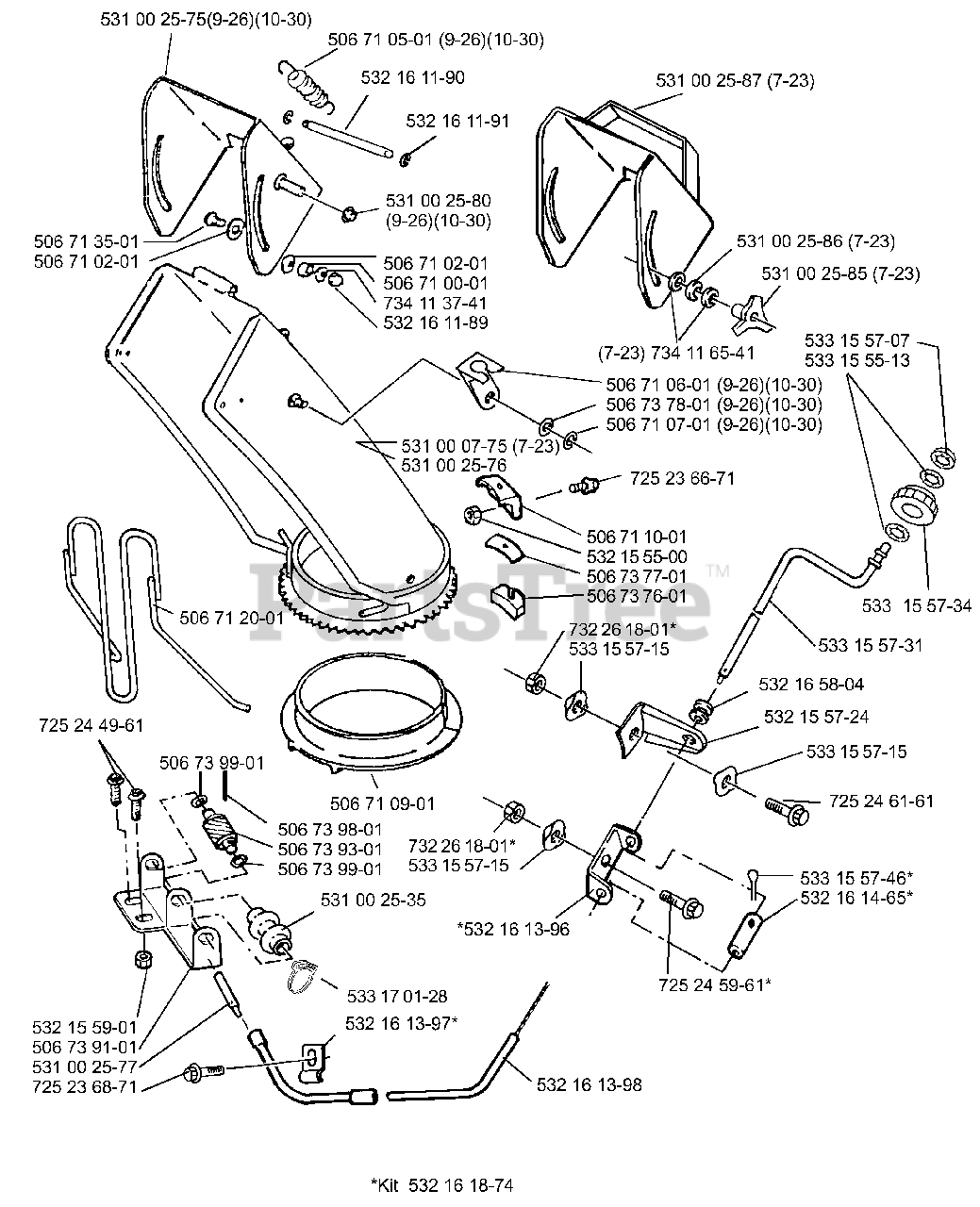

Discharge Chute Parts Diagram

  • Title
531002575

Husqvarna 531002575

REMOTE CHUTE DEFLECTOR ASSY
(Superseded to 506709701)

$

$

Not available

506710501

$

$

Not available

532161190

Husqvarna 532161190

PIN
(Superseded to 506710301)

$

$

Not available

532161191

Husqvarna 532161191

SNAP RING C

$

$

Not available

531002580

$

$

Not available

506713501

$

$

Not available

506710201

Husqvarna 506710201

WASHER NYLON

$

$

Not available

532161189

Husqvarna 532161189

CAP
(Superseded to 506710101)

$

$

Not available

734113741

$4.99

$

Usually ships in 3-10 days

0

506710001

$

$

Not available

506710201

Husqvarna 506710201

WASHER NYLON

$

$

Not available

531000775

Husqvarna 531000775

SNOW CHUTE STD ASSY 23"

$

$

Not available

531002576

$

$

Not available

506710601

$

$

Not available

506737801

$

$

Not available

506710701

Husqvarna 506710701

SNAP RING E

$

$

Not available

506711001

Husqvarna 506711001

FLANGE CHUTE ROTATE RETAINER

$

$

Not available

532155500

$

$

Not available

531002587

Husqvarna 531002587

CHUTE DEFLECTOR W/ HNDL 23"
(Superseded to 506709801)

$

$

Not available

531002586

Husqvarna 531002586

WASHER SPLIT LOCK - 5/16

$

$

Not available

531002585

Husqvarna 531002585

WING NUT - PLASTIC 5/16-18

$

$

Not available

533155707

Husqvarna 533155707

AXLE CAP, 1/2" ID

$

$

Not available

533155513

$

$

Not available

725236671

$0.99

$

In Stock, only 1 left!

0

533155734

Husqvarna 533155734

GRIP HANDLE - CHUTE CRANK

$

$

Not available

533155731

Husqvarna 533155731

CHUTE CRANK ASSY - SHORT

$

$

Not available

532165804

Husqvarna 532165804

RUBBER GROMMET
(Superseded to 532173860)

$

$

Not available

532155724

Husqvarna 532155724

BRACKET..
(Superseded to 532173860)

$

$

Not available

533155715

Husqvarna 533155715

WASHER
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

725246161

Husqvarna 725246161

BOLT FLANGE - M8X50

$

$

Not available

533155746

Husqvarna 533155746

COTTER PIN
(Superseded to 721618701)

$4.99

$

In Stock, only 3 left!

0

532161465

Husqvarna 532161465

COUPLING..
(Superseded to 506739601)

$

$

Not available

725245961

Husqvarna 725245961

BOLT FLANGE - M8X40\

$

$

Not available

732261801

$

$

Not available

533155715

Husqvarna 533155715

WASHER
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

732261801

$

$

Not available

533155715

Husqvarna 533155715

WASHER
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

532161396

Husqvarna 532161396

BRACKET
(Superseded to 506739001)

$

$

Not available

533170128

Husqvarna 533170128

HOSE CLAMP
(Superseded to 539976966)

$4.99

$

Usually ships in 3-10 days

0

532161397

Husqvarna 532161397

HOLD DOWN CLIP

$

$

Not available

531002535

Husqvarna 531002535

COVER WORM CRAND - RUBBER

$

$

Not available

506739901

Husqvarna 506739901

WASHER - WAVE SPRING M14

$

$

Not available

506739301

Husqvarna 506739301

GEAR - WORM, CHUTE CRANK

$

$

Not available

506739801

Husqvarna 506739801

ROLL PIN - M3X20

$

$

Not available

506710901

Husqvarna 506710901

FLANGE PLASTIC - CHUTE ROTATE

$

$

Not available

506739901

Husqvarna 506739901

WASHER - WAVE SPRING M14

$

$

Not available

725244961

Husqvarna 725244961

BOLT FLANGE - M8X16

$1.49

$

Usually ships in 3-10 days

0

506712001

Husqvarna 506712001

HAND GUARD ASSY

$

$

Not available

506737701

Husqvarna 506737701

GLIDE PLASTIC - CHUTE FLANGE

$

$

Not available

506737601

Husqvarna 506737601

PLATE SPRING

$

$

Not available

532155901

$

$

Not available

532161398

Husqvarna 532161398

UPPER FLEX SHAFT HSNG ASSY

$

$

Not available

506739101

Husqvarna 506739101

CHUTE WORM SUPPORT BRKT ASSY

$

$

Not available

531002577

$

$

Not available

725236871

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, only 4 left!

0

532161874

$

$

Not available

734116541

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0
