ST 926 - Husqvarna 26" Snow Blower (1996-12) Cover Parts Diagram

26" Snow Blower

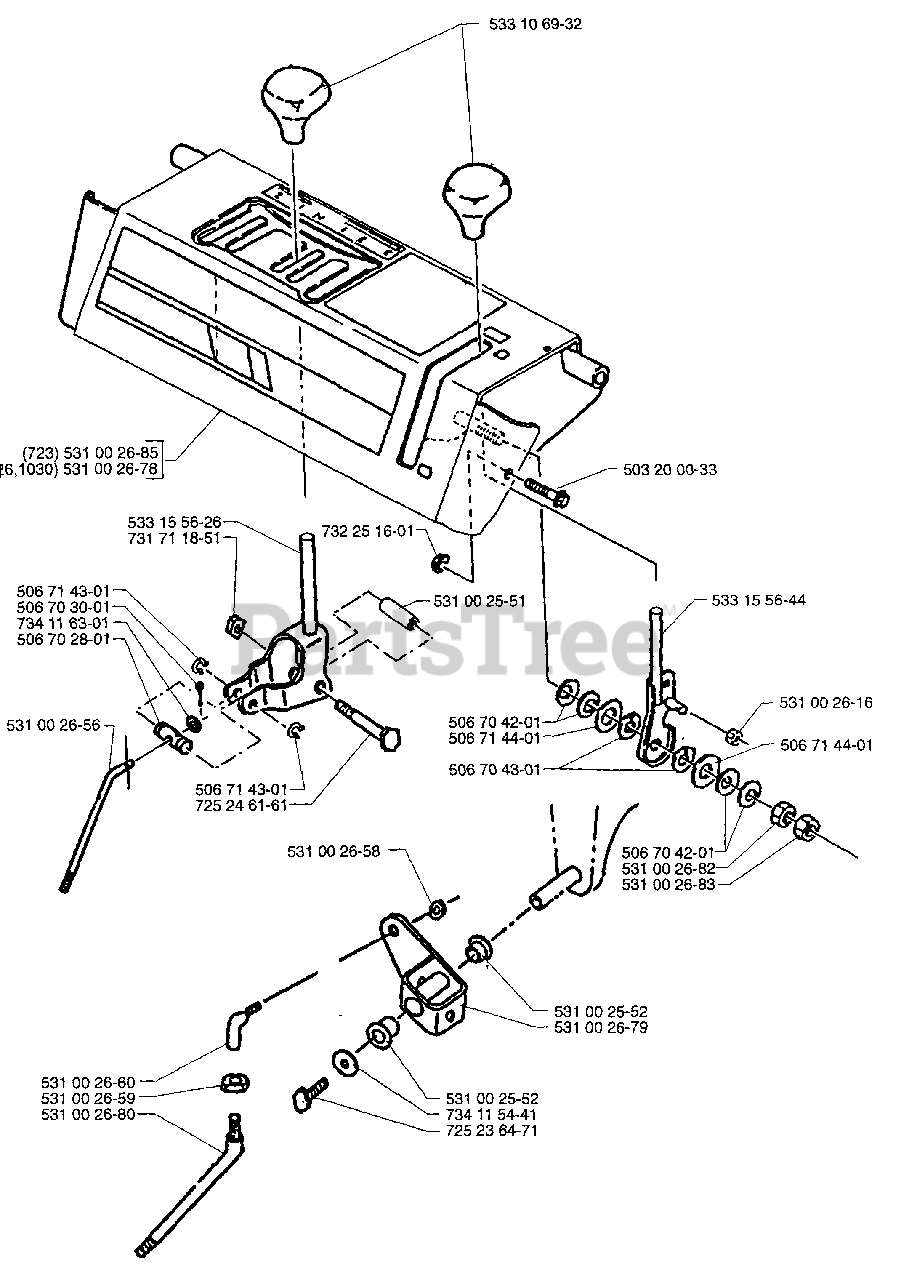

Cover Parts Diagram

  • Title
533106932

Husqvarna 533106932

T-Knob, 3/8 Hole
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

531002685

Husqvarna 531002685

CONTROL BOX

$

$

Not available

531002678

Husqvarna 531002678

CONTROL PANEL REMOTE ASSY 26"
(Superseded to 531002526)

$

$

Not available

533155626

Husqvarna 533155626

GEAR SHIFT LEVER

$

$

Not available

731711851

Husqvarna 731711851

NUT FLANGE - M8
(Superseded to 532155901)

$

$

Not available

732251601

Husqvarna 732251601

NUT FLANGE - M6

$3.49

$

In Stock, Qty 11

0

506714301

Husqvarna 506714301

RETAINING RING - M12 - C

$

$

Not available

506703001

Husqvarna 506703001

COTTER PIN - M2X20

$

$

Not available

734116301

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

506702801

Husqvarna 506702801

PIVOT - UPR CLUTCH ROD

$

$

Not available

531002656

Husqvarna 531002656

ROD - CLUTCH UPR 5/16-24

$

$

Not available

506714301

Husqvarna 506714301

RETAINING RING - M12 - C

$

$

Not available

725246161

Husqvarna 725246161

BOLT FLANGE - M8X50

$

$

Not available

531002658

Husqvarna 531002658

NUT LOCK TOP - 5/16-24 NYLOCK

$

$

Not available

531002551

Husqvarna 531002551

SLEEVE SHIFT LEVER

$

$

Not available

506704201

Husqvarna 506704201

WASHER - CONICAL SPRING M10

$

$

Not available

506714401

Husqvarna 506714401

WASHER - 26X10.5X2.3

$

$

Not available

506704301

Husqvarna 506704301

WASHER THRUST

$

$

Not available

531002660

Husqvarna 531002660

BALL JOINT - 5/16-24

$

$

Not available

531002659

Husqvarna 531002659

NUT - 5/16-24

$

$

Not available

531002680

Husqvarna 531002680

ROD - SHIFTER UPR 5/16-24
(Superseded to 531002555)

$

$

Not available

531002552

Husqvarna 531002552

BUSHING FLANGE - PLASTIC

$

$

Not available

734115441

Husqvarna 734115441

Washer, M6
(Superseded to 531003379)

$4.99

$

In Stock, only 2 left!

0

725236471

Husqvarna 725236471

BOLT FLANGE - M6X12
(Superseded to 725236451)

$3.49

$

Usually ships in 3-10 days

0

531002552

Husqvarna 531002552

BUSHING FLANGE - PLASTIC

$

$

Not available

531002679

Husqvarna 531002679

SHIFTER ARM ASSY

$

$

Not available

506704201

Husqvarna 506704201

WASHER - CONICAL SPRING M10

$

$

Not available

531002682

Husqvarna 531002682

NUT - 3/8-16

$

$

Not available

531002683

Husqvarna 531002683

NUT LOCK TOP - 3/8-16 NYLOCK

$

$

Not available

506714401

Husqvarna 506714401

WASHER - 26X10.5X2.3

$

$

Not available

531002616

Husqvarna 531002616

NUT LOCK CENTRE - 5/16-18

$

$

Not available

533155644

$

$

Not available

503200033

Husqvarna 503200033

BOLT FLANGE - M6X35
(Superseded to 725537655)

$4.99

$

In Stock, Qty 13

0
