ST 8526 (1694997) - Frontier 26" Snow Thrower (2006) Gear Case Assembly (1732303) Parts Diagram

26" Snow Thrower

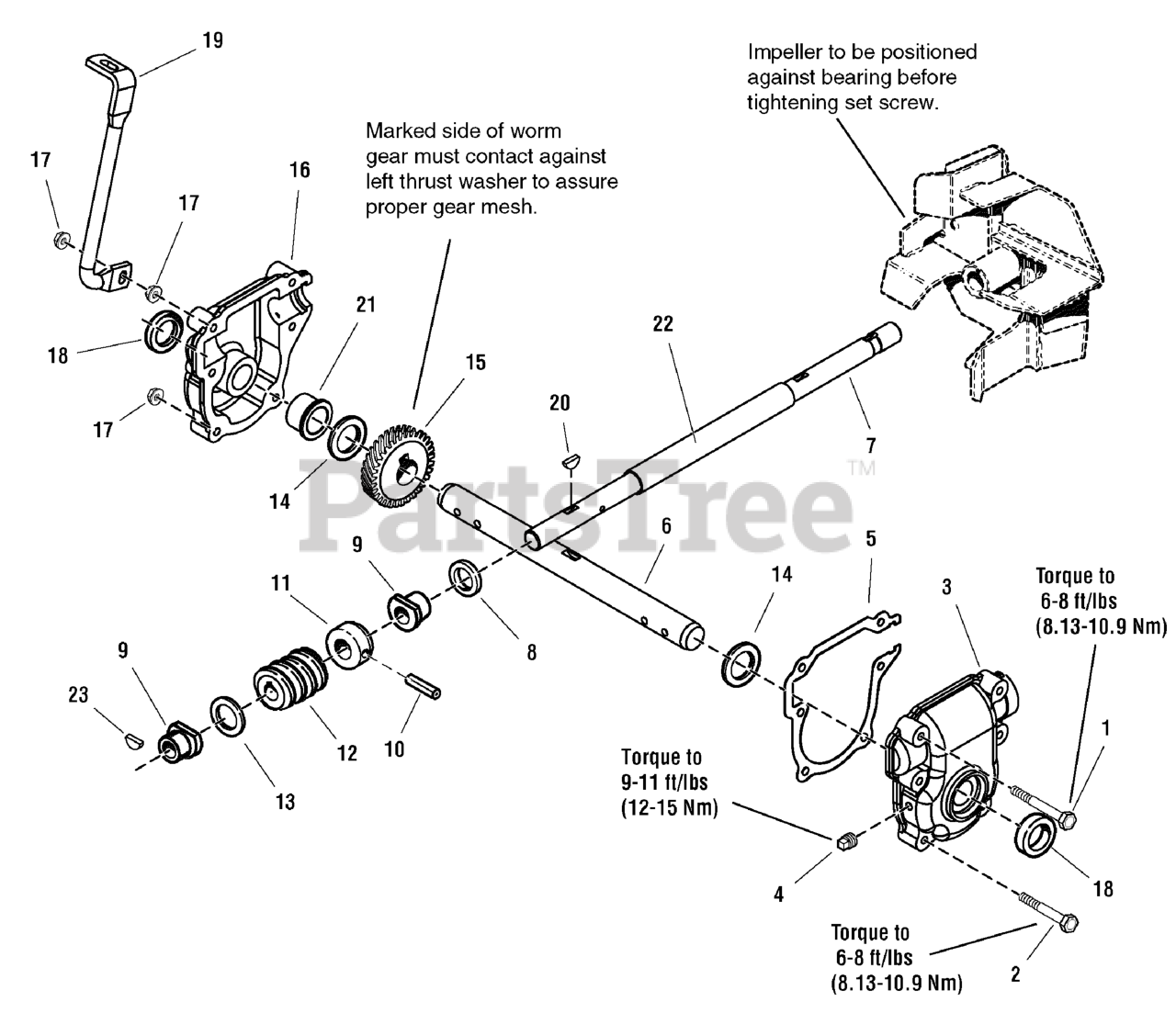

Gear Case Assembly (1732303) Parts Diagram

  • Title
1

Murray MT1923282

CAPSCREW, 1/4 - 20 x 2-1/2

$

$

Currently unavailable

2

Murray MT1960346

CAPSCREW, 1/4 - 20 x 2-1/4

$

$

Currently unavailable

3

Murray MT1612136

GEAR CASE, L.H.

$

$

Currently unavailable

4

Murray MT1668971

TAPERED PIPE PLUG

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Murray MT1732440

SHAFT, Auger Cutoff

$

$

Currently unavailable

7

Murray MT1732182

SHAFT, Worm Cutoff

$

$

Currently unavailable

8

Murray MT1612093

SEAL, Oil

$

$

Currently unavailable

9

Murray MT1612149

FLANGE BUSHING

$

$

Currently unavailable

10

Murray MT2836098

PIN, Drive Lock

$

$

Currently unavailable

11

Murray MT1612127

THRUST COLLAR

$

$

Currently unavailable

12

Murray MT1612142

ROLLED WORM CASE

$

$

Currently unavailable

13

Murray MT2168111

THRUST WASHER

$

$

Currently unavailable

14

Murray MT2118315

THRUST WASHER

$

$

Currently unavailable

15

Murray MT1612141

GEAR, Worm

$

$

Currently unavailable

16

Murray MT1612137

GEAR CASE, R.H.

$

$

Currently unavailable

17

Murray MT1930642

NUT, Top Lock Flange, 1/4 - 20

$

$

Currently unavailable

$

$

Currently unavailable

19

Murray MT1732152

WIREFORM BRACKET

$

$

Currently unavailable

20

Murray MT2818312

KEY, Woodruff

$

$

Currently unavailable

21

$

$

Currently unavailable

$

$

Currently unavailable

23

Murray MT2830246

KEY, Woodruff

$

$

Currently unavailable
