ST 8526 (1694997) - Frontier 26" Snow Thrower (2006) Auger Housing and Chute Group - 26" & 28" Parts Diagram

26" Snow Thrower

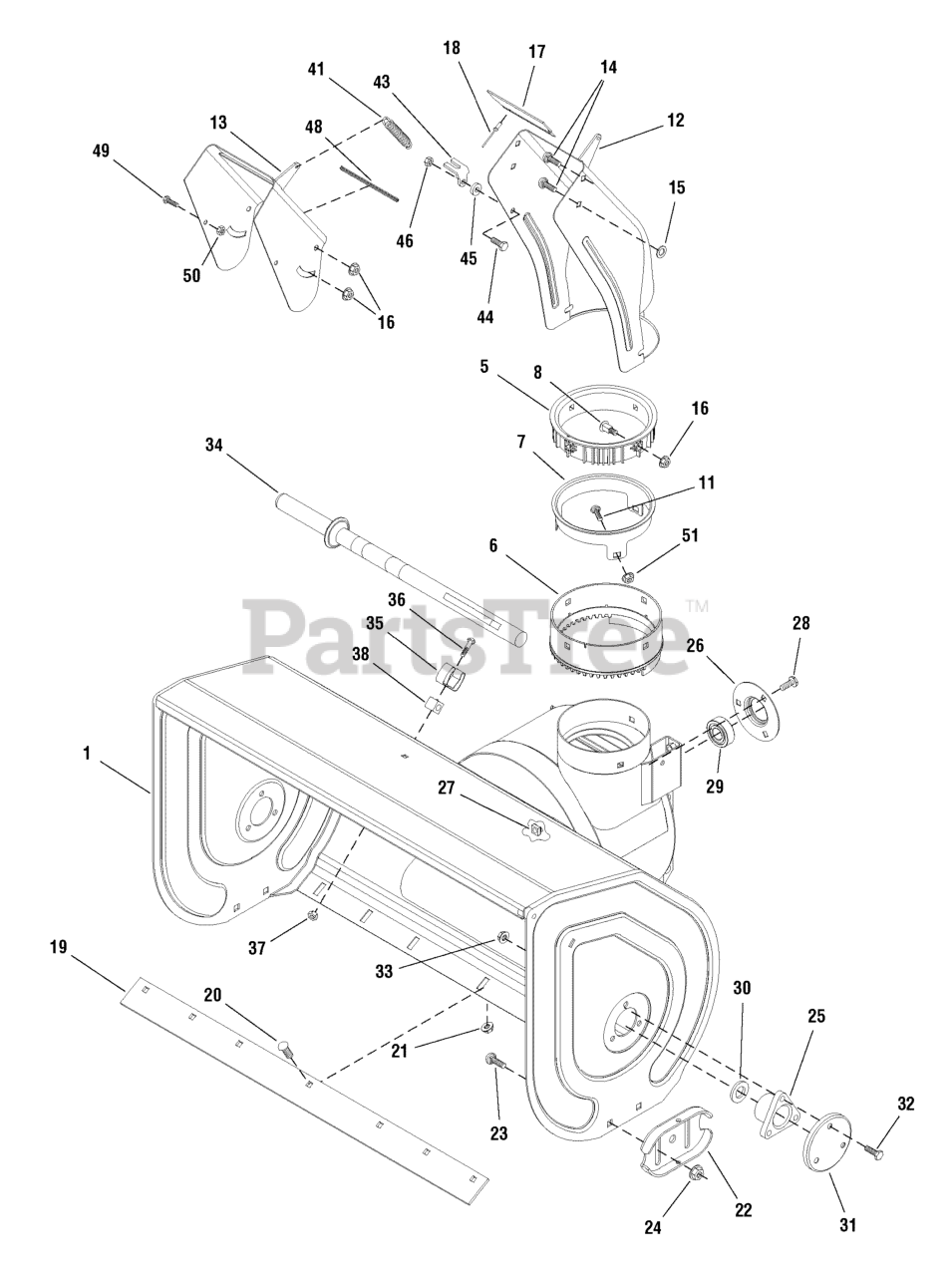

Auger Housing and Chute Group - 26" & 28" Parts Diagram

  • Title

1

Murray MT1732294

HOUSING ASSEMBLY, 26"

$

$

Currently unavailable

1

Murray MT1733637

HOUSING ASSEMBLY, 28"

Note: (Used On ST9528)

$

$

Currently unavailable

5

Murray MT337227

RING, Retainer, Inner

Note: (Used On ST8526)

$

$

Currently unavailable

6

Murray MT1734349

RING, Outer Chute

$

$

Currently unavailable

7

Murray MT1732087

ADAPTER, Chute Ring 14GA

$

$

Currently unavailable

8

Murray MT2X100

CARRIAGE BOLT, 5/16-18 x 1

$

$

Currently unavailable

11

Murray MT1931332

CARRIAGE BOLT, 5/16-18 x 5/8 G5

$

$

Currently unavailable

12

Murray MT761169E511

CHUTE & BRACKET ASSEMBLY, Lower

$

$

Currently unavailable

13

Murray MT725631F

CHUTE ASSEMBLY

$

$

Currently unavailable

14

Murray MT1931333

CARRIAGE BOLT, 5/16-18 x 3/4 G5

$

$

Currently unavailable

15

Murray MT12021

WASHER

$

$

Currently unavailable

16

Murray MT1960686

NUT, Hex Flange ESNA, 5/16-18

$

$

Currently unavailable

17

Murray MT762322

FLAP, Chute Insert

$

$

Currently unavailable

18

Murray MT2831243

RIVET, Pop

$

$

Currently unavailable

19

Murray MT1709947A

BLADE, Scraper for 28"

Note: (Used on Model ST9528)

$

$

Currently unavailable

19

Murray MT1732384A

BLADE, Scraper 26"

Note: (Used On ST8526)

$

$

Currently unavailable

20

Murray MT1960699

CARRIAGE BOLT, 5/16-18 x 5/8 G5

$

$

Currently unavailable

21

Murray MT1935048

NUT, Hex Flange Two-Way Lock, 5/16-18

$

$

Currently unavailable

22

Murray MT1727854A

SKID, Shoe Reversible

$

$

Currently unavailable

23

Murray MT1960711

CARRIAGE BOLT, 3/8-16 x 3/4 G5

$

$

Currently unavailable

24

Murray MT1960687

NUT, Hex Flange ESNA, 3/8-16

$

$

Currently unavailable

25

Murray MT1665980

BEARING, Flange
(Superseded to 1665980SM)

$

$

Not available

26

Murray MT1665982A

BEARING, Retainer

$

$

Currently unavailable

27

Murray MT1930659

RETAINER, Nut, 5/16-18

$

$

Currently unavailable

28

Murray MT1960738

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4

$

$

Currently unavailable

29

Murray MT1729578

BEARING, Greased

$

$

Currently unavailable

30

Murray MT1663189

SPACER

$

$

Currently unavailable

31

Murray MT1668639F

CAP, Bearing

$

$

Currently unavailable

32

Murray MT1923325

CAPSCREW, Hex Head, 5/16-18 x 7/8 G5

$

$

Currently unavailable

33

Murray MT1931277

NUT, Hex Flange Whiz Lock, 5/16-18

$

$

Currently unavailable

34

Murray MT1733209

STICK, Cleanout w/Brush

$

$

Currently unavailable

35

Murray MT1501672

CLIP, Retainer

$

$

Currently unavailable

36

Murray MT2860604

SCREW, Hex Washer Head Slot

$

$

Currently unavailable

37

Murray MT1933896

NUT, Hex Lock 10-24 with Nylon Insert

$

$

Currently unavailable

38

Murray MT578063

BLOCK, Universal Pivot

$

$

Currently unavailable

41

Murray MT1733455

SPRING, Extension

$

$

Currently unavailable

43

Murray MT723120

BRACKET, Remote Chute

Note: (Item must pivot freely)

$

$

Currently unavailable

44

Murray MT1921332

CAPSCREW, Hex Head, 5/16-18 x 3/4 G5

$

$

Currently unavailable

45

Murray MT73787

WASHER

$

$

Currently unavailable

46

Murray MT1923362

NUT, Hex Centerlock, 5/16-18

$

$

Currently unavailable

48

Murray MT1732533

EDGING, with Adhesive

$

$

Currently unavailable

49

Murray MT310088

BOLT, Shroud 1/4 x 5/16-1/4

$

$

Currently unavailable

50

Murray MT1960608

NUT, Hex Flange Centerlock, 1/4-20

$

$

Currently unavailable

51

Murray MT1960684

NUT, Hex Keps Conical Washer, 5/16-18

$

$

Currently unavailable
