ST 826 E - Husqvarna 26" Snow Blower (1995-01) Gear Box/Impeller Parts Diagram

26" Snow Blower

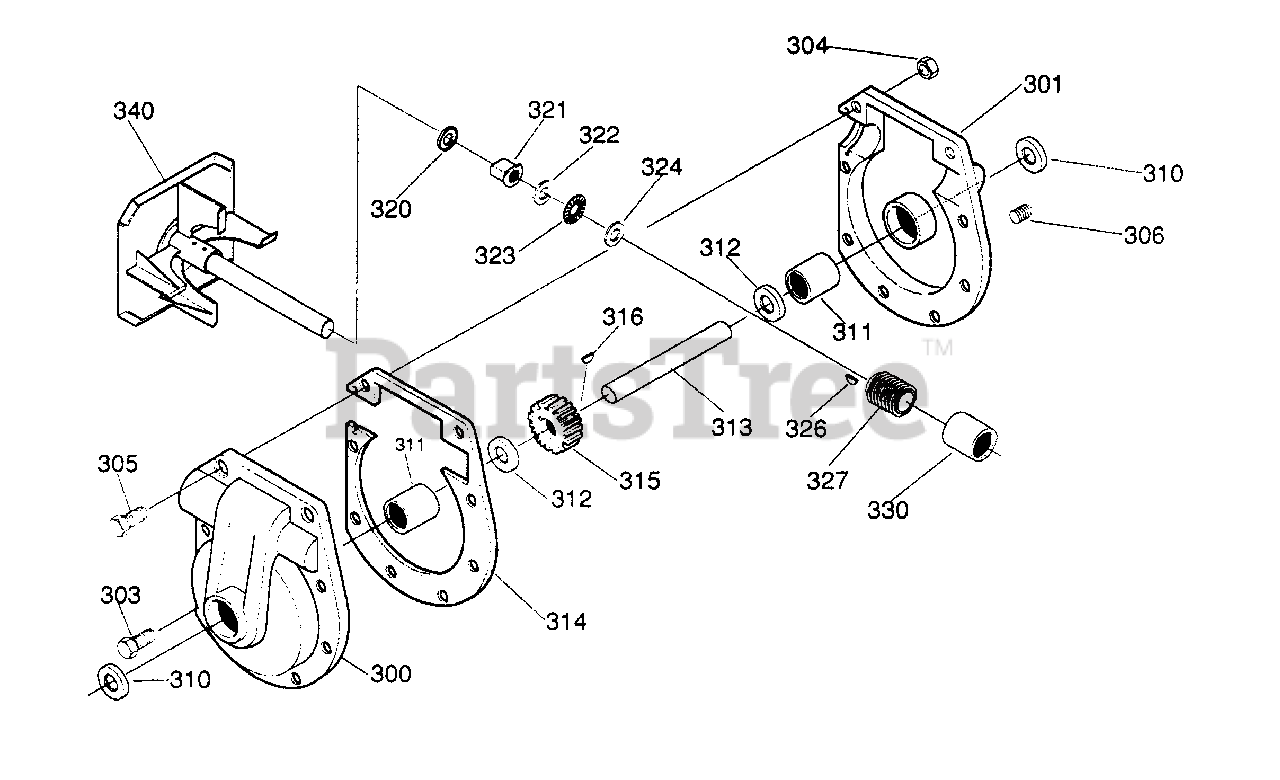

Gear Box/Impeller Parts Diagram

  • Title

300

Husqvarna 601001487

CASE, GEAR, RH

$

$

Not available

301

Husqvarna 601001488

CASE, GEAR, LH

$

$

Not available

303

Husqvarna 601001443

SCREW, 5/16-240.00 HHC

$

$

Not available

304

Husqvarna 601000762

NUT, 5/16-24 HEXWDFLLK
(Superseded to 601000823)

$

$

Not available

305

Husqvarna 601001607

SCREW, 5/16-240.50 HHC

$

$

Not available

306

Husqvarna 601001490

PIPE PLUG

$

$

Not available

310

Husqvarna 601001491

SEAL, OIL CR 530552 #53744
(Superseded to 601002324)

$14.99

$

Usually ships in 3-10 days

0

311

Husqvarna 601001492

BEARING, SLEEVE

$

$

Not available

312

Husqvarna 601001493

FLATWASHER

$

$

Not available

313

Husqvarna 601001608

SHAFT, AUGER OUTPUT MF 22"

$

$

Not available

314

Husqvarna 601001495

GASKET, GEAR BOX

$

$

Not available

315

Husqvarna 601001496

WORM GEAR

$

$

Not available

316

Husqvarna 601001497

KEY, WDRF #91 .75 DIAx.25 WD

$

$

Not available

320

Husqvarna 601001498

RING, QUAD

$

$

Not available

321

Husqvarna 601001499

BEARING, FL .753 IDx1.128 ODx1.03

$

$

Not available

322

Husqvarna 601001500

FLATWASHER,.752x1.24x.093 PL

$

$

Not available

323

Husqvarna 601001501

BEARING, ROLL

$

$

Not available

324

Husqvarna 601001500

FLATWASHER,.752x1.24x.093 PL

$

$

Not available

326

Husqvarna 601001502

KEY, HI-PRO 606 .75DIAx.187WD

$

$

Not available

327

Husqvarna 601001503

WORM GEAR

$

$

Not available

330

Husqvarna 601001504

BEARING, SLEEVE.752 IDx.88 ODx.755

$

$

Not available

340

Husqvarna 601001505

IMPELLER ASSEMBLY
(Superseded to 601002484)

$

$

Not available
