ST 826 E - Husqvarna 26" Snow Blower (1995-01) Frame Components Parts Diagram

26" Snow Blower

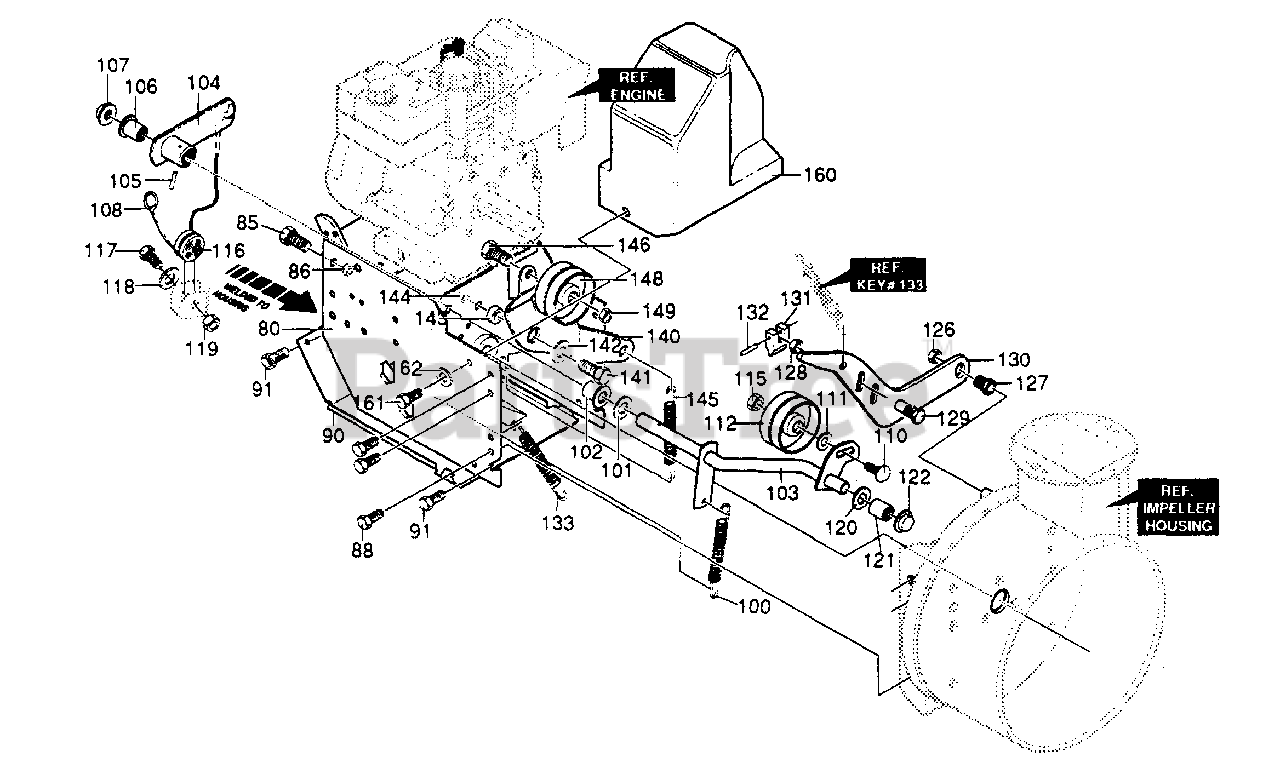

Frame Components Parts Diagram

  • Title

80

Husqvarna 601001595

FRAME, ASSY ENGINE MT 16"

$

$

Not available

85

Husqvarna 601001443

SCREW, 5/16-241.00 HHC

$

$

Not available

86

Husqvarna 601001662

NUT, 5/16-24 HEXWDFLLK
(Superseded to 601000823)

$

$

Not available

88

Husqvarna 601000519

SCREW, 5/16-18x.50 WAHHTAP

$

$

Not available

90

Husqvarna 601001444

COVER, BOTTOM WHEEL DR

$

$

Not available

91

Husqvarna 601001445

SCREW, 1/4-20x.63 WAHHTAP

$

$

Not available

100

Husqvarna 601001089

IDLER SPRING

$

$

Not available

101

Husqvarna 601001446

FLATWASHER,.53x1.00x.063

$

$

Not available

102

Husqvarna 601001447

BEARING, FLANGE

$

$

Not available

103

Husqvarna 601001597

ASSY, SHAFT AUG CLUTCH

$

$

Not available

104

Husqvarna 601001436

LEVER, ASSY AUGER CLUTCH CABLE

$

$

Not available

105

Husqvarna 601001451

PIN, SPRING. 165DIAx.88LG HD

$

$

Not available

106

Husqvarna 601001447

BEARING, FLANGE

$

$

Not available

107

Husqvarna 601001452

NUT, 1/2 PUSHON

$

$

Not available

108

Husqvarna 601001453

CABLE, .205 EYE 6.125 LG

$

$

Not available

110

Husqvarna 601001598

CARR. BOLT, 3/8-16x1.25

$

$

Not available

111

Husqvarna 601000020

FLATWASHER, .406x.81 x.065

$

$

Not available

112

Husqvarna 601001454

PULLEY, IDLER

$

$

Not available

115

Husqvarna 601001335

NUT, 3/8-16 HXCTRLKJAM

$

$

Not available

116

Husqvarna 601001455

SPOOL, CABLE AUGER CLUTCH

$

$

Not available

117

Husqvarna 601001456

SCREW, 1/4-200.75

$

$

Not available

118

Husqvarna 601000018

FLATWASHER, .281x.63x.065

$

$

Not available

119

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

120

Husqvarna 601001446

FLATWASHER, .53x1.090x.063

$

$

Not available

121

Husqvarna 601001599

BEARING, SLEV

$

$

Not available

122

Husqvarna 601001452

NUT, 1/2 PUSH ON

$

$

Not available

126

Husqvarna 601001601

NUT, 9/16-18 HEXJAMCTRLK

$

$

Not available

127

Husqvarna 601001602

BOLT, BRAKE ARM 9/16-18

$

$

Not available

128

Husqvarna 601001603

NUT, 1 /2-20 JAM

$

$

Not available

129

Husqvarna 601001604

BOLT-BRAKE ARM ADJ

$

$

Not available

130

Husqvarna 601001605

BRAKE ARM BRACKET

$

$

Not available

131

Husqvarna 601001459

PAD, AUGER/IMPELLER BRAKE

$

$

Not available

132

Husqvarna 601001451

PIN, SPRING. 165DIAX.88LG

$

$

Not available

133

Husqvarna 601001460

SPRING, TENSION RETURN

$

$

Not available

140

Husqvarna 601001461

LEVER, IDLER ARM TRACTION

$

$

Not available

141

Husqvarna 601000073

SCREW 5/16-18X.75

$

$

Not available

142

Husqvarna 601001462

FLATWASHER.328X1.25X.075

$

$

Not available

143

Husqvarna 601001463

BUSHING, IDLER LEVER

$

$

Not available

144

Husqvarna 601001464

NUT, 5/16-18 HEXNYL

$

$

Not available

145

Husqvarna 601001089

IDLER SPRING

$

$

Not available

146

Husqvarna 601000033

SCREW 3/8-16X1.25

$

$

Not available

148

Husqvarna 601001454

PULLEY, IDLER

$

$

Not available

149

Husqvarna 601001335

NUT 3/8-16 HXCTRLKJAM

$

$

Not available

160

Husqvarna 601001465

BELT COVER

$

$

Not available

161

Husqvarna 601001445

SCREW 1/4-20X.63 WATAP

$

$

Not available

162

Husqvarna 601000018

FLATWASHER.281 X.63X.065

$

$

Not available
