ST 826 E - Husqvarna 26" Snow Blower (1995-01) Drive Components Parts Diagram

26" Snow Blower

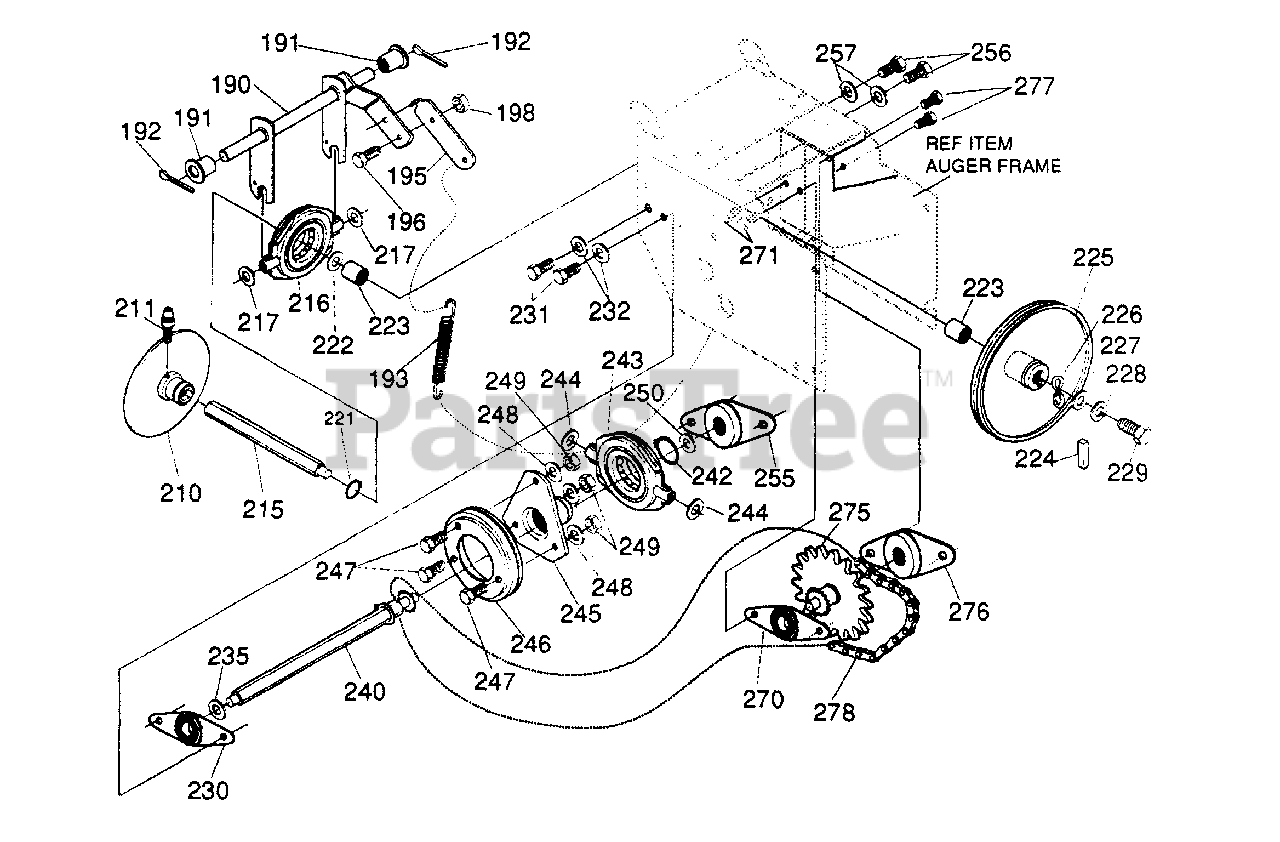

Drive Components Parts Diagram

  • Title

190

Husqvarna 601001466

LEVER, ASSY TRACT CLUTCH

$

$

Not available

191

Husqvarna 601001447

BEARING, FLANGED

$

$

Not available

192

Husqvarna 601000930

PIN, COTTER .125 DIAx1.00 LG

$

$

Not available

193

Husqvarna 601001467

SPRING, RETURN

$

$

Not available

195

Husqvarna 601001468

LEVER, SPRING TRAC CL

$

$

Not available

196

Husqvarna 601001374

SCREW, 1/4-20x.63

$

$

Not available

198

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

210

Husqvarna 601001469

DISC, ASSY FRICTION WHEEL
(Superseded to 601002031)

$

$

Not available

211

Husqvarna 601001470

ZERK, GREASE .25-28x1.12 LONG

$

$

Not available

215

Husqvarna 601001471

SHAFT, HEX TRACTION

$

$

Not available

216

Husqvarna 601001472

BEARING, TRUNION 1.25 ID

$

$

Not available

217

Husqvarna 601001473

FLATWASHER, .505x1.00x.06

$

$

Not available

221

Husqvarna 601001474

RING, RETEX1.16x.05

$

$

Not available

222

Husqvarna 601001475

FLATWASHER,.680x1.12x.060

$

$

Not available

223

Husqvarna 601000565

BEARING, BALL 6203-2AA

$

$

Not available

224

Husqvarna 601001476

KEY, SQUARE. 18 SOx.63 LONG

$

$

Not available

225

Husqvarna 601001477

PULLEY, V3L- 6.50x.56

$

$

Not available

226

Husqvarna 601001478

WASHER, WAVE .675x1.00x.020

$

$

Not available

227

Husqvarna 801000003

FLATWASHER, .281x1.00x.063

$

$

Currently unavailable

228

Husqvarna 601000014

WASHER, SPTLK.263x.49x.07

$

$

Not available

229

Husqvarna 601000068

SCREW, 1/4-20x.75

$

$

Not available

230

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available

231

Husqvarna 601000519

SCREW, 5/16-18x.50 WAHHTAP

$

$

Not available

232

Husqvarna 601000023

WASHER, SPTLK.328 X.60X.09

$

$

Not available

235

Husqvarna 601001484

WASHER, SP .502X .75X.0605

$

$

Not available

240

Husqvarna 601001481

SHAFT & SPRKT, ASSY #40-8T
(Superseded to 601002475)

$

$

Not available

242

Husqvarna 601001474

RING, RETEX 1.16X.05

$

$

Not available

243

Husqvarna 601001472

BEARING, TRUNION 1.2.5 ID

$

$

Not available

244

Husqvarna 601001473

FLATWASHER,.505X1.00X.06

$

$

Not available

245

Husqvarna 601001482

HUB, FRICTION WHEEL

$

$

Not available

246

Husqvarna 601001483

WHEEL, FRICTION DISC 4.375 OD

$27.99

$

In Stock, Qty 20+

0

247

Husqvarna 601001374

SCREW, 1/4-20X .63

$

$

Not available

248

Husqvarna 601000014

WASHER, SPTLK.26 X.50X.06

$

$

Not available

249

Husqvarna 601000011

NUT, 1/4-20 REGHEX

$

$

Not available

250

Husqvarna 601001484

WASHER, SP .502X .75X.0605

$

$

Not available

255

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available

256

Husqvarna 601000519

SCREW, 5/16-18X .50

$

$

Not available

257

Husqvarna 601000023

WASHER, SPTLK.328 X.60X.09

$

$

Not available

270

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available

271

Husqvarna 601000519

SCREW, 5/16-18X .50

$

$

Not available

275

Husqvarna 601001606

SPROCKET, ASSY 8T & 36T-41

$

$

Not available

276

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available

277

Husqvarna 601000519

SCREW, 5/16-18X .50

$

$

Not available

278

Husqvarna 601001486

CHAIN, ROLLER #42x40

$

$

Not available
