ST 826 E - Husqvarna 26" Snow Blower (1995-01) Augers/Housing Parts Diagram

26" Snow Blower

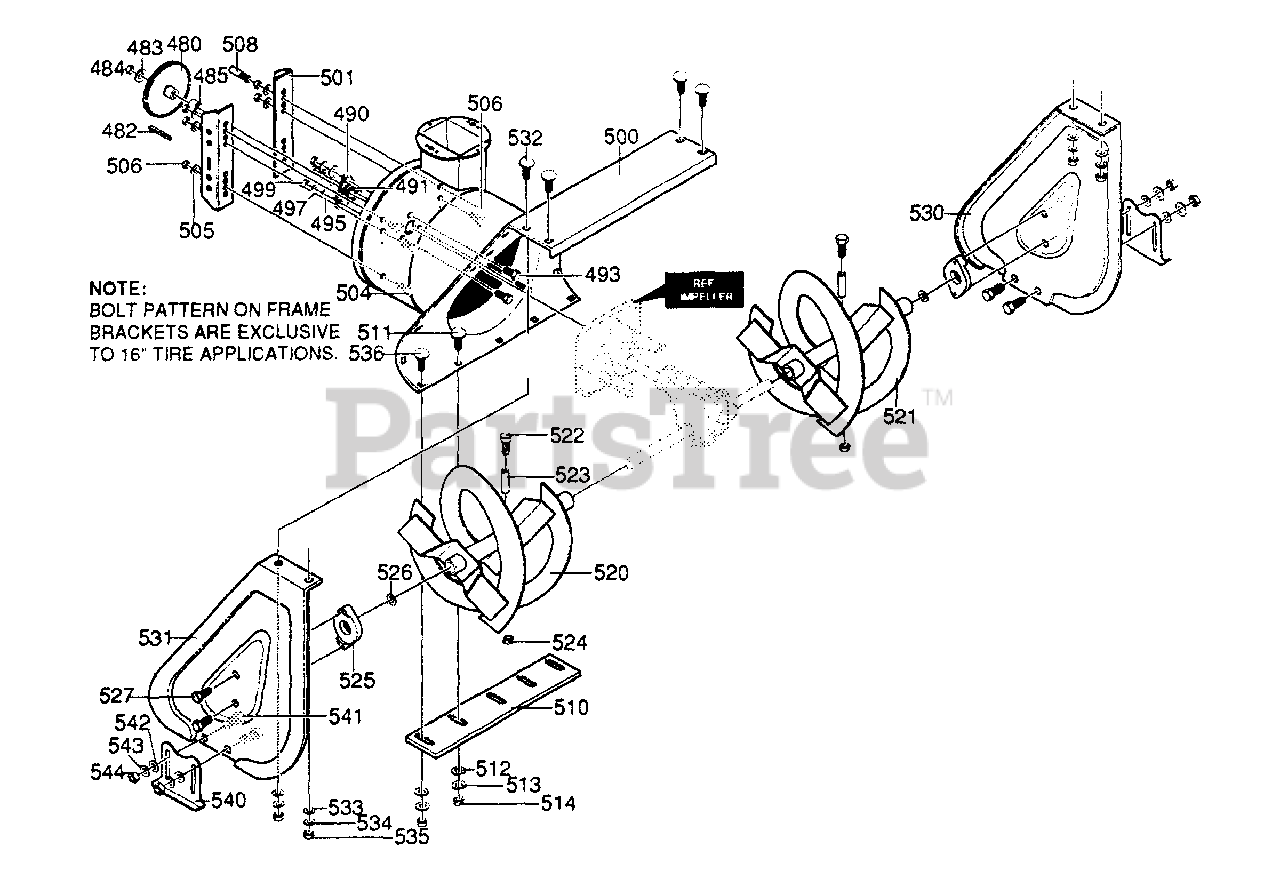

Augers/Housing Parts Diagram

  • Title

480

Husqvarna 601001609

PULLEY, V4L- 8.40 OD

$

$

Not available

482

Husqvarna 601001507

KEY, SQUARE.18 SQx.88 LG

$

$

Not available

483

Husqvarna 601001446

FLATWASHER,.53x1.00x.063

$

$

Not available

484

Husqvarna 601000107

NUT, 1 /2-20 REGHXCTRLK

$

$

Not available

485

Husqvarna 601001610

SPACER, SLEV.676x1.00x.53

$

$

Not available

490

Husqvarna 601001509

RETAINER, BALL BRNG

$

$

Not available

491

Husqvarna 601000565

BRNG, BALL 6203-2AA-C3

$

$

Not available

493

Husqvarna 601000073

SCREW, 5/16-18x.75 HHC

$

$

Not available

495

Husqvarna 601000019

FLATWASHER, .344x.69x.065

$3.49

$

In Stock, only 1 left!

0

497

Husqvarna 601000023

WASHER, HVSPTLK.328x.60x.09

$

$

Not available

499

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

500

Husqvarna 601001611

HOUSING, ASSY

$

$

Not available

501

Husqvarna 601001612

BRACKET & NUTS ASSY

$

$

Not available

504

Husqvarna 601001512

SCREW 3/8-16x.75

$

$

Not available

505

Husqvarna 601000015

WASHER .393x.68x.10

$

$

Not available

506

Husqvarna 601000060

NUT, 3/8-16 REGHEXCTRLK
(Superseded to 601002407)

$

$

Not available

508

Husqvarna 601001613

HUB, BRAKE ARM

$

$

Not available

510

Husqvarna 601001614

BLADE, SCRAPER, MF 27"

$

$

Not available

511

Husqvarna 601001411

BOLT, 5/16-18x.75 CARRLN

$

$

Not available

512

Husqvarna 601000019

FLATWASHER, .344x.69x.065

$3.49

$

In Stock, only 1 left!

0

513

Husqvarna 601000023

WASHER, HVSPTLK.328x.60x.09

$

$

Not available

514

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

520

Husqvarna 601001615

AUGER, ASSY MF LH 25"

$

$

Not available

521

Husqvarna 601001616

AUGER, ASSY MF RH 25"

$

$

Not available

522

Husqvarna 601001456

SCREW, 1/4-20x1.75 HHCFT

$

$

Not available

523

Husqvarna 601001517

SPACER, SLEV.250x.47x.20

$5.99

$

In Stock, Qty 6

0

524

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

525

Husqvarna 601001518

AUGER SHAFT BEARING

$

$

Not available

526

Husqvarna 601001519

FLATWASHER, 1.005x1.31x.035

$

$

Not available

527

Husqvarna 601000520

SCREW, 5/16-18x.75 WAHHTAP

$

$

Not available

530

Husqvarna 601001617

PLATE, AUGER HSNG END, LH

$

$

Not available

531

Husqvarna 601001618

PLATE, AUGER HSNG END, RH

$

$

Not available

532

Husqvarna 601001411

BOLT, 5/16-18x.75 CARRLN

$

$

Not available

533

Husqvarna 601000019

FLATWASHER, .344x.69x.065

$3.49

$

In Stock, only 1 left!

0

534

Husqvarna 601000023

WASHER, HVSPTLK.328x.60x.09

$

$

Not available

535

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

536

Husqvarna 601000899

BOLT, 5/16-18x1.00 CARRLN

$

$

Not available

540

Husqvarna 601001522

SKID, HEIGHT ADJUST
(Superseded to 601002428)

$

$

Not available

541

Husqvarna 601001411

BOLT, 5/16-18x.75 CARRLN

$

$

Not available

542

Husqvarna 601000019

FLATWASHER, .344x.69x.065

$3.49

$

In Stock, only 1 left!

0

543

Husqvarna 601000023

WASHER, HVSPTLK.328x.60x.09

$

$

Not available

544

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available
