ST 824 E - Husqvarna 24" Snow Blower (1998-02) Handle Assembly Parts Diagram

24" Snow Blower

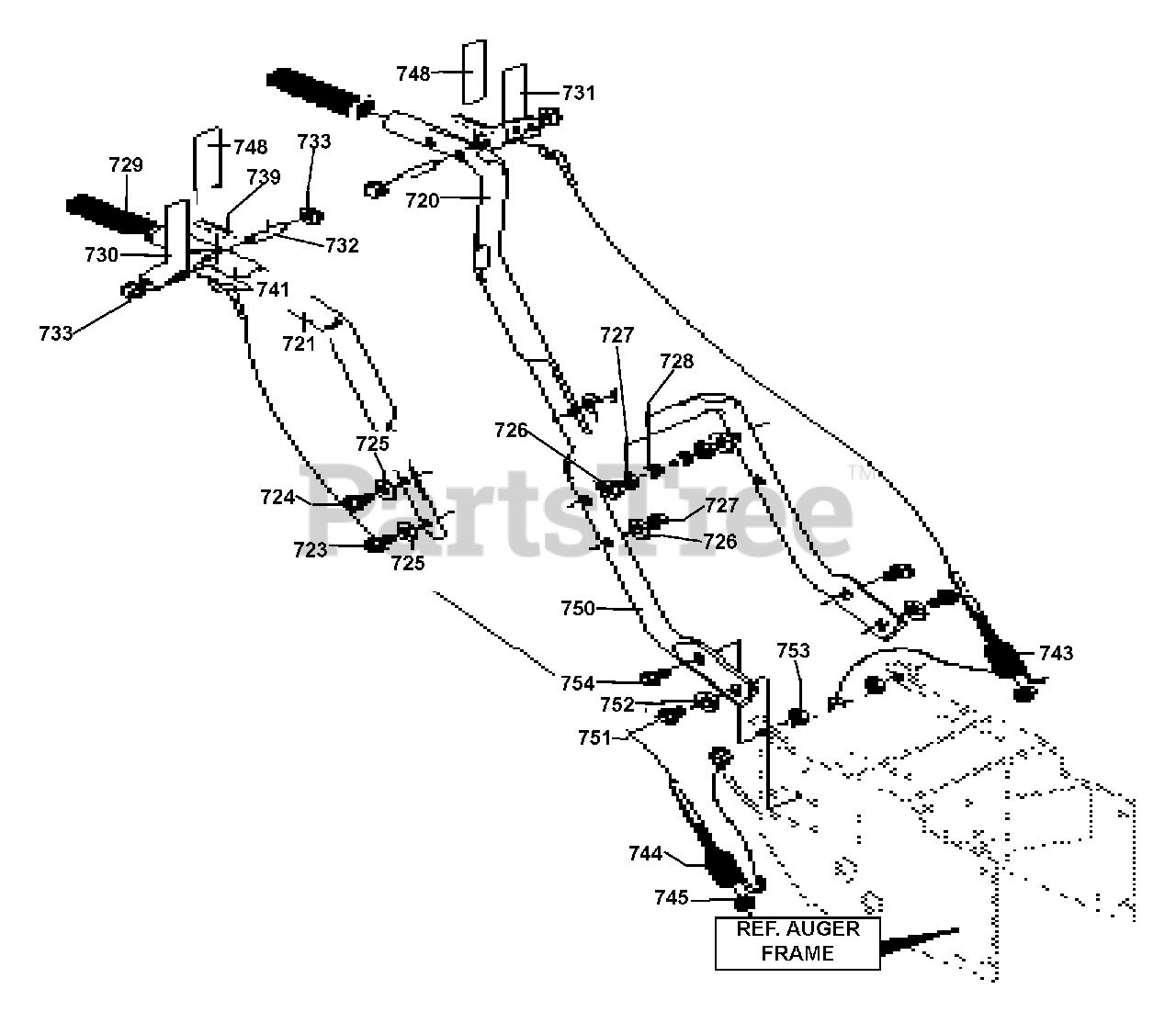

Handle Assembly Parts Diagram

  • Title

720

Husqvarna 601001542

HANDLE, UPPER LH

$

$

Not available

721

Husqvarna 601001543

HANDLE, UPPER RH

$

$

Not available

723

Husqvarna 601001555

SCREW, 3/8-16X2.00

$

$

Not available

724

Husqvarna 601001544

SCREW, 3/8-16X3.00

$

$

Not available

725

Husqvarna 601000020

WASHER, FLAT .406X.81X.065

$

$

Not available

726

Husqvarna 601000075

WASHER, 393X.68X.10

$

$

Not available

727

Husqvarna 601000060

NUT, 3/8-16REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

728

Husqvarna 601001545

STOP, PLASTIC

$

$

Not available

729

Husqvarna 601001546

GRIP, HANDLE

$

$

Not available

730

Husqvarna 601002429

ASSY, CLUTCH LEVER RH
(Superseded to 601002044)

$

$

Not available

731

Husqvarna 601002045

ASSY, CLUTCH LEVER LH

$

$

Not available

732

Husqvarna 601002379

PIN, PIVOT CLUTCH
(Superseded to 601001549)

$

$

Not available

733

Husqvarna 601000516

NUT, PUSH ON NUT

$

$

Not available

739

Husqvarna 601001550

BUMPER, FLAT

$

$

Not available

741

Husqvarna 601001551

CABLE, CLUTCH 32.19"

$

$

Not available

743

Husqvarna 601001552

SPRING, TENSION

$

$

Not available

744

Husqvarna 601001553

SPRING, AUGER CLUTCH

$

$

Not available

745

Husqvarna 601002318

NUT, 1/4-20 RGHXCTRLK

$11.99

$

In Stock, only 2 left!

0

748

Husqvarna 601002380

GRIP, CLUTCH HANDLE

$

$

Not available

750

Husqvarna 601001554

HANDLE, LOWER

$

$

Not available

751

Husqvarna 601000520

SCREW, 5/16-18X .75

$

$

Not available

752

Husqvarna 601000023

WASHER, .328X.60X.09

$

$

Not available

753

Husqvarna 601000059

NUT, 5/16-18

$6.99

$

In Stock, only 2 left!

0
