ST 824 E - Husqvarna 24" Snow Blower (1998-02) Drive Components Assembly Parts Diagram

24" Snow Blower

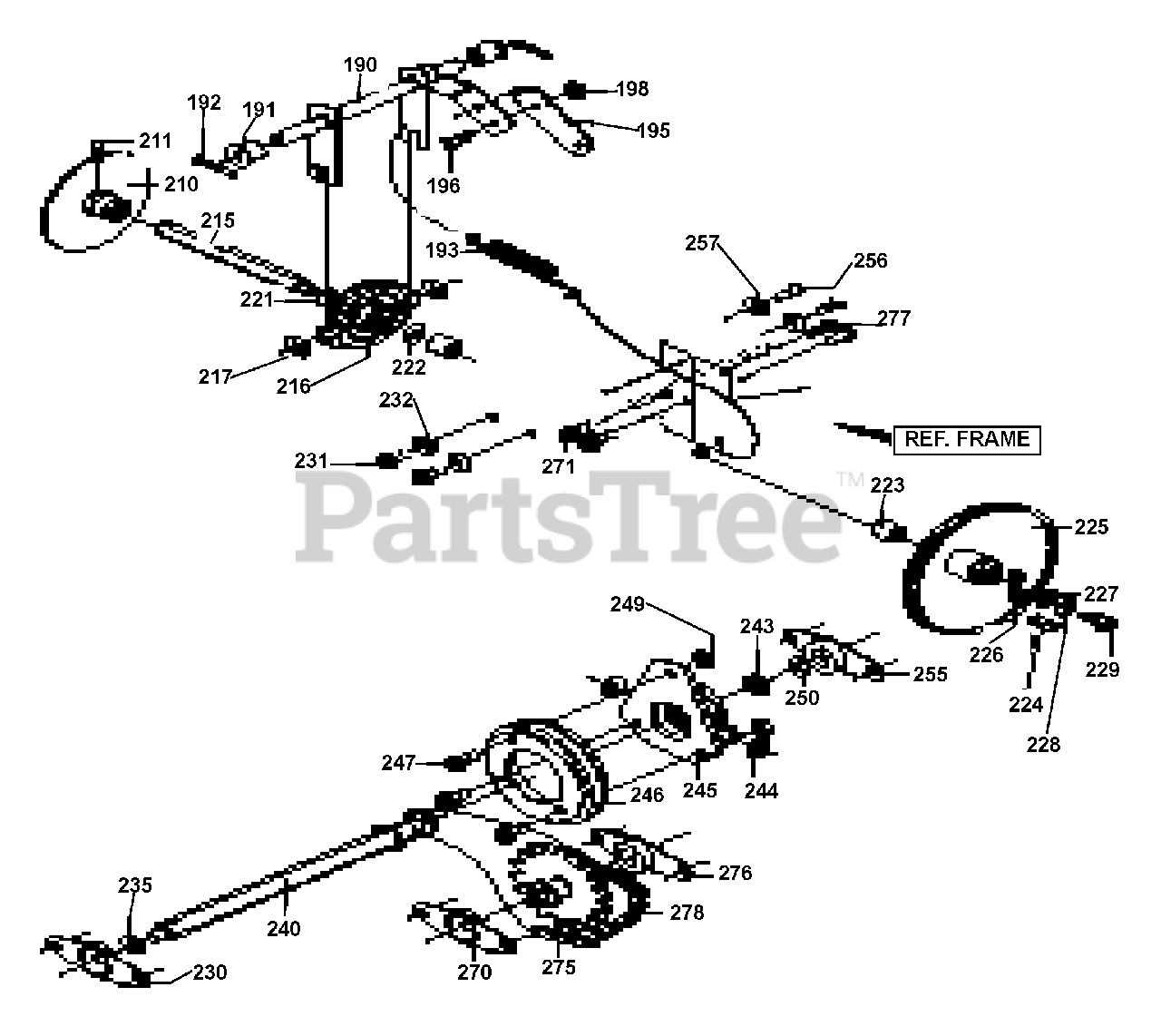

Drive Components Assembly Parts Diagram

  • Title
190

Husqvarna 601001466

LEVER, ASSY TRACTION

$

$

Not available

191

Husqvarna 601001447

BEARING, FLANGE

$

$

Not available

192

Husqvarna 601000930

PIN, COTTER.125DIAX1.00LG

$

$

Not available

193

Husqvarna 601001467

SPRING, RETURN

$

$

Not available

195

Husqvarna 601002317

LEVER, SPRING

$

$

Not available

196

Husqvarna 601001374

SCREW, 1/4-20X .63 HHCFT

$

$

Not available

198

Husqvarna 601002318

NUT, 1/4-20 REGHEXCTRLK

$11.99

$

In Stock, only 2 left!

0

210

Husqvarna 601002031

DISC, ASSY FRICWHL

$

$

Not available

211

Husqvarna 601002319

ZERK, GREASE.25 28X1.12LG

$

$

Not available

215

Husqvarna 601001471

SHAFT, HEX TRACTION

$

$

Not available

216

Husqvarna 601001472

BEARING, TRUNION 1.25 ID

$

$

Not available

217

Husqvarna 601001446

WASHER, FLAT.53 X1.00X.063

$

$

Not available

221

Husqvarna 601001474

RING, RETEX

$

$

Not available

222

Husqvarna 601001475

FLATWASHER.680X1.12X.060

$

$

Not available

223

Husqvarna 601000539

BEARING, BALL
(Superseded to 601000565)

$

$

Not available

224

Husqvarna 601001476

KEY, SQUARE .18SQX.63LG

$

$

Not available

225

Husqvarna 601001477

PULLEY, V3L 6.50X .56

$

$

Not available

226

Husqvarna 601001478

WASHER, WAVE

$

$

Not available

227

Husqvarna 601002321

WASHER, FLAT .281X1.00X.063

$

$

Not available

228

Husqvarna 601000014

WASHER, 263X.49X.07

$

$

Not available

229

Husqvarna 601000068

SCREW, 1/4-20X .75 HHC

$

$

Not available

230

Husqvarna 601001479

BEARING & RETAINER, ASSY

$

$

Not available

231

Husqvarna 601000519

SCREW, 5/16-18X .50

$

$

Not available

232

Husqvarna 601000023

WASHER, .328X.60X.09

$

$

Not available

235

Husqvarna 601001484

WASHER, SP .502X .75X.0605

$

$

Not available

240

Husqvarna 601002322

HEX, ASSY#40-8TW/PBRG
(Superseded to 601002475)

$

$

Not available

243

Husqvarna 601002323

RING, RETEX

$

$

Not available

244

Husqvarna 601001446

WASHER, FLAT.53 X1.00X.063

$

$

Not available

245

Husqvarna 601001741

BEARING, TRUNION

$

$

Not available

246

Husqvarna 601001483

WHEEL, ASSYFRICTION DISC

$27.99

$

In Stock, Qty 9

0

247

Husqvarna 601001374

SCREW, 1/4-20X .63 HHCFT

$

$

Not available

249

Husqvarna 601001790

NUT, 1/4-20 HEX KEPS

$

$

Not available

250

Husqvarna 601001484

WASHER, SP .502X 75X.0605

$

$

Not available

255

Husqvarna 601001479

BEARING & RETAINER, ASSY

$

$

Not available

256

Husqvarna 601000519

SCREW, 5/16-18X .50

$

$

Not available

257

Husqvarna 601000023

WASHER, .328X.60X.09\

$

$

Not available

270

Husqvarna 601001479

BEARING & RETAINER, ASSY

$

$

Not available

271

Husqvarna 601000519

SCREW, 5/16-18X .50

$

$

Not available

275

Husqvarna 601001606

JACK, ASSY#41-36T&7T

$

$

Not available
