ST-8027 - Echo Snow Thrower Chute Assembly, Wheels, Axle Parts Diagram

Snow Thrower

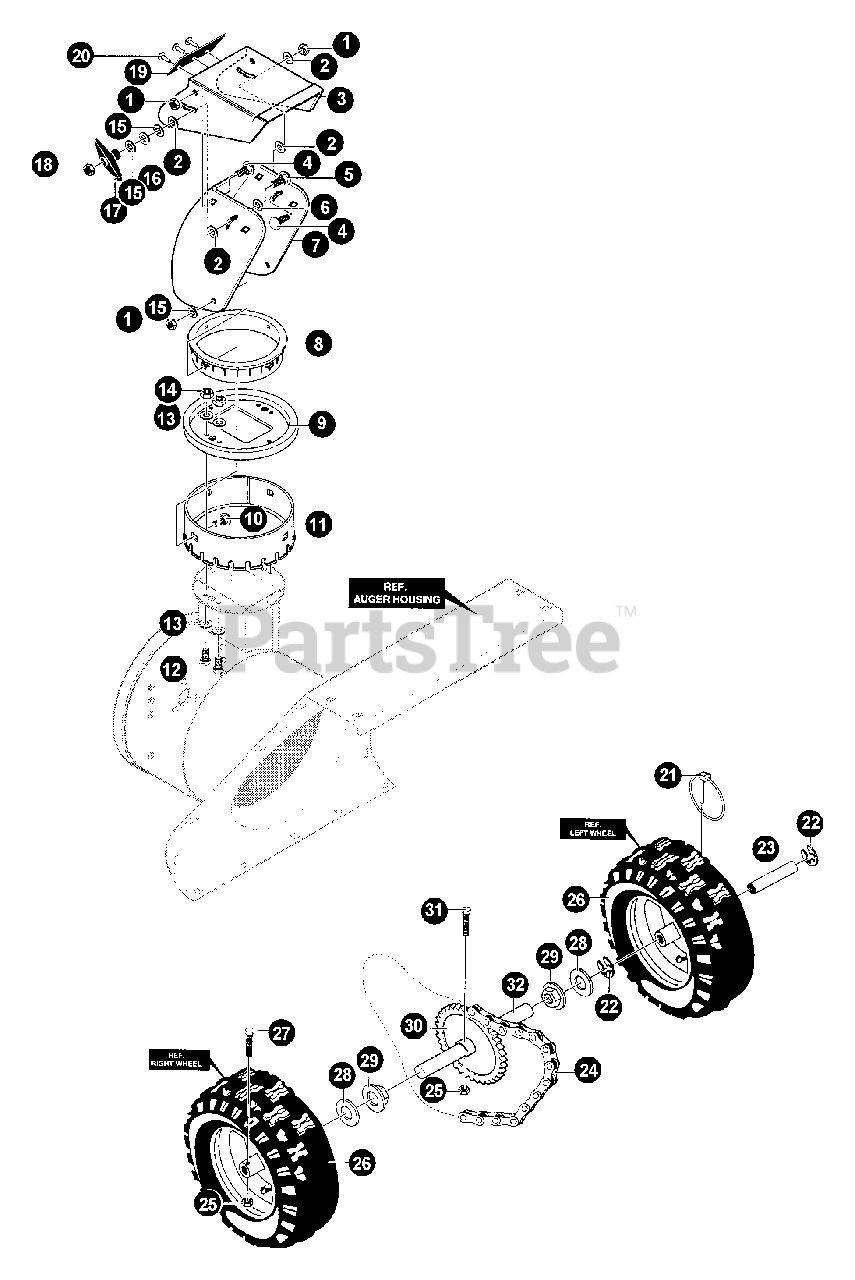

Chute Assembly, Wheels, Axle Parts Diagram

  • Title
1

Echo 14071038

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

2

Echo 14006711

WASHER - PLASTIC

$1.49

$

Usually ships in 2-4 days

0

3

Echo 14004032

CHUTE - UPPER

$73.99

$

In Stock, only 1 left!

0

4

Echo 14578088

SCREW - 5/16-18 X 3/4"

$1.49

$

Usually ships in 2-4 days

0

5

Echo 14126358

BOLT - 5/16-18 X 1"

$1.99

$

Usually ships in 2-4 days

0

6

Echo 14012021

WASHER - PLASTIC

$0.99

$

Usually ships in 2-4 days

0

7

Echo 14586220

CHUTE - LOWER
(Superseded to Discontinued)

$

$

Not available

8

Echo 14337227

RETAINER, RING INNER
(Superseded to Discontinued)

$

$

Not available

9

Echo 14585214

COLLAR
(Superseded to Discontinued)

$

$

Not available

10

Echo 14586280

BOLT, 5/16-18X1.00 CARRLN
(Superseded to Discontinued)

$

$

Not available

11

Echo 14585193

RETAINER, RING OUTER
(Superseded to Discontinued)

$

$

Not available

12

Echo 14180020

SCREW - 1/4-20

$1.49

$

Usually ships in 2-4 days

0

13

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

14

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

15

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

16

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

17

Echo 14013527

KNOB, T 2 BLADE W/5/16-18 NUT

$2.99

$

In Stock, only 1 left!

0

18

Echo 14120376

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

19

Echo 14003194

SKIRT, CHUTE EXTENSION

$13.99

$

Usually ships in 2-4 days

0

20

Echo 14328683

RIVET - POP

$1.49

$

Usually ships in 2-4 days

0

21

Echo 14073842

PIN, KLIK

$6.99

$

Usually ships in 2-4 days

0

22

Echo 14000239

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

23

Echo 14585591

BUSHING, WHEEL 4" LG

$1.99

$

Usually ships in 2-4 days

0

24

Echo 14583013

CHAIN, ROLLER 420X41
(Superseded to Discontinued)

$

$

Not available

25

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

26

Echo 14583384

WHEEL ASSY
(Superseded to Discontinued)

$

$

Not available

27

Echo 14577015

SCREW - 1/4-20 X 1.75"

$0.99

$

Usually ships in 2-4 days

0

28

Echo 14073840

WASHER
(Superseded to Discontinued)

$

$

Not available

29

Echo 14581730

BEARING, FLANGE

$4.99

$

Usually ships in 2-4 days

0

30

Echo 14583007

SPROCKET, HUB

$7.49

$

Usually ships in 2-4 days

0

31

Echo 14073839

SCREW - 1/4-20 X 2.25"
(Superseded to Discontinued)

$

$

Not available

32

Echo 14583017

SHAFT, AXLE 6.15

$27.99

$

Usually ships in 2-4 days

0
