ST 7526 (626752x16B) - Frontier 26" Snow Thrower (2007) Handle Assembly Parts Diagram

26" Snow Thrower

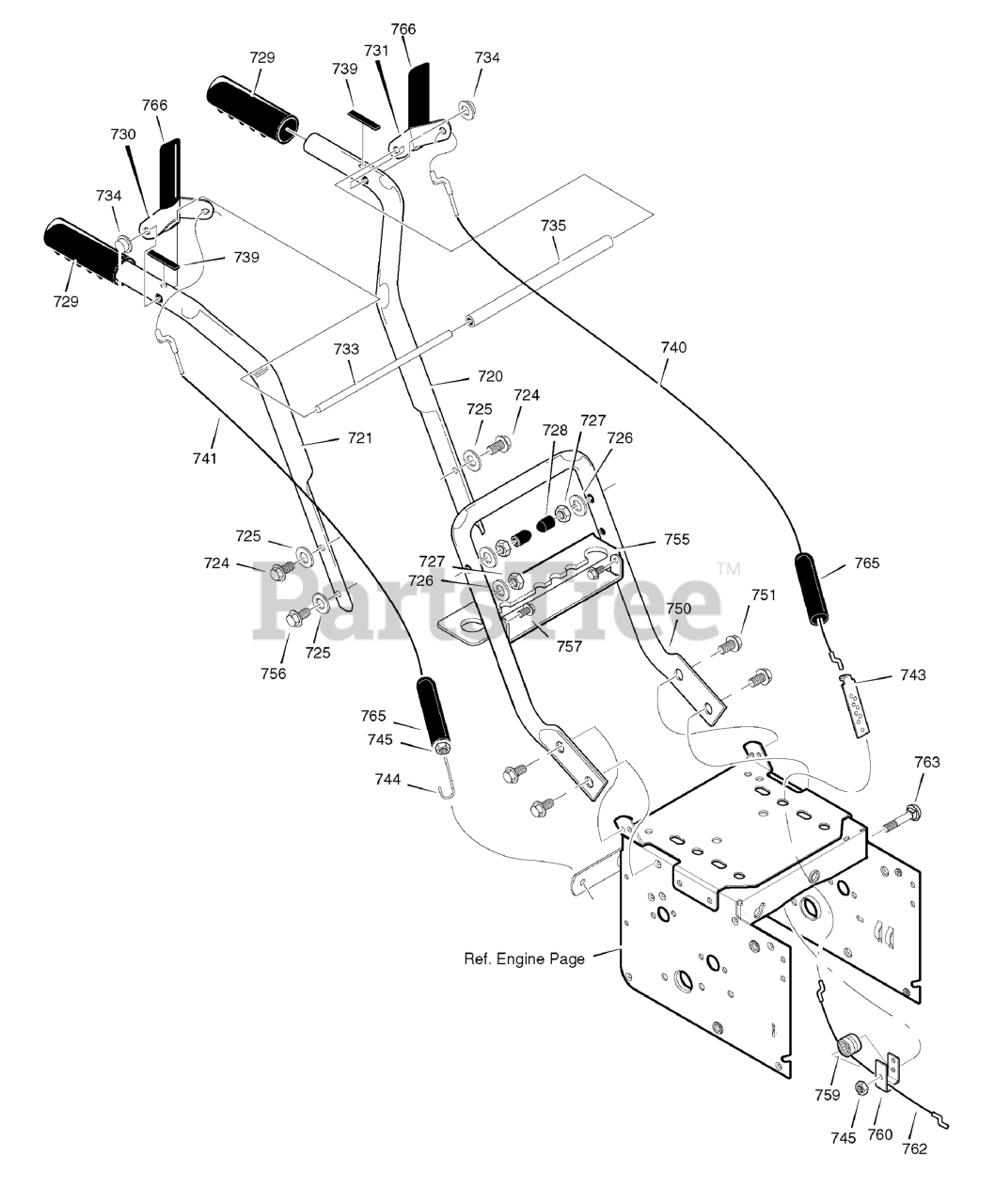

Handle Assembly Parts Diagram

  • Title
720

Murray MT1501205E701MA

HANDLE, Upper L.H.
(Superseded to 1501205E701MA)

$

$

Not available

721

Murray MT1501206E701MA

HANDLE, Upper R.H.
(Superseded to 1740573ASM)

$58.99

$

Usually ships in 2-12 days

0

724

Murray MT11234MA

SCREW, 5/16-18 x 2-3/4
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

725

Murray MT71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

726

Murray MT71060MA

WASHER, Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

727

Murray MT15X144MA

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Murray MT11261MA

STOP, Red Plastic
(Superseded to 11261MA)

$4.49

$

Usually ships in 2-12 days

0

729

Murray MT337399MA

GRIP, Finger Handle
(Superseded to 337399MA)

$5.49

$

Usually ships in 2-12 days

0

730

Murray MT337816E701MA

LEVER ASSEMBLY, Clutch Drive R.H.
(Superseded to 1740700AYP)

$39.99

$

Usually ships in 2-12 days

0

731

Murray MT337815E701MA

LEVER ASSEMBLY, Clutch Drive L.H.
(Superseded to 1740699AYP)

$39.99

$

In Stock, only 1 left!

0

733

Murray MT337381MA

ROD, Pivot Clutch
(Superseded to 337381MA)

$50.99

$

In Stock, only 1 left!

0

734

Murray MT761105MA

NUT, Push-Pal
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

735

Murray MT337373MA

SPACER, Handle
(Superseded to 337373MA)

$8.49

$

Usually ships in 2-12 days

0

739

Murray MT4049MA

BUMPER, Rectangular
(Superseded to 4049MA)

$

$

Not available

740

Murray MT1501123MA

CABLE, Clutch, 28.44
(Superseded to 1501123MA)

$12.99

$

In Stock, Qty 20+

0

741

Murray MT761872MA

CABLE, Auger Clutch
(Superseded to 761872MA)

$15.99

$

In Stock, Qty 10

0

743

Murray MT313441MA

BRACKET, Cable Adjuster
(Superseded to 313441MA)

$

$

Not available

744

Murray MT1673MA

SPRING, Auger Clutch
(Superseded to 1673MA)

$8.99

$

In Stock, Qty 13

0

745

Murray MT15X145MA

NUT, 1/4 - 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

750

Murray MT339541E701MA

HANDLE, Lower
(Superseded to 1740701ASM)

$140.99

$

Usually ships in 2-12 days

0

751

Murray MT25X021MA

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

755

Murray MT337407E701MA

BRACKET, Gear Selector
(Superseded to 337407E701MA)

$23.99

$

Usually ships in 2-12 days

0

756

Murray MT6751MA

SCREW, 5/16-18 x 2
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

757

Murray MT310169MA

SCREW, 1/4 - 20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

759

Murray MT579860MA

CABLE SPOOL, Auger Clutch
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 10

0

760

Murray MT1501059YZMA

BRACKET, Cable Spool
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

762

Murray MT1501122MA

CABLE, Lower Drive, 12
(Superseded to 1501122MA)

$8.49

$

In Stock, Qty 20+

0

763

Murray MT001798MA

BOLT, Hex, 1/4 - 20 x 1-1/2
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

765

Murray MT308146MA

BOOT, Clutch Spring
(Superseded to 308146MA)

$6.49

$

In Stock, only 3 left!

0

766

Murray MT337380MA

GRIP
(Superseded to 337380MA)

$8.49

$

In Stock, only 2 left!

0
