ST 7526 (626752x16B) - Frontier 26" Snow Thrower (2007) Chute Rod Parts Diagram

26" Snow Thrower

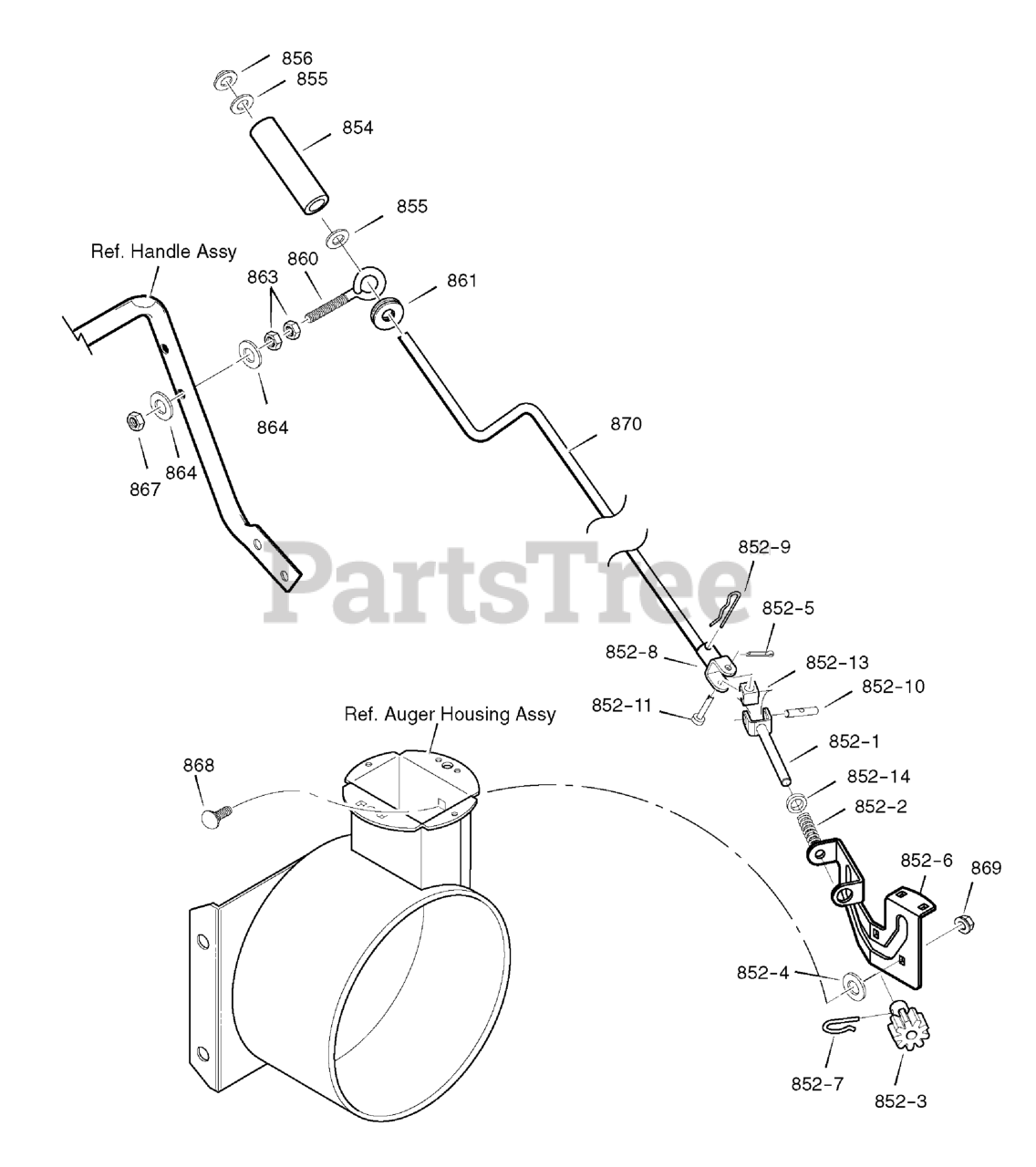

Chute Rod Parts Diagram

  • Title
852-1

Murray MT1501533YZMA

ASSEMBLY, Yoke & Rod
(Superseded to 1501533YZMA)

$11.99

$

In Stock, only 1 left!

0

852-2

Murray MT164X37MA

SPRING, Compression
(Superseded to 164X37MA)

$9.49

$

Usually ships in 2-12 days

0

852-3

Murray MT1501067MA

GEAR, Chute Rotation
(Superseded to 1501067MA)

$17.99

$

Usually ships in 2-12 days

0

852-4

Murray MT17X170MA

WASHER
(Superseded to 17X170MA)

$

$

Not available

852-5

Murray MT579493MA

PIN, Cotter
(Superseded to 579493MA)

$4.49

$

In Stock, only 1 left!

0

852-6

Murray MT1501306E701MA

BRACKET, Gear
(Superseded to 1501306E701MA)

$37.99

$

In Stock, only 1 left!

0

852-7

Murray MT1501293MA

PIN, Hair
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

852-8

Murray MT1501075YZMA

ASSEMBLY, Yoke Adapter
(Superseded to 1501075YZMA)

$10.99

$

Usually ships in 2-12 days

0

852-9

Murray MT711682MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

852-10

Murray MT578060MA

PIN, Universal Joint
(Superseded to 578060MA)

$7.49

$

Usually ships in 2-12 days

0

852-11

Murray MT578309MA

PIN, Clevis
(Superseded to 578309MA)

$5.49

$

In Stock, Qty 6

0

852-13

Murray MT578063MA

HOUSING, Universal
(Superseded to 578063MA)

$5.49

$

In Stock, only 2 left!

0

852-14

$

$

Currently unavailable

854

Murray MT51443MA

KNOB, Sleeve
(Superseded to 51443MA)

$7.49

$

Usually ships in 2-12 days

0

855

Murray MT309312MA

WASHER, Flat
(Superseded to 309312MA)

$4.49

$

In Stock, only 3 left!

0

856

Murray MT73664MA

NUT, Push-Pal, 3/8
(Superseded to 73664MA)

$4.99

$

In Stock, only 3 left!

0

860

Murray MT1501456MA

EYE BOLT, 3/8 - 16 x 6
(Superseded to 1501456MA)

$9.49

$

Usually ships in 2-12 days

0

861

Murray MT148MA

GROMMET, Eye Bolt
(Superseded to 148MA)

$

$

Not available

863

Murray MT71045MA

NUT, Hex Jam, 3/8 - 16
(Superseded to 71045MA)

$4.99

$

Usually ships in 2-12 days

0

864

Murray MT71072MA

WASHER, Flat
(Superseded to 71072MA)

$4.49

$

In Stock, only 4 left!

0

867

Murray MT71046MA

NUT, Hex Nylock, 3/8 - 16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

868

Murray MT002X98MA

BOLT, Cariage 1/4 - 20 x 1
(Superseded to 703584)

$3.99

$

In Stock, Qty 9

0

869

Murray MT15X145MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

870

Murray MT1501074YZMA

CRANK ASSEMBLY, Chute
(Superseded to 703120)

$29.99

$

In Stock, only 2 left!

0
