ST 730 SDR (UT-20637-R) - Homelite String Trimmer Head, Boom & Handles (Rev. A) Parts Diagram

String Trimmer

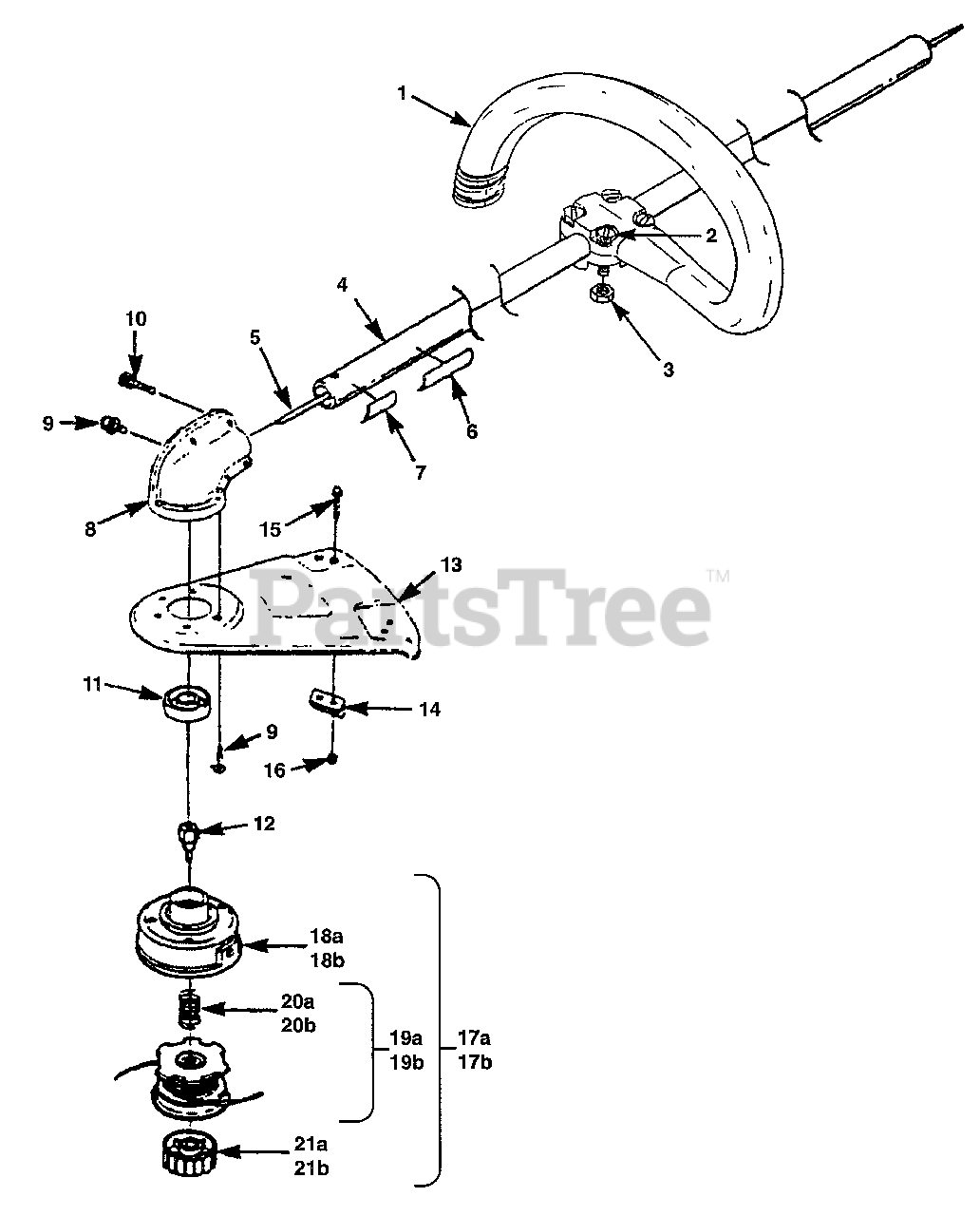

Head, Boom & Handles (Rev. A) Parts Diagram

  • Title
1

Homelite A07137

FRONT HANDLE ("G")
(Superseded to A07137A)

$

$

Not available

2

Homelite 82605

SCREW-Hex Hd. (10-24 X 1")

$

$

Not available

3

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

4

Homelite A04379A

HOUSING-Drive Shaft
(Superseded to UP04337)

$89.99

$

Usually ships in 3-7 days

0

5

Homelite 98818

SHAFT-Flexible

$

$

Not available

6

Homelite 04458

DECAL-Starting Inst.
(Superseded to UP04130)

$

$

Not available

7

Homelite 04679

DECAL-Warning
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite A04836C

GEAR HEAD
(Superseded to UP06970)

$

$

Not available

9

Homelite 82459

SCREW-Hex Hd. (10-24 X 1/2")

$

$

Not available

10

Homelite 82593

SCREW-Hex Hd. (10-24 X 5/8")

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 04168A

WASHER-Flanged
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

12

Homelite 04355

ADAPTOR-Shaft

$19.99

$

Usually ships in 3-7 days

0

13

Homelite A04683A

GRASS DEFLECTOR KIT

$

$

Not available

14

Homelite 00074

BLADE-Cut-Off
(Superseded to UP04538)

$

$

Not available

15

Homelite 80869

SCREW-Machine Hex Hd. (10-24 X 3/8")

$

$

Not available

16

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

17A

Homelite DA03001A

STRINGHEAD COMPLETE (.080" Line)
(Superseded to UP04408A)

$

$

Not available

18A

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

19A

Homelite DA98912E

SPOOL & STRING & SPRING(.080" Line)
(Superseded to 308044002)

$

$

Not available

20A

Homelite 06713

SPRING-Compression

$1.99

$

In Stock, only 3 left!

0

21A

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available

17B

Homelite DA04591A

STRINGHEAD COMPLETE (.095" Line)
(Superseded to DA04591AA)

Note: Model d830sd, st730sdr only

$103.99

$

In Stock, only 1 left!

0

18B

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

Note: Model d830sd, st730sdr only

$

$

Not available

19B

Homelite DA02598C

SPOOL & STRING & SPRING (.095" Line)
(Superseded to UP00147)

Note: Model d830sd, st730sdr only

$103.99

$

In Stock, only 1 left!

0

20B

Homelite 06713

SPRING-Compression

Note: Model d830sd, st730sdr only

$1.99

$

In Stock, only 3 left!

0

21B

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

Note: Model d830sd, st730sdr only

$

$

Not available
