ST 725 (UT-15178) - Homelite String Trimmer Blower Attachment Parts Diagram

String Trimmer

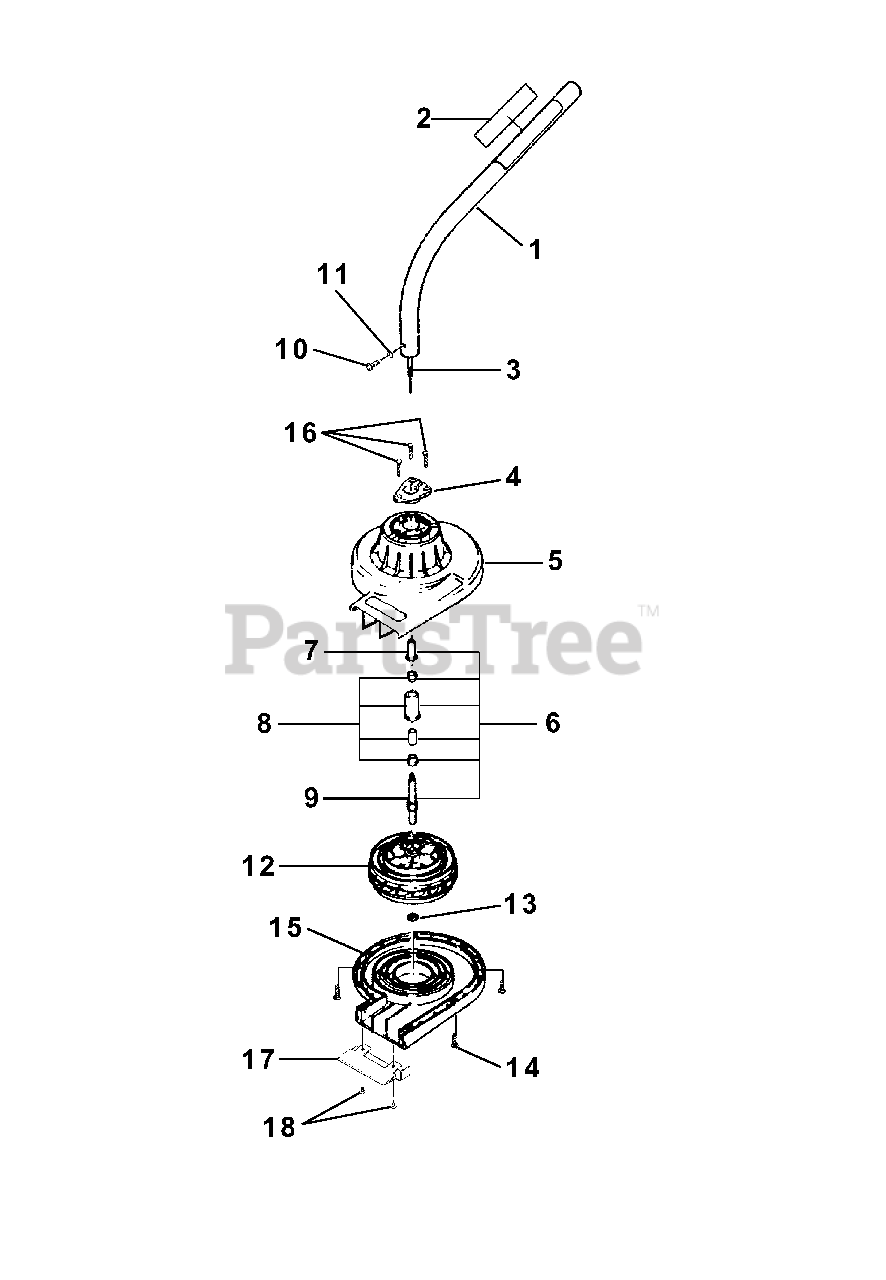

Blower Attachment Parts Diagram

  • Title

1

Homelite UP03920

DRIVESHAFT HOUSING
(Superseded to UP03920A)

Note: Includes items 2-3

$

$

Not available

2

Homelite 07852

DECAL-Warning
(Superseded to UP07741)

$

$

Not available

3

Homelite A07844

CABLE-Flex

$

$

Not available

4

Homelite GM235205

CLAMP

$

$

Not available

5

Homelite A07932

UPPER HOUSING
(Superseded to UP06874)

$

$

Not available

6

Homelite A07933A

BEARING HOUSING
(Superseded to UP06875)

Note: Includes items 7-11

$

$

Not available

7

Homelite UP04713

ADAPTER-Arbor
(Superseded to GM166501)

$

$

Not available

8

Homelite GM160305

BUSING
(Superseded to UP06876)

$

$

Not available

9

Homelite UP04699

SHAFT-Arbor
(Superseded to 08467)

$

$

Not available

10

Homelite UP04112

SCREW (10-24 x .312")
(Superseded to GM011401)

Note: Torque Specs 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

11

Homelite UP04123

WASHER, Lock (#10)
(Superseded to GM041101)

$

$

Not available

12

Homelite UP04714

IMPELLER
(Superseded to GM235203)

$

$

Not available

13

Homelite UP04701

CLIP
(Superseded to 08468)

$

$

Not available

14

Homelite UP04141

SCREW, Pan Hd. (8-16 x .750)

Note: Torque Specs 35-45 In/Lbs; 4.0-5.1 Nm

$

$

Currently unavailable

15

Homelite UP04697

LOWER HOUSING
(Superseded to 07839)

$

$

Not available

16

Homelite UP04250

SCREW-Thread Forming (8-16 x 1")
(Superseded to 82627)

Note: Torque Specs 35-45 In/Lbs; 4.0-5.1 Nm

$

$

Not available

17

Homelite GM286903

GUARD-Lower Housing

$

$

Not available

18

Homelite GM011108

SCREW (10-16 x 1/4")

Note: Torque Specs 5-20 In/Lbs; 56-2.3 Nm

$

$

Not available
