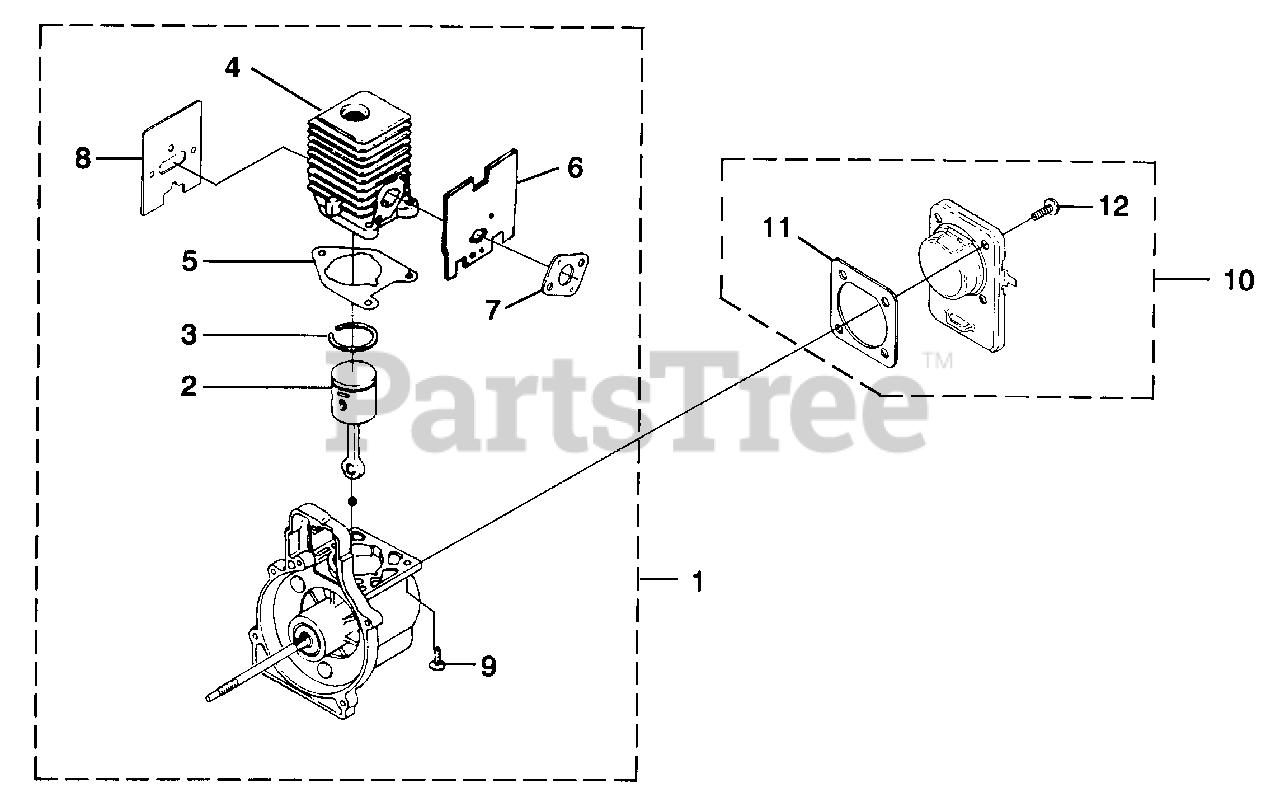

ST 725 SC (UT-15153) - Homelite String Trimmer Engine Internal Parts Diagram

String Trimmer

Engine Internal Parts Diagram

  • Title

1

Homelite UP02994

SHORT BLOCK
(Superseded to 984525001)

Note: (Non-Clutch; Incl. items 2 - 9)

$225.99

$

In Stock, only 1 left!

0

Homelite UP02995

SHORT BLOCK
(Superseded to 984561001)

Note: (Clutch; Incl. items 2 - 9)

$166.99

$

In Stock, only 1 left!

0

2

Homelite UP00768

PISTON & ROD ASSY.
(Superseded to UP00768A)

Note: (Incl. item 3)

$

$

Not available

3

Homelite PS01359

RING-Piston
(Superseded to 678001002)

$

$

Not available

4

Homelite A07145

CYLINDER ASSY.
(Superseded to UP07145)

Note: (Incl. items 5 - 8)

$74.99

$

In Stock, only 1 left!

0

5

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

6

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

7

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$

$

Not available

8

Homelite 09343

GASKET-Muffler

$

$

Not available

9

Homelite 880841

SCREW-Sems (12-24 X 3/4")
(Superseded to UP04345)

Note: (Torque Specs 55-65 In/Lbs 6.2-7.3 Nm, Red 262 Loctite Required)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite UP00019

CRANKCASE COVER ASSEMBLY
(Superseded to UP00019A)

Note: (Incl. items 11 & 12)

$

$

Not available

11

Homelite 08661

GASKET-Crankcase Cover

Note: (Also included w/short block)

$

$

Not available

12

Homelite PS01565

SCREW-Sems (10-24 X 1/2")

Note: (Torque Specs 35-45 In/Lbs 4.0-5.1 Nm, Red 262 Loctite Required)

$2.49

$

Usually ships in 3-7 days

0
