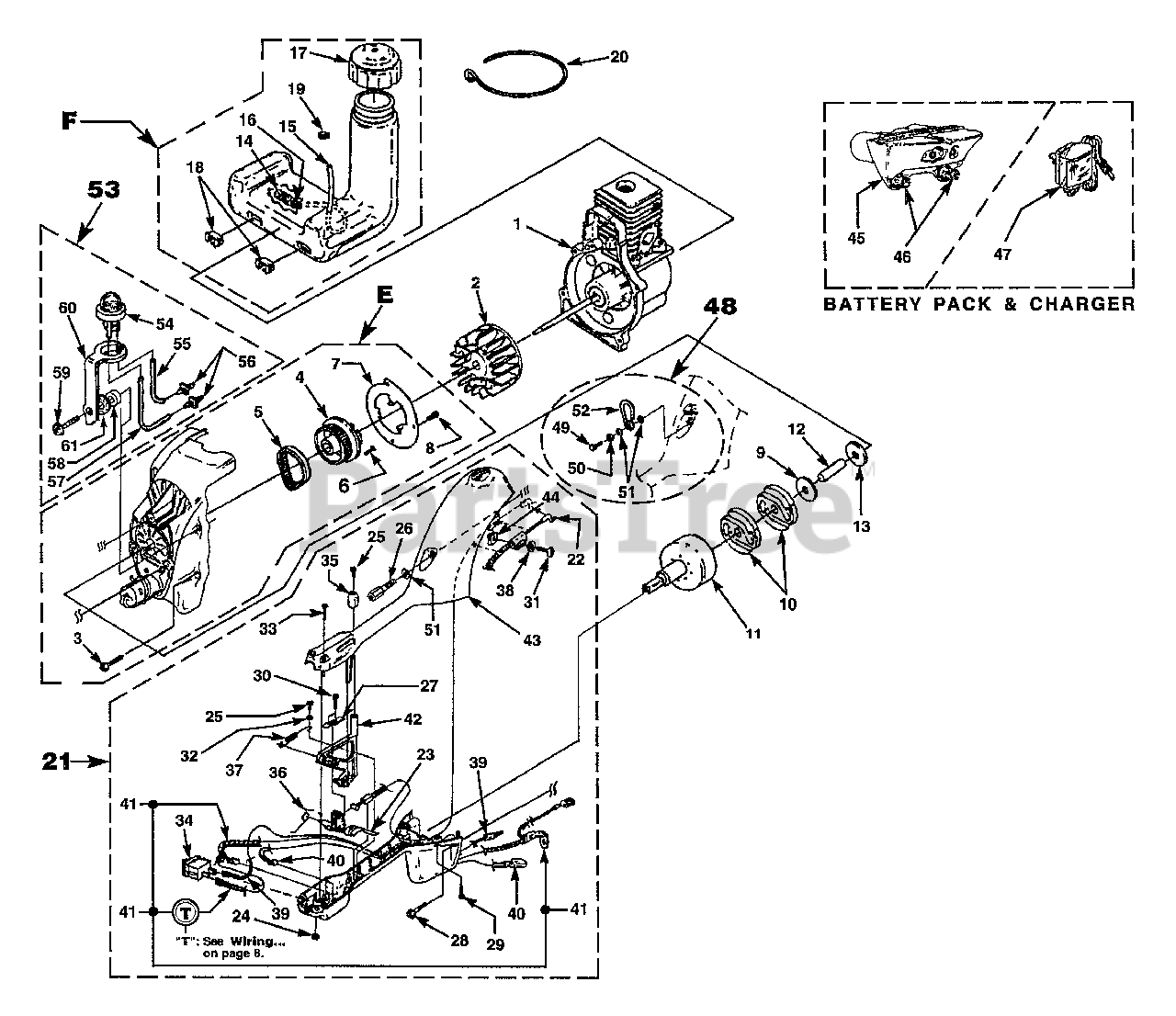

ST 725 CEA (UT-20644-R) - Homelite String Trimmer Clutch, Starter, Engine Peripherals Parts Diagram

String Trimmer

Clutch, Starter, Engine Peripherals Parts Diagram

  • Title

1

SHORT BLOCK

Note: See "Engine" illustration and parts list items 1-10 for parts breakdown.

$

$

Not available

2

Homelite A041581

ROTOR w/Starter Pawls

$

$

Currently unavailable

E

Homelite A07168A

COMPLETE STARTER ASSEMBLY

$

$

Currently unavailable

3

Homelite 82538

SCREW-Thread Form. (10-24 X 3/4")

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 06533

PULLEY-Starter

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 06534

BELT-Starter

$6.49

$

Usually ships in 3-7 days

0

6

Homelite 82540

SCREW- Thread Forming (8-32 X 1")

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 06723

BAFFLE
(Superseded to 06723A)

$4.49

$

Usually ships in 3-7 days

0

8

Homelite 07183

SCREW-Plastite (8-16 1/2")
(Superseded to UP04635)

$

$

Not available

9

Homelite 98929A

WASHER-Flat
(Superseded to 638090001)

$1.99

$

In Stock, only 4 left!

0

10

Homelite 00242

CLUTCH

$

$

Not available

11

Homelite A03485A

CONNECTOR & DRUM
(Superseded to UP04133)

$41.99

$

Usually ships in 3-7 days

0

12

Homelite 035662A

SPACER
(Superseded to PS04300)

$

$

Not available

13

Homelite 95479A

WASHER

$

$

Not available

F

Homelite A07170A

FUEL TANK COMPLETE
(Superseded to A07170F)

$

$

Not available

14

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

15

Homelite 9477220

TUBING-Rubber (5")
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

16

Homelite 98268

CLAMP-Wire
(Superseded to 690765001)

$1.99

$

In Stock, Qty 6

0

17

Homelite DA06486

FUEL CAP
(Superseded to UP00106)

$

$

Not available

18

Homelite 98792

BUMPER-Rubber

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 02067

FITTING-In Line Fuel

$

$

Not available

20

Homelite 07183

SUPPORT WIRE
(Superseded to UP04635)

$

$

Not available

21

Homelite A07177A

CLUTCH HOUSING & CONTROL HANDLE

$

$

Not available

22

Homelite 06548A

CABLE-Throttle
(Superseded to UP05578)

$22.99

$

Usually ships in 3-7 days

0

23

Homelite 06547

TRIGGER

$4.99

$

Usually ships in 3-7 days

0

24

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

25

Homelite 82401

SCREW-Thread Forming (#4-20 X 1/4")

$

$

Not available

26

Homelite 07517

SCREW-Adaptor
(Superseded to 08011)

Note: (Also included with #48)

$

$

Not available

27

Homelite 06912

RETAINER
(Superseded to UP06912A)

$51.99

$

Usually ships in 3-7 days

0

28

Homelite 82556

SCREW-Torx Truss Hd. (#10-24 X 1 1/4")

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 82563

SCREW-Thread Forming (#10-14 X 1/2")

$1.99

$

In Stock, Qty 6

0

30

Homelite 82564

SCREW-Thread Forming (#6-20 X 1/2")
(Superseded to UP07285)

$

$

Not available

31

Homelite 82612

SCREW-Socket Head

$

$

Not available

32

Homelite 84025

WASHER

$

$

Not available

33

Homelite 82606

SCREW-Truss Hd. (#10-24 X 1 7/8")

$

$

Not available

34

Homelite 07919

SWITCH-Rocker (Domestic)

$

$

Not available

Homelite 07920

SWITCH-Rocker (International)
(Superseded to UP04197)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 06913

KNOB-Starter Lever

$

$

Not available

36

Homelite 07071

SPRING-Torsion

$

$

Not available

37

Homelite 07075A

SPRING-Extension

$

$

Not available

38

Homelite 841031

WASHER-Flat

$

$

Not available

39

Homelite A07190A

LEAD-Electrical

$

$

Currently unavailable

40

Homelite A06725

LEAD-Electrical

$7.99

$

Usually ships in 3-7 days

0

41

Homelite A06724B

LEAD-Electrical

$

$

Currently unavailable

42

Homelite A07020A

STARTER LEVER w/BAR

$

$

Currently unavailable

43

Homelite 065381

CLUTCH HOUSING (Top)

$

$

Currently unavailable

44

Homelite 81289

NUT-Tinnerman

$

$

Not available

45

Homelite DA06965

BATTERY PACK
(Superseded to DA06965A)

$

$

Not available

46

Homelite A06971

KNOB-Battery Pack

$

$

Not available

47

Homelite D06550

CHARGER-Battery Pack

$55.99

$

Usually ships in 3-7 days

0

48

Homelite A07560

HANGER KIT

Note: (Also includes #26)

$

$

Not available

49

Homelite 80648

SCREW

$

$

Not available

50

Homelite 83046

WASHER-Lock

$

$

Not available

51

Homelite 84003

WASHER

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 07516

HANGER

$4.99

$

Usually ships in 3-7 days

0

53

Homelite A07927

START ASSIST BUTTON KIT
(Superseded to A07927A)

$

$

Not available

54

Homelite 07916

BUTTON-Start Assist
(Superseded to A07927A)

$

$

Not available

55

Homelite 0143908

LINE-Fuel (2.0") (5,0cm)

$2.99

$

Usually ships in 3-7 days

0

56

Homelite 02067

FITTING-Fuel Line

$

$

Not available

57

Homelite 0143910

LINE-Fuel (2.5") (6,5cm)

$1.99

$

In Stock, Qty 5

0

58

Homelite 07915

SPACER
(Superseded to A07927A)

$

$

Not available

59

Homelite 82549

SCREW- (10-24 x 1.00")
(Superseded to 82507)

$

$

Not available

60

Homelite 07913

BRACKET
(Superseded to A07927A)

$

$

Not available

61

Homelite 08218

WASHER-External Lock

$

$

Not available
