ST 724 - Husqvarna 24" Snow Blower (1997-01) Handle Assembly Parts Diagram

24" Snow Blower

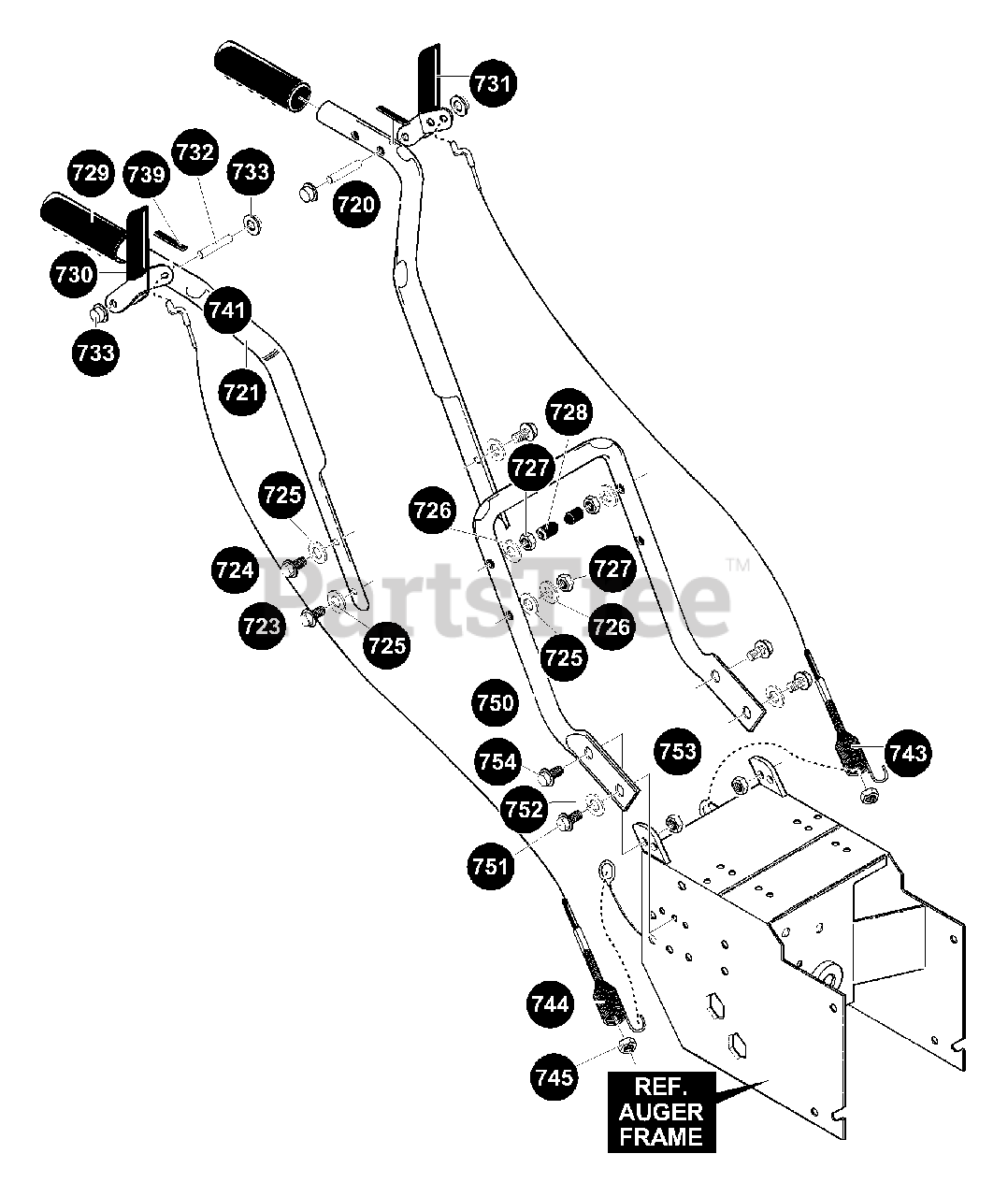

Handle Assembly Parts Diagram

  • Title

720

Husqvarna 601001542

HANDLE, UPPER LH

$

$

Not available

721

Husqvarna 601001543

HANDLE, UPPER RH

$

$

Not available

723

Husqvarna 601001555

SCREW, 3/8-16X2.00

$

$

Not available

724

Husqvarna 601001544

SCREW, 3/8-16X3.00

$

$

Not available

725

Husqvarna 601000020

WASHER, FLAT .406X .81X.065

$

$

Not available

726

Husqvarna 601000015

WASHER, .393X.68X.10

$

$

Not available

727

Husqvarna 601000060

NUT, 3/8-16
(Superseded to 601002407)

$

$

Not available

728

Husqvarna 601001545

STOP, PLASTIC

$

$

Not available

729

Husqvarna 601001546

GRIP, HANDLE

$

$

Not available

730

Husqvarna 601002044

HANDLE-CLUTCH

$

$

Not available

731

Husqvarna 601002045

HANDLE, ASSY CL LH

$

$

Not available

732

Husqvarna 601001549

PIN, PIVOT

$

$

Not available

733

Husqvarna 601000516

NUT, PUSH ON CAP

$

$

Not available

739

Husqvarna 601001550

BUMPER, RECT

$

$

Not available

741

Husqvarna 601001551

CABLE, CLUTCH

$

$

Not available

743

Husqvarna 601001552

SPRING, TENSION

$

$

Not available

744

Husqvarna 601001553

SPRING, AUGER CLUTCH

$

$

Not available

745

Husqvarna 601000062

NUT, 1/4-20 RGHXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

750

Husqvarna 601001554

HANDLE, LOWER

$

$

Not available

751

Husqvarna 601000519

SCREW, 5/16-18X .50

$

$

Not available

752

Husqvarna 601000023

WASHER

$

$

Not available

753

Husqvarna 601000059

NUT, 5/16-18

$6.99

$

In Stock, only 2 left!

0

754

Husqvarna 601000520

SCREW, 5/16-18X .75

$

$

Not available
