ST 724 - Husqvarna 24" Snow Blower (1997-01) Chute Crank Assembly Parts Diagram

24" Snow Blower

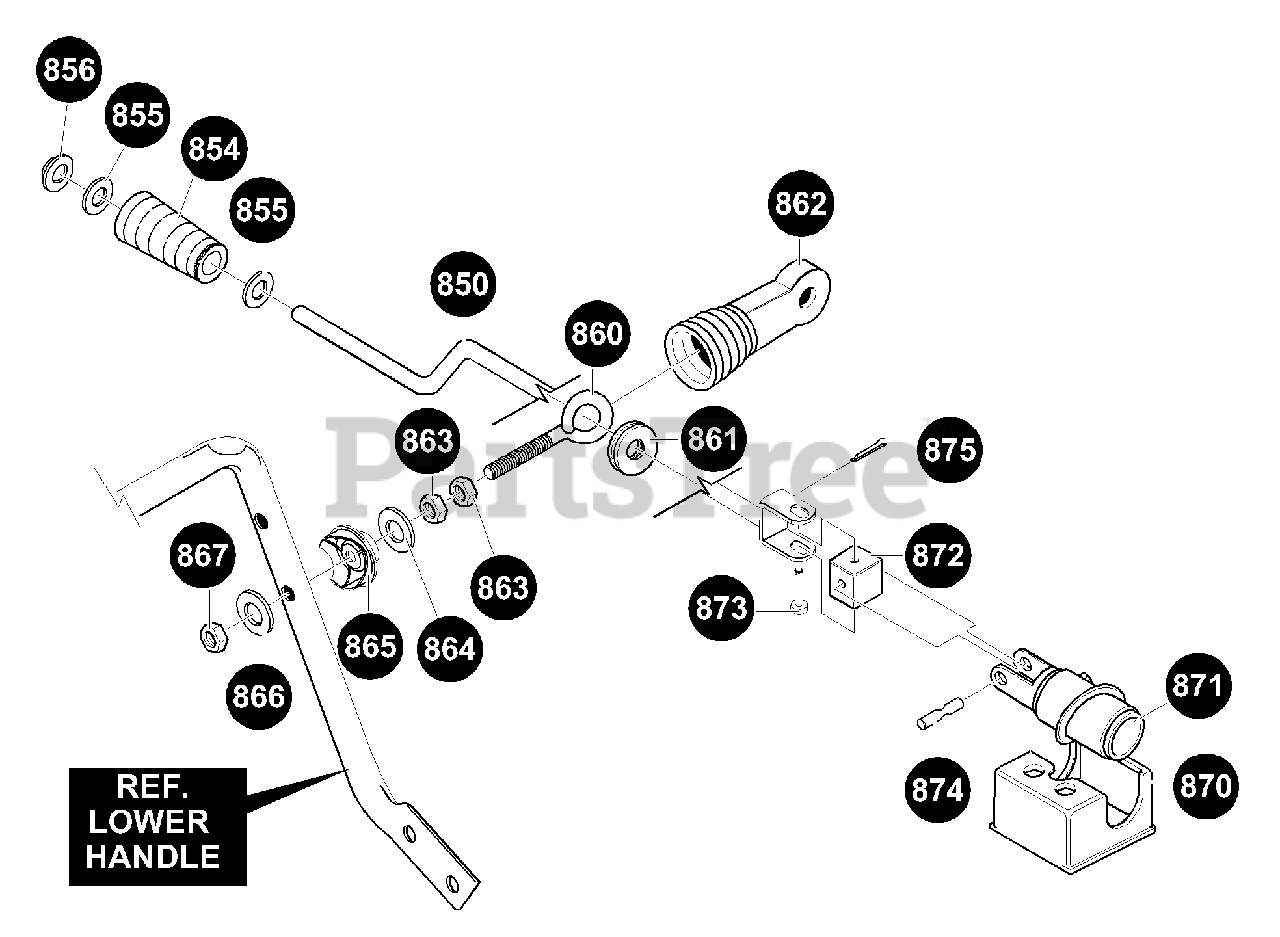

Chute Crank Assembly Parts Diagram

  • Title
850

Husqvarna 601001749

CRANK, ASSY

$

$

Not available

854

Husqvarna 601002048

HANDLE, CHUTE CRANK

$

$

Not available

855

Husqvarna 601002049

FLATWASHER .39X.70X.05

$

$

Not available

856

Husqvarna 601002050

RETAINING RING

$

$

Not available

860

$

$

Not available

861

Husqvarna 601001408

GROMMET, EYE BOLT

$

$

Not available

862

Husqvarna 601002051

BOOT, EYE BOLT

$

$

Not available

863

Husqvarna 601001409

NUT, 3/8-16

$

$

Not available

864

Husqvarna 601000020

WASHER, FLAT .406X .81X.065

$

$

Not available

865

Husqvarna 601002052

BOOT, ADAPTER

$

$

Not available

866

Husqvarna 601000020

WASHER, FLAT .406X .81X.065

$

$

Not available

867

Husqvarna 601000653

NUT, 3/8-16

$

$

Not available

870

Husqvarna 601001830

BRKT, WORM

$

$

Not available

871

Husqvarna 601001831

WORM, GEAR CHUTE

$

$

Not available

872

Husqvarna 601002053

BLOCK, UNIV PIV

$

$

Not available

873

Husqvarna 601002054

PIN, CLEVIS

$

$

Not available

874

Husqvarna 601002055

PIN, UNIV JOINT

$7.49

$

In Stock, only 1 left!

0

875

Husqvarna 601001835

PIN, COTTER

$

$

Not available
