ST 724 - Husqvarna 24" Snow Blower (1996-01) Gear Box Repair Parts Parts Diagram

24" Snow Blower

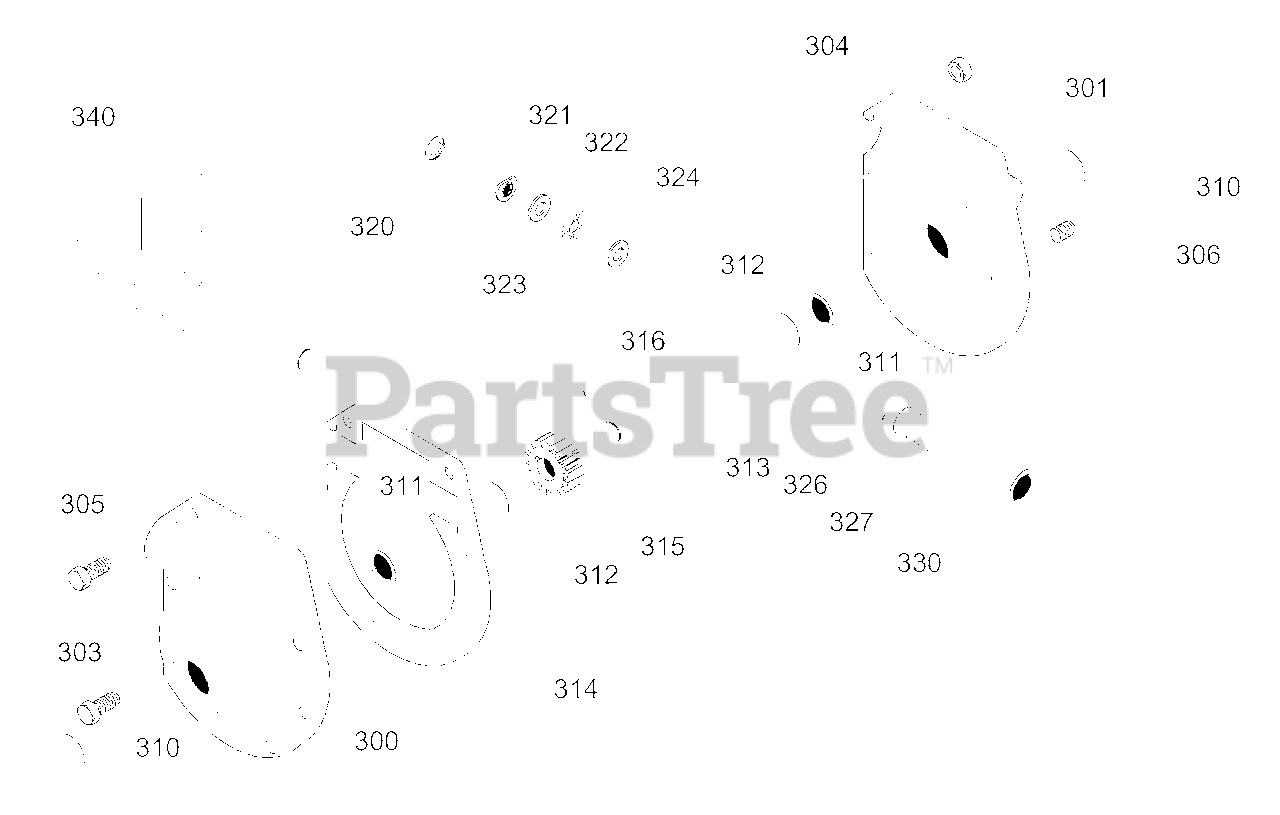

Gear Box Repair Parts Parts Diagram

  • Title
300

Husqvarna 601001487

CASE, GEAR RH

$

$

Not available

301

Husqvarna 601001488

CASE, GEAR LH

$

$

Not available

303

Husqvarna 601001443

SCREW 5/16-24X1.00

$

$

Not available

304

Husqvarna 601000823

NUT, 5/16-24 HEXWDFLLK

$

$

Not available

305

Husqvarna 601001607

SCREW, 5/16-24X1.50

$

$

Not available

306

$

$

Not available

310

Husqvarna 601001491

SEAL, OIL
(Superseded to 601002324)

$14.99

$

Usually ships in 3-10 days

0

311

Husqvarna 601001492

BEARING, SLEEVE

$

$

Not available

312

Husqvarna 601001493

FLATWASHER

$

$

Not available

313

Husqvarna 601001494

SHAFT, AUGER OUTPUT 22"

$

$

Not available

314

Husqvarna 601001495

GASKET, GEAR BOX

$

$

Not available

315

$

$

Not available

316

Husqvarna 601001497

KEY, WOODRUFF #91

$

$

Not available

320

Husqvarna 601001498

RING, QUAD

$

$

Not available

321

Husqvarna 601001499

BEARING, FLANGE

$

$

Not available

322

Husqvarna 601001500

FLATWASHER .752X1.24X.093

$

$

Not available

323

Husqvarna 601001501

BEARING, ROLL

$

$

Not available

324

Husqvarna 601001500

FLATWASHER .752X1.24X.093

$

$

Not available

326

Husqvarna 601001502

KEY, HI-PRO 606

$

$

Not available

327

$

$

Not available

330

Husqvarna 601001504

BRING, SLEV .752IDX.88ODX.755

$

$

Not available

340

Husqvarna 601001505

IMPELLER, ASSY
(Superseded to 601002484)

$

$

Not available
