ST 724 - Husqvarna 24" Snow Blower (1996-01) Discharge Chute Repair Parts Parts Diagram

24" Snow Blower

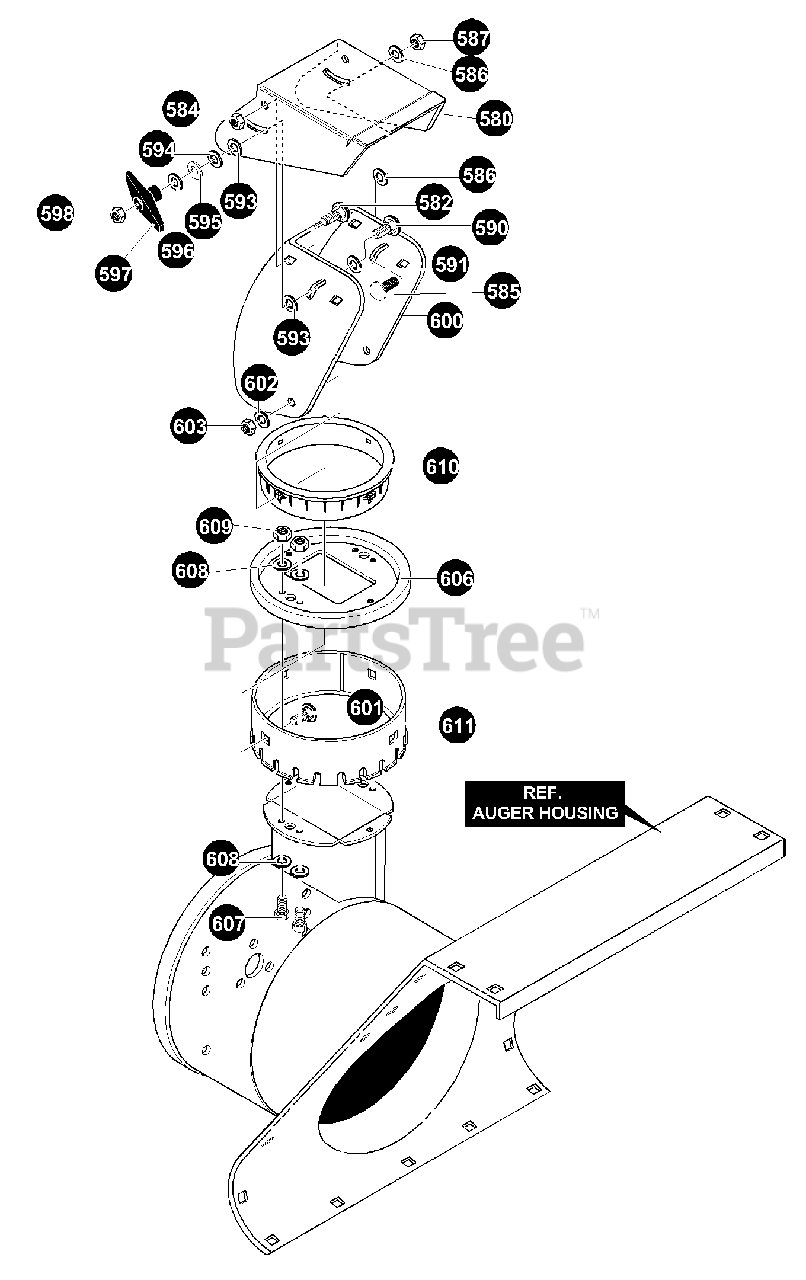

Discharge Chute Repair Parts Parts Diagram

  • Title
580

Husqvarna 601001836

CHUTE, UPPER

$

$

Not available

582

Husqvarna 601001391

SCREW, 5/16-18X.75 SLTRMA

$

$

Not available

584

Husqvarna 601001464

NUT, 5/16-18 HEXNYL

$

$

Not available

585

Husqvarna 601001391

SCREW, 5/16-18X.75

$

$

Not available

586

Husqvarna 601001524

WASHER, PLASTIC .315X.75X.064

$

$

Not available

587

Husqvarna 601001464

NUT, 5/16-18 HEXNYL

$

$

Not available

590

Husqvarna 601000899

BOLT, 5/16-18X1.00 CARR.

$

$

Not available

591

Husqvarna 601000654

FLATWASHER .469X.92X.066

$

$

Not available

593

Husqvarna 601001524

WASHER, PLASTIC .315X.75X.064

$

$

Not available

594

Husqvarna 601000019

FLATWASHER .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

595

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X.09

$

$

Not available

596

Husqvarna 601000019

FLATWASHER .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

597

Husqvarna 601000684

KNOB, T 2 BLADE W/5/16-18 NUT
(Superseded to 601400069)

$14.99

$

In Stock, only 1 left!

0

598

Husqvarna 601000012

NUT 5/16-18 REGHEX

$

$

Not available

600

Husqvarna 601001837

CHUTE, LOWER

$

$

Not available

601

Husqvarna 601000899

BOLT 5/16-18X1.00 CARR.

$

$

Not available

602

Husqvarna 601000019

FLATWASHER .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

603

Husqvarna 601001464

NUT 5/16-18 HEXNYL

$

$

Not available

606

Husqvarna 601001838

COLLAR, CHUTE RECT.

$

$

Not available

607

Husqvarna 601000068

SCREW 1/4-20X.75

$

$

Not available

608

Husqvarna 601000018

FLATWASHER, .281X.63X.065

$

$

Not available

609

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

610

Husqvarna 601001839

RETAINER, RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Husqvarna 601001840

RETAINER, RING OUTER

$29.99

$

In Stock, Qty 20+

0
